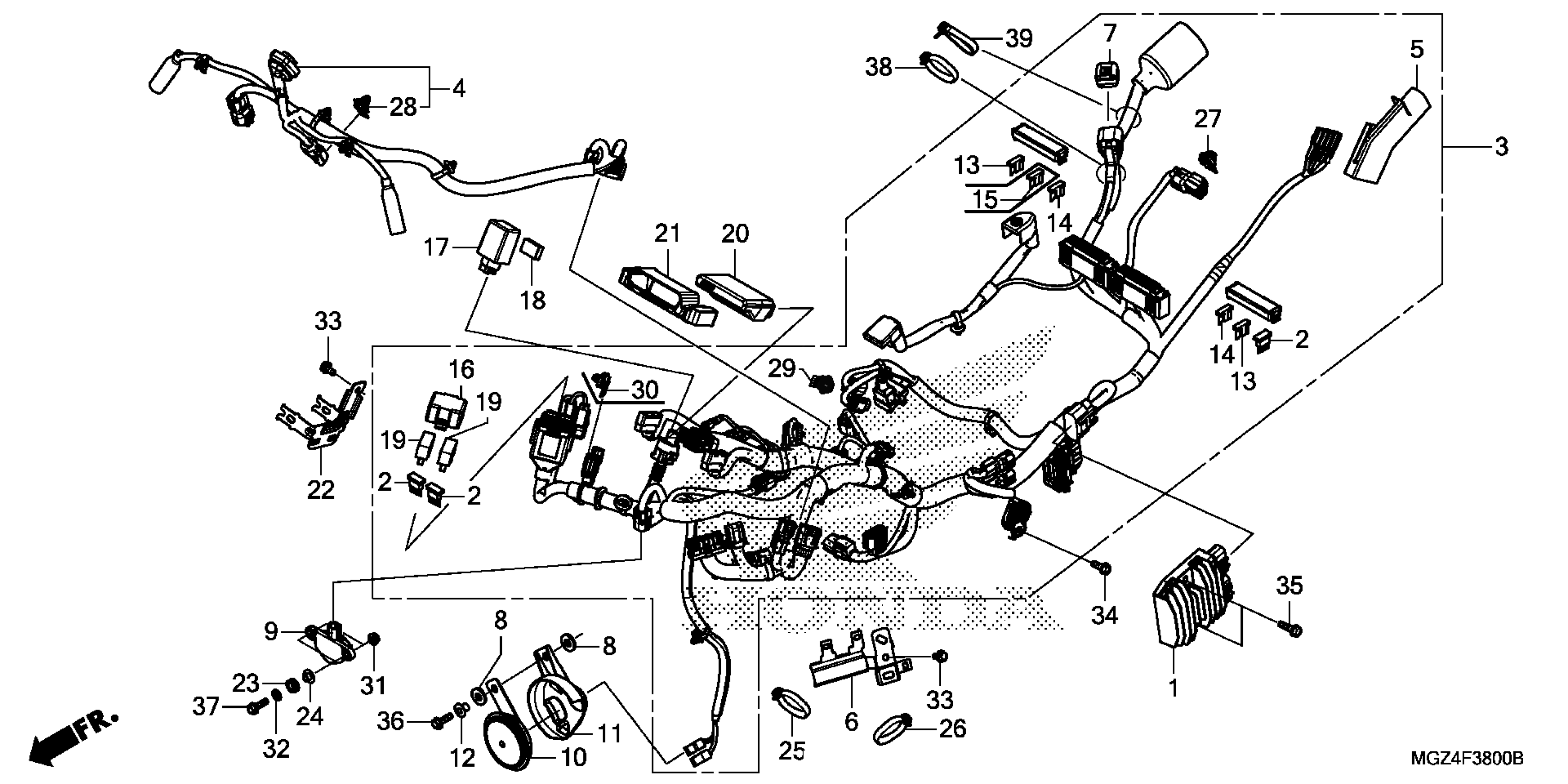

Honda CBR500RA (14) MOTORCYCLE, THA, VIN# MLHPC446-E5100001 TO MLHPC446-E5199999 WIRE HARNESS Diagram

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$172.04

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

WIRE HARNESS

32100-MGZ-C00

$504.65

SUB-HARNESS, FR.

32103-MGZ-J00

$76.99

SUSPENSION, CONNECTOR

32109-MGZ-J41

$22.31

STAY, CONNECTOR

32206-MGZ-J00

$7.22

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.18

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.32

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$138.63

HORN (HIGH)

38110-MGZ-J01

$25.68

HEAT GUARD, HORN

38111-MGZ-J00

$3.87

COLLAR, HORN SETTING

38117-MGZ-J00

$1.60

FUSE, BLADE (7.5A)

38221-SNA-A31

$2.96

FUSE, BLADE (15A)

38221-SNA-A51

$3.44

COVER, RELAY BOX

38281-MGZ-J01

$13.51

RELAY, TURN SIGNAL (MITSUBA)

38301-MEW-921

$44.44

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.87

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

Unavailable

RELAY (MICRO ISO 4P)

38501-MKP-DN1

Unavailable

PGM-FI UNIT This part replaces 38770-MGZ-C02.

38770-MGZ-C03

$359.59

PGM-FI UNIT

38770-MGZ-C03

$359.59

CUSHION, PGM-FI UNIT

38774-MGZ-J00

$3.85

STAY, RELAY BOX

50194-MGZ-J00

$8.72

RUBBER, SIDE COVER

64535-MFJ-D00

$1.79

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.12

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

CLIP, CONNECTOR

91565-S3Y-003

$6.38

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

NUT, FLANGE (6MM)

94050-06080

$0.60

WASHER, PLAIN (6MM)

94103-06800

$0.72

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.16

BOLT, FLANGE (6X14)

95701-06014-08

$1.50

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.63

BOLT, FLANGE (6X20)

95701-06020-07

$1.50

BOLT, FLANGE (6X22)

95701-06022-08

$1.66

BAND, WIRE (BLACK)

90652-KT1-771

$4.28
