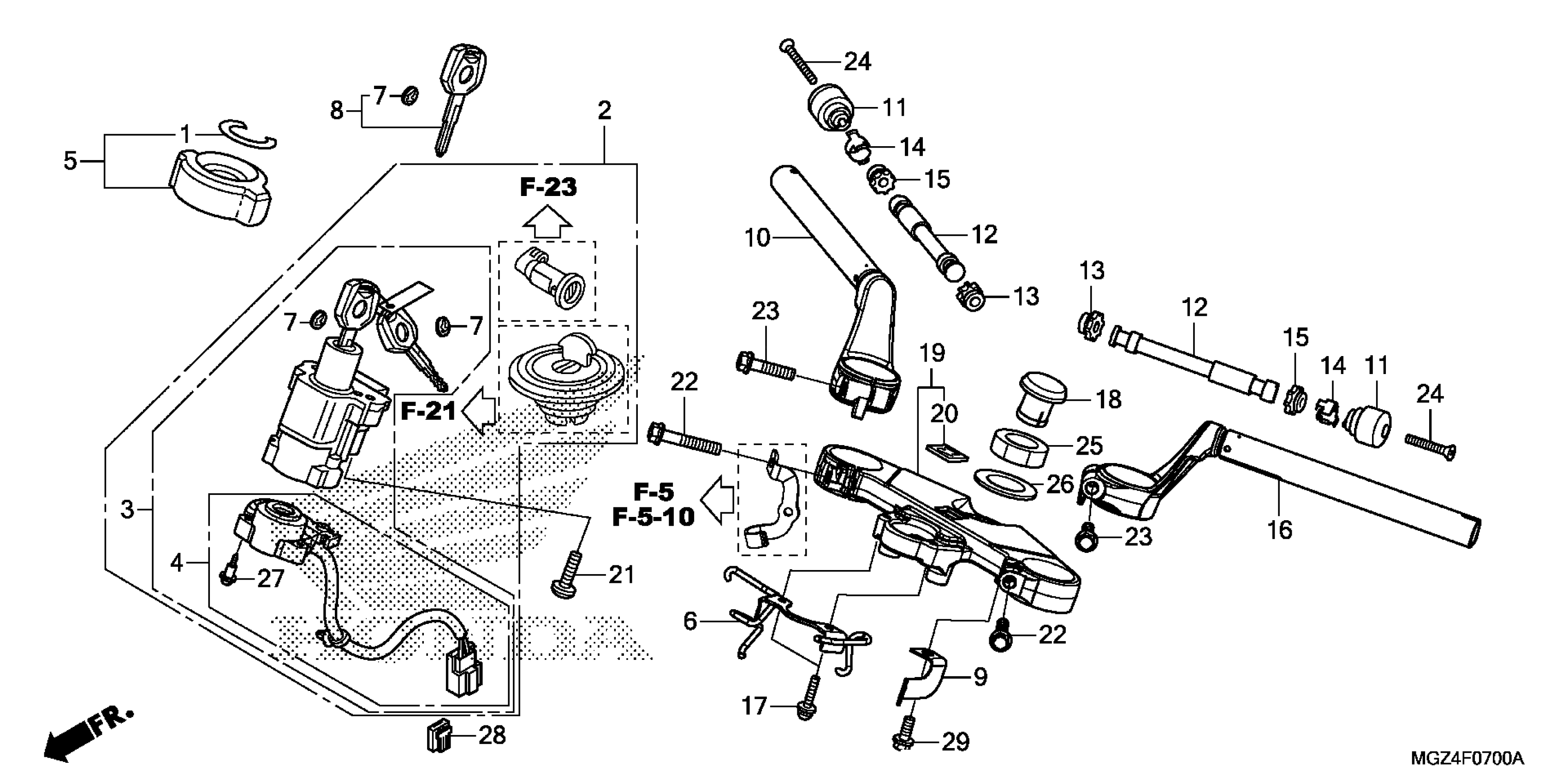

Honda CBR500RA (14) MOTORCYCLE, THA, VIN# MLHPC446-E5100001 TO MLHPC446-E5199999 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

2

LOCK SET | Use up to Frame SN E5101088. This part replaces 35010-MGZ-A00.

35010-MGZ-A01

$251.56

2

LOCK SET

35010-MGZ-A01

$251.56

3

SWITCH ASSY., COMBINATION & LOCK (MSDS) | Use up to Frame SN E5101088. This part replaces 35100-MGZ-A01.

35100-MGZ-A02

$311.07

3

SWITCH ASSY., COMBINATION & LOCK (MSDS)

35100-MGZ-A02

$311.07

4

BASE, CONTACT

35101-MGZ-J01

$43.85

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

6

GUIDE, CABLE

35106-MGZ-J01

$15.28

7

EMBLEM, KEY | (Optional).

35113-MFJ-D01

$2.92

8

KEY, BLANK | (Optional).

35121-MGS-A31

$23.60

9

GUIDE, L. FR. WIRE

35910-MGZ-J00

$2.43

10

HANDLEBAR, R. (COO)

53100-MGZ-305

$56.42

11

WEIGHT, HANDLEBAR

53104-MGZ-J00

$10.84

12

WEIGHT B, HANDLEBAR

53105-MGZ-J00

$9.09

13

RUBBER, HANDLE WEIGHT (B)

53107-KM9-000

$3.90

14

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

15

RUBBER B, HANDLE WEIGHT

53109-MV4-000

$2.67

16

HANDLEBAR, L. (COO)

53150-MGZ-305

$56.42

17

SCREW-WASHER (5X25)

53192-MFL-000

$1.85

18

CAP, STEERING STEM NUT

53232-MJ4-670

$13.43

19

BRIDGE, FORK TOP

53300-MGZ-J00

$96.46

20

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

20

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$4.02

20

EMBLEM, PRODUCT (SHINKO)

86150-KTJ-C60

$4.11

21

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

22

BOLT, FLANGE (8X40)

90108-KZZ-900

$1.49

23

BOLT, FLANGE (8X35)

90112-MGZ-J00

$1.49

24

SCREW, OVAL (6X50)

90191-KYJ-900

$1.49

25

NUT, STEERING STEM

90304-KGA-900

$3.13

26

WASHER, STEERING STEM

90503-KGA-900

$1.54

27

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

28

HOLDER, BRACKET (RED)

91554-SM4-003

$7.82

29

BOLT, FLANGE (8X18)

95701-08018-00

$1.80
