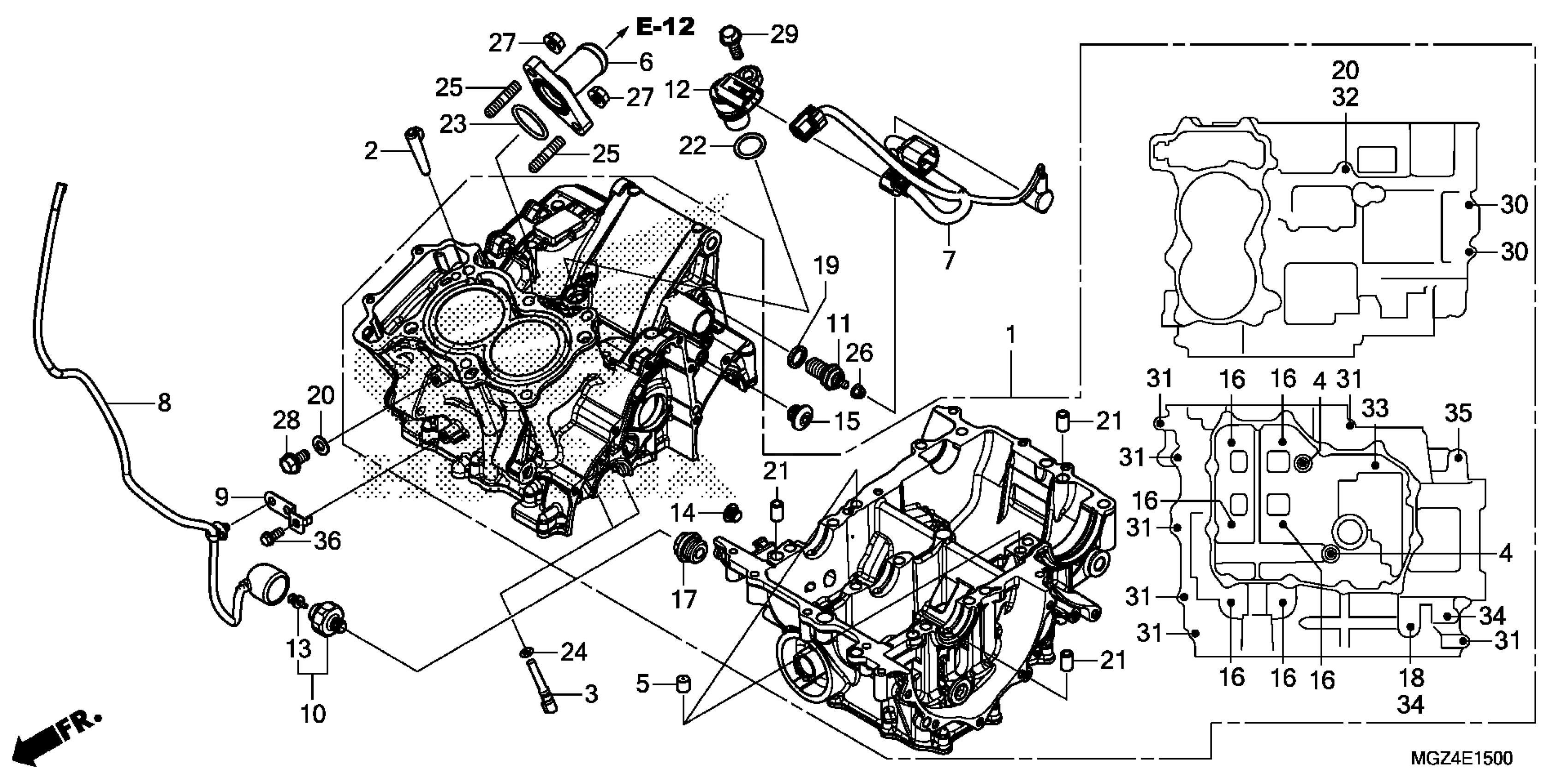

Honda CBR500RA (14) MOTORCYCLE, THA, VIN# MLHPC446-E5100001 TO MLHPC446-E5199999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Use up to Engine SN 2103362.

11000-MGZ-J00

$1,146.74

1

CRANKCASE SET | Use from Engine SN 2103363.

11000-MGZ-J01

$1,146.74

2

PIN, PARTITION

11103-MGZ-J00

$3.62

3

JET, OIL

11140-MGZ-J00

$17.13

4

BOLT, SEALING (12MM)

12207-KYJ-900

$1.37

5

ORIFICE A (1.0MM)

15515-MGZ-J00

$0.84

6

JOINT, WATER

19060-MGZ-J00

$21.04

7

SUB-HARNESS, ENGINE

32101-MGZ-J00

$23.29

8

SUB-HARNESS, OIL PRESSURE

32102-MGZ-J00

$10.10

9

STAY, HARNESS CLIP

32157-MGZ-J00

$1.34

10

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MEH-661

$45.16

11

SWITCH ASSY., NEUTRAL

35600-MK4-860

$17.35

12

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$40.44

13

BOLT-WASHER (4X8) (DENSO)

90002-PA6-003

$5.41

14

BOLT, SOCKET (10MM)

90005-MAZ-000

$2.09

15

BOLT, SOCKET (10MM)

90009-MGZ-J00

$3.63

16

BOLT, UBS (8X105)

90015-MGZ-J01

$6.33

17

BOLT, SEALING (18MM)

90048-MY5-600

$12.76

18

WASHER, SEALING (8MM)

90442-028-000

$1.63

19

WASHER, NEUTRAL

90443-MJ6-000

$1.78

20

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

21

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.10

22

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.63

23

O-RING (23X2.4)

91304-MCP-900

$2.66

24

O-RING (3.2X1.1)

91305-MCJ-751

$2.00

25

BOLT, STUD (6X16)

92900-06016-0E

$1.74

26

NUT, FLANGE (4MM)

94050-04000

$1.13

27

NUT, FLANGE (6MM)

94050-06000

$0.60

28

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

29

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.50

30

BOLT, FLANGE (6X35)

95701-06035-00

$1.74

31

BOLT, FLANGE (6X40)

95701-06040-08

$1.69

32

BOLT, FLANGE (6X95)

95701-06095-00

$1.87

33

BOLT, FLANGE (8X55)

95701-08055-00

$2.80

34

BOLT, FLANGE (8X75)

95701-08075-00

$3.14

35

BOLT, FLANGE (10X75)

95701-10075-00

$2.25

36

BOLT, FLANGE (6X14)

96001-06014-07

$1.10
