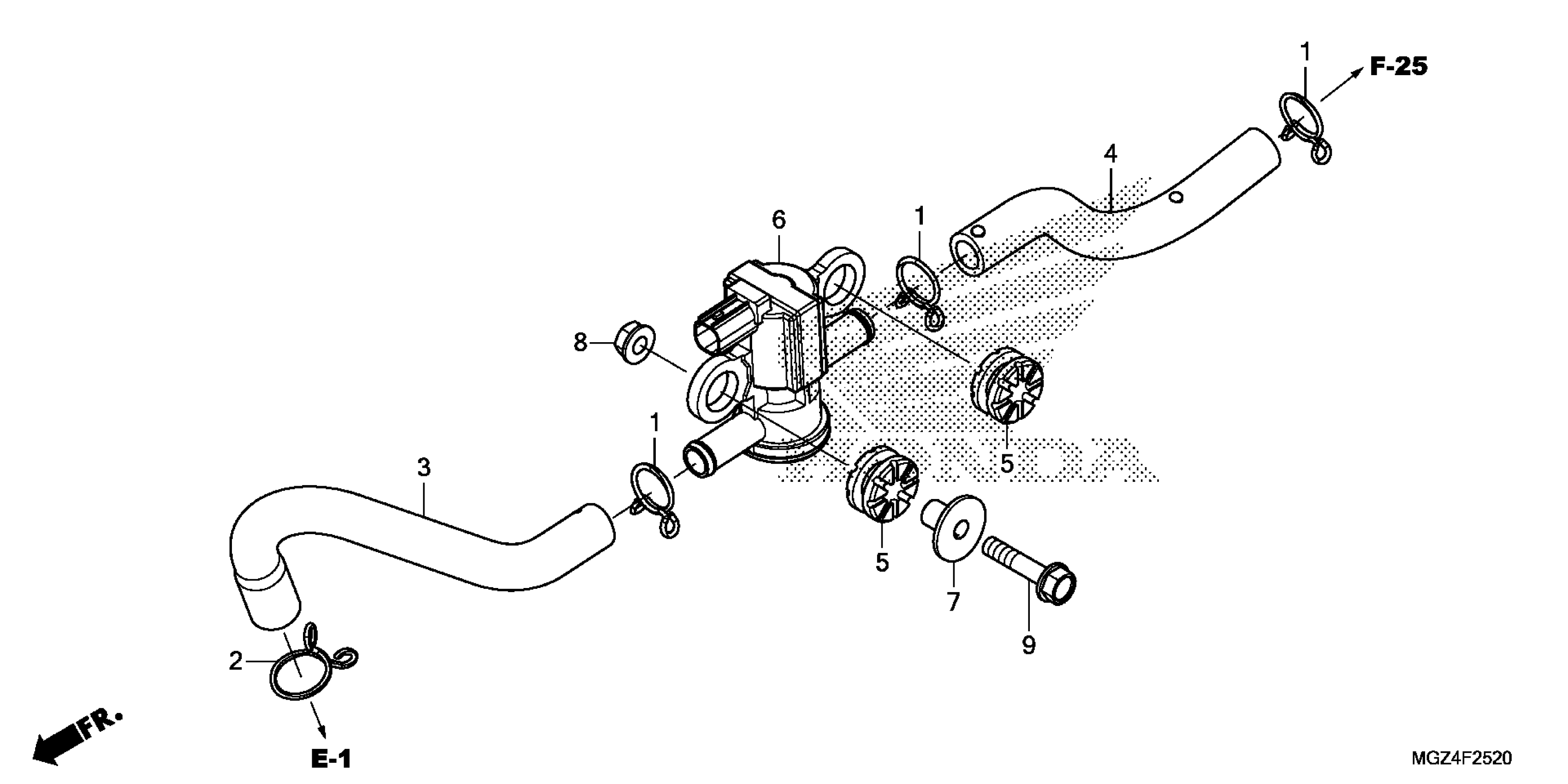

Honda CBR500RA (14) MOTORCYCLE, THA, VIN# MLHPC446-E5100001 TO MLHPC446-E5199999 AIR INJECTION SOLENOID VALVE Diagram

#

Description

Price

1

CLIP, BREATHER TUBE

15772-551-000

$2.05

2

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

3

TUBE, AIR INJECTION SOLENOID

18613-MGZ-J00

$5.21

4

TUBE (AISV-AIR CLEANER)

18653-MGZ-D00

$6.38

5

RUBBER, HEADLIGHT

33115-KVK-900

$1.49

6

VALVE ASSY., AIR INJECTION SOLENOID This part replaces 36450-KVK-901.

36450-KVK-902

$62.61

6

VALVE ASSY., AIR INJECTION SOLENOID

36450-KVK-902

$62.61

7

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

7

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.42

7

COLLAR, FR. FENDER (BLACK) (FOR RR.)

61104-428-730

$4.21

8

NUT, FLANGE (6MM)

94050-06080

$1.49

9

BOLT, FLANGE (6X28)

95701-06028-08

$2.08
