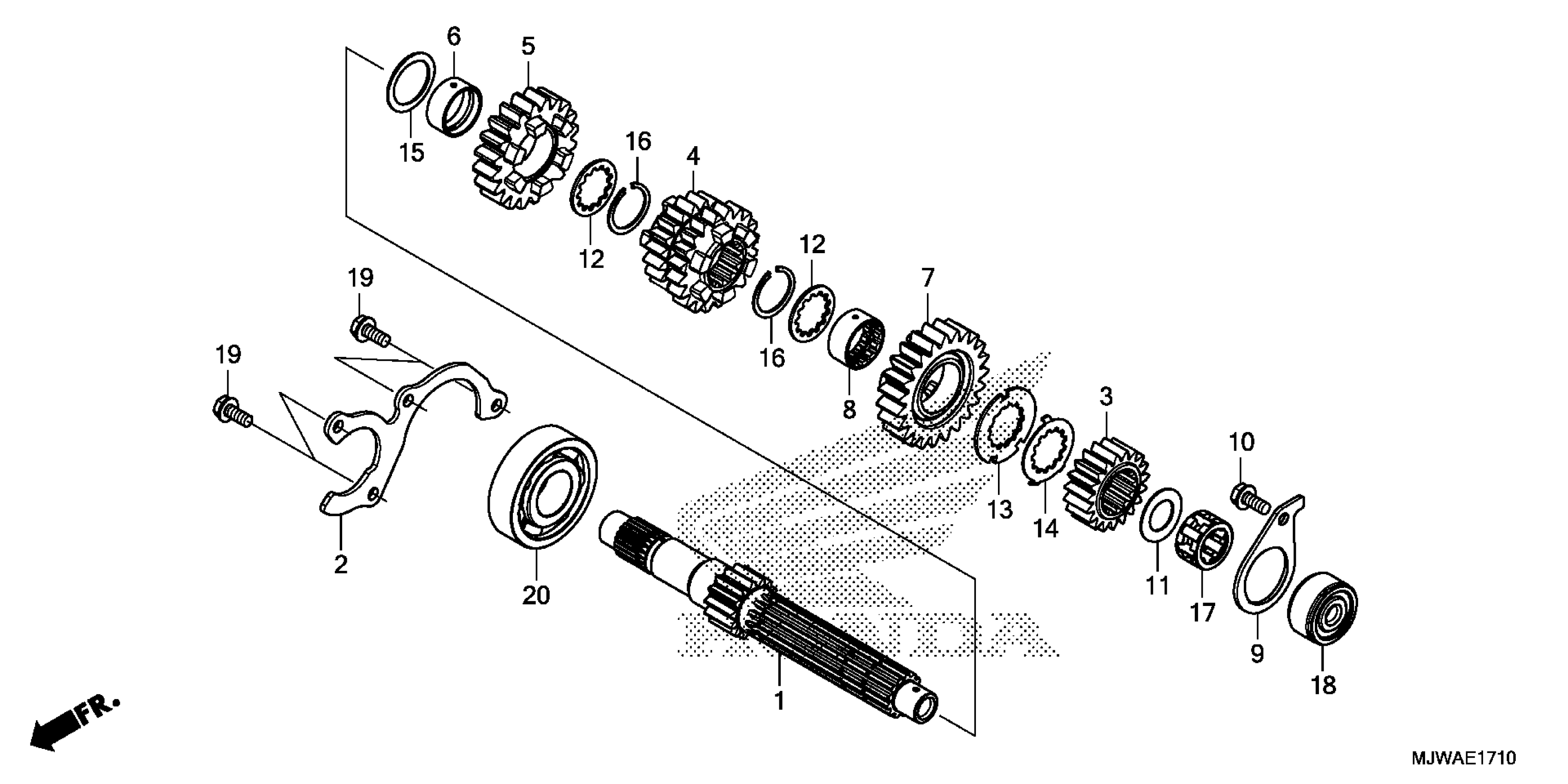

Honda CBR500R2AC (18) MOTORCYCLE, THA, VIN# MLHPC441-J5500001 TRANSMISSION (MAINSHAFT) Diagram

MAINSHAFT (14T)

23211-MGZ-J00

$66.74

PLATE, BEARING SETTING

23212-MGZ-J00

$13.70

GEAR, MAINSHAFT SECOND (19T)

23431-MGZ-J01

$35.25

GEAR, MAINSHAFT THIRD & FOURTH (20T/20T)

23451-MGZ-J00

$93.97

GEAR, MAINSHAFT FIFTH (20T)

23491-MGZ-J00

$49.62

COLLAR (25X28X12)

23492-MGZ-J00

$13.79

GEAR, MAINSHAFT SIXTH (23T)

23511-MGZ-J00

$50.36

COLLAR, SPLINE (25X28X13)

23512-MV9-670

$27.13

PLATE, BEARING SETTING

23531-MGZ-J00

$5.03

BOLT, FLANGE (6X14)

90005-MGZ-J00

$1.49

WASHER, THRUST (17.2MM)

90403-KE7-000

$4.02

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

WASHER, SPLINE (25X42X1.6)

90454-KYJ-900

$1.52

WASHER, LOCK (25MM)

90455-KYJ-900

$32.30

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

CIRCLIP (25MM)

90601-107-000

$3.74

BEARING, NEEDLE (17X27X14.8) (TOYO)

91022-MN4-003

$10.08

OUTER, NEEDLE BEARING

91023-MN4-003

$16.11

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
