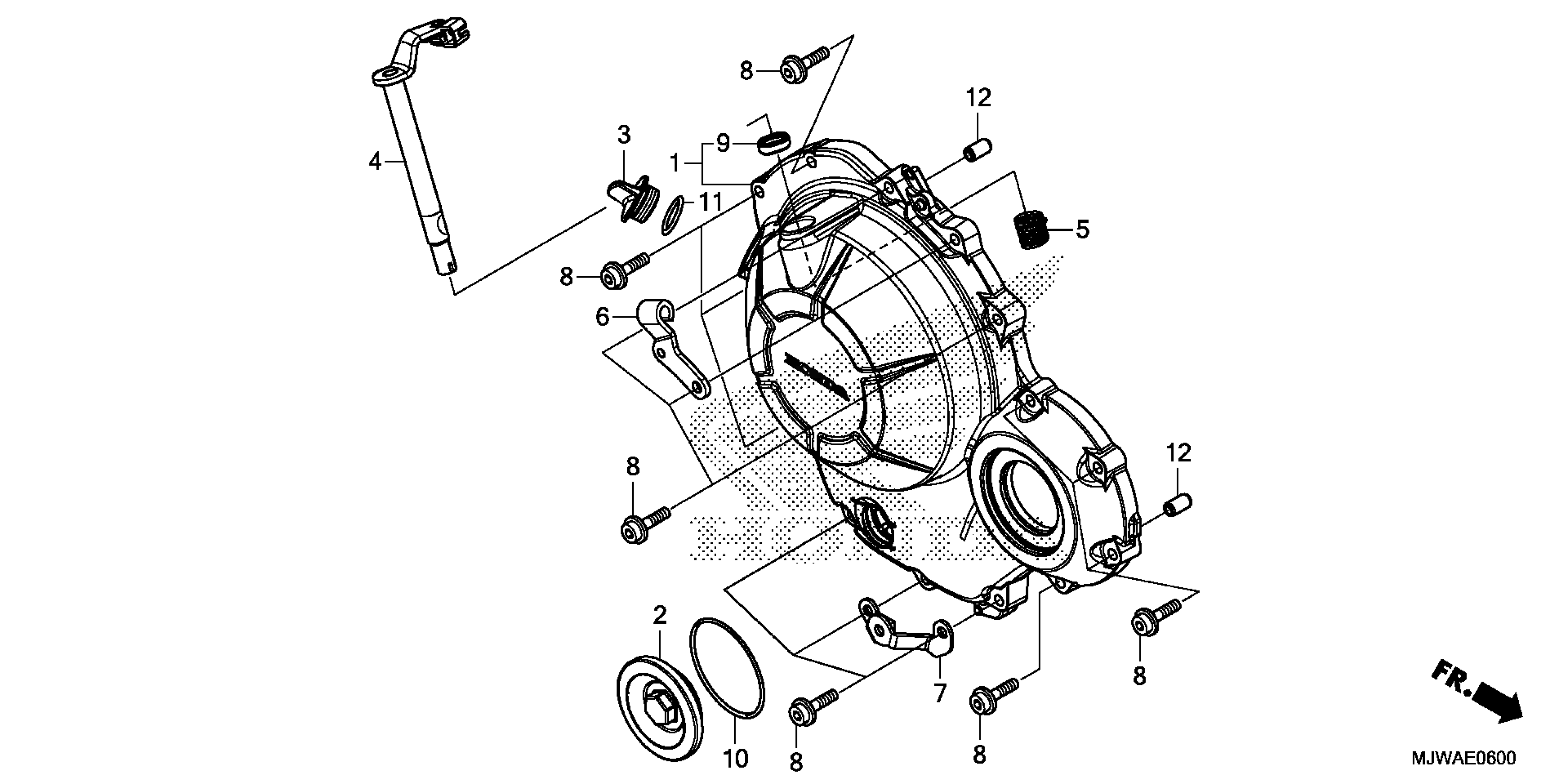

Honda CBR500R2AC (18) MOTORCYCLE, THA, VIN# MLHPC441-J5500001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MJW-J00

$87.97

CAP (45MM)

11332-MJW-J00

$14.77

CAP, OIL FILLER

15611-KA4-710

$14.40

LEVER, CLUTCH

22810-MGZ-J00

$33.20

SPRING, CLUTCH LEVER

22815-413-000

$3.08

RECEIVER, CLUTCH CABLE

22821-MGZ-J00

$11.23

STAY, R. RR. COWL (LOWER)

64316-MGZ-J00

$1.49

BOLT, FLANGE SOCKET (6X28)

90003-MGZ-J00

$1.49

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
