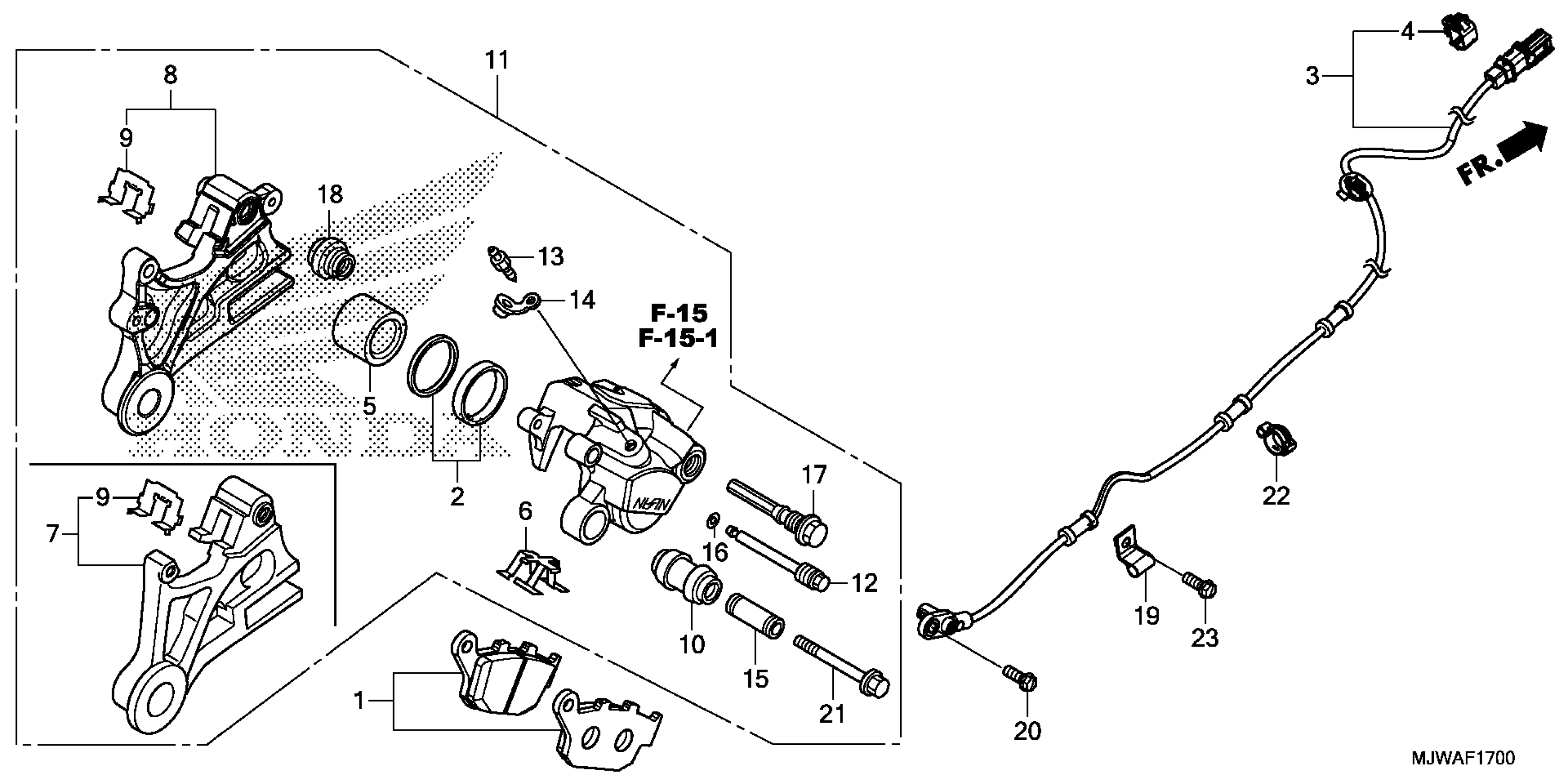

Honda CBR500R2AC (18) MOTORCYCLE, THA, VIN# MLHPC441-J5500001 REAR BRAKE CALIPER Diagram

PAD SET, RR. | Use up to Frame SN J5500608. This part replaces 06435-MGZ-J01.

06435-MGZ-J02

$31.30

PAD SET, RR. | Use from Frame SN J5500609.

06435-MGZ-J02

$31.30

SEAL SET, PISTON

06451-443-405

$13.23

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-MBB-006

$6.19

BRACKET, RR. BRAKE

43110-MGZ-J01

$79.33

RETAINER

43112-KT7-761

$9.43

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MGZ-J01

$194.95

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

RING, STOPPER

45111-MAJ-G41

$3.80

BOLT, PIN

45131-MN9-006

$15.97

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07
