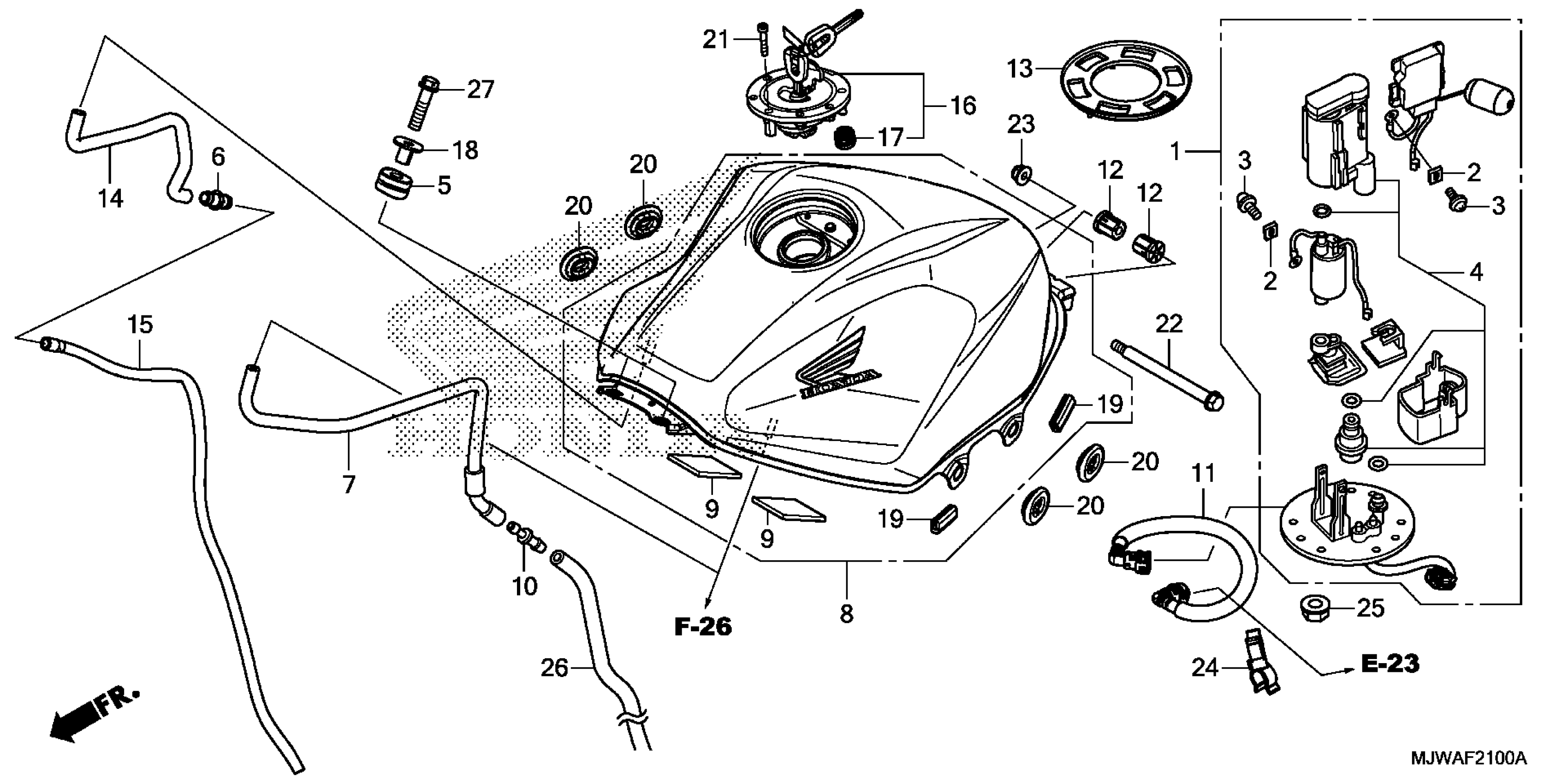

Honda CBR500R2AC (18) MOTORCYCLE, THA, VIN# MLHPC441-J5500001 FUEL TANK@FUEL PUMP Diagram

#

Description
Price

1

UNIT ASSY,FUEL PUMP This part replaces 16700-MJW-J01.

16700-MJW-J03

$509.90

1

UNIT ASSY,FUEL PUMP This part replaces 16700-MJW-J02.

16700-MJW-J03

$509.90

2

STOPPER

16711-MGS-D31

$4.47

3

SCREW (4X6.6)

16712-MGS-D31

$1.74

4

FILTER ASSY., FUEL This part replaces 16730-MJW-J81.

16730-MKT-D01

$38.84

4

FILTER ASSY., FUEL This part replaces 16730-MJW-J82.

16730-MKT-D01

$38.84

5

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.80

6

JOINT, BREATHER TUBE

17359-419-670

$1.90

8

TANK ASSY., FUEL (TYPE2) (WL)

17500-MJW-DR0ZB

$663.07

9

TAPE B, TANK GUARD

17528-KCZ-930

$3.44

11

HOSE, FUEL FEED

17570-MJW-J01

$43.59

12

CUSHION, RR. FUEL TANK PIVOT

17572-KPP-T00

$2.13

13

GASKET, BASE

17574-MGS-D30

$22.44

14

TUBE, FUEL TANK DRAIN

17590-MGZ-J00

$7.99

15

TUBE, FUEL TANK DRAIN

17591-MJW-J00

$5.41

16

CAP COMP This part replaces 17620-MJE-D02.

17620-MJE-D04

$205.01

17

SEAL, BREATHER This part replaces 17621-MGP-D61.

17621-MGP-D62

$4.90

18

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.83

19

RUBBER, PROTECTOR

64122-MCZ-000

$1.66

20

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

21

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$0.88

22

BOLT, TANK HINGE

90135-MS2-000

$5.95

23

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

24

CLAMP, FUEL HOSE (BLACK)

91593-MGZ-J01

$2.09

25

NUT, FLANGE (6MM)

94050-06000

$0.60

27

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.24
