Description

Price

1

FORK ASSY., R. FR. (COO) (SHOWA)

51400-MJW-315

$341.88

2

SPRING, FR. FORK (SHOWA)

51401-MJW-J01

$32.65

3

COLLAR, SPRING

51402-MGZ-J01

$16.28

4

RING, STOPPER

51405-MB4-003

$5.80

5

PIPE, FR. FORK (SHOWA)

51410-MJW-J01

$123.10

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

7

BUSH, GUIDE

51414-MFJ-A51

$6.93

8

BUSH, SLIDER

51415-MFJ-A51

$6.93

9

SPRING, FR. REBOUND (SHOWA)

51416-KF0-003

$6.72

10

CASE, R. (LOWER)

51420-MGZ-J01

$74.24

11

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$22.78

12

RING, PISTON

51437-KV3-701

$6.87

13

PIPE, SEAT (SHOWA)

51440-MJW-J41

$7.96

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

15

BOLT ASSY., FR. FORK (SHOWA)

51450-MJW-J01

$55.41

16

SEAL SET, FR. FORK

51490-MKA-D81

$20.90

17

FORK ASSY., L. FR. (COO) (SHOWA)

51500-MJW-315

$347.53

18

CASE, L. (LOWER)

51520-MGZ-J01

$68.22

19

BOLT, FLANGE (8X45)

90109-MR7-000

$4.71

20

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

21

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

22

DUST SEAL (SHOWA)

91251-MKA-D81

$7.88

23

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.59

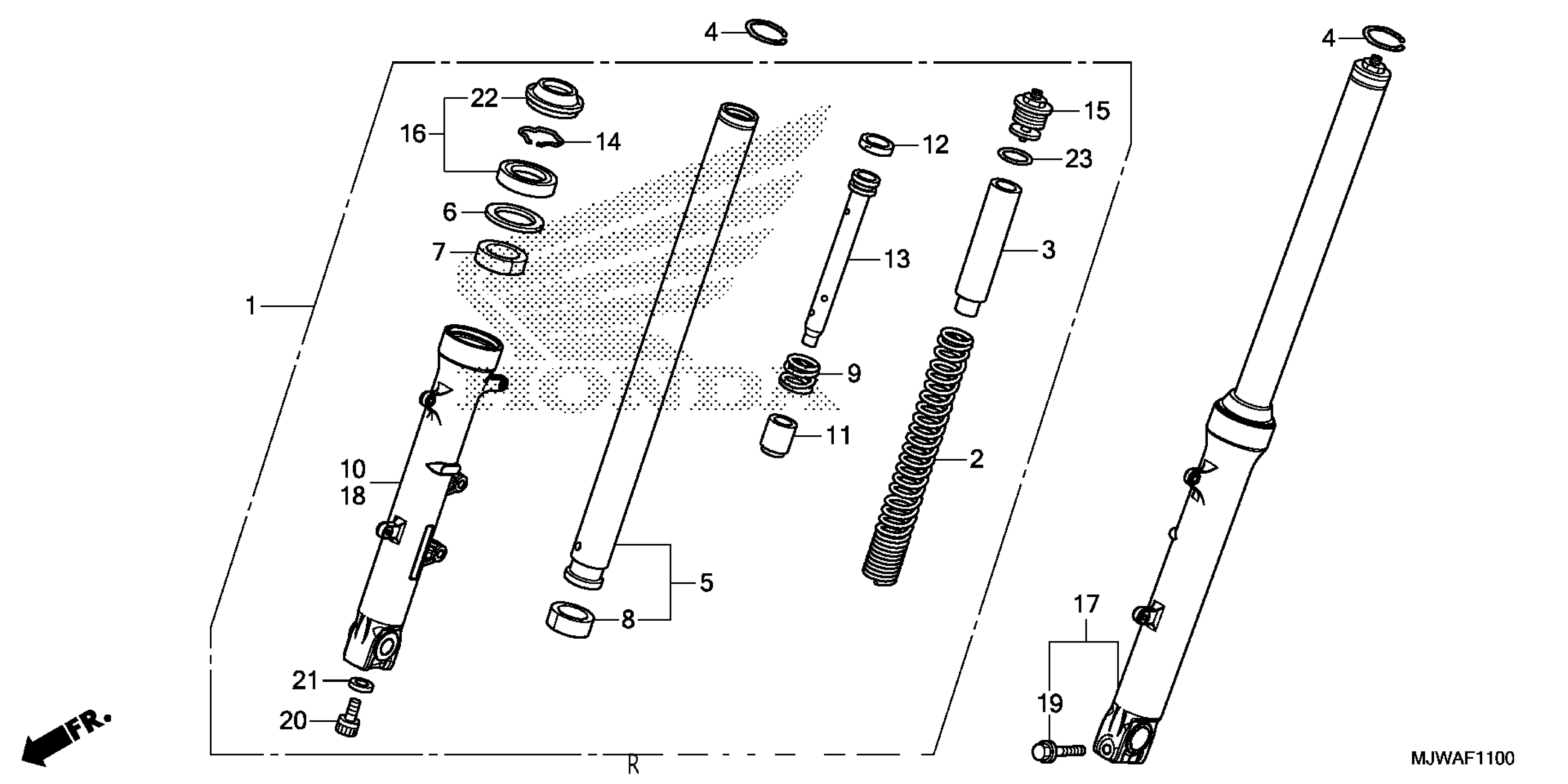

Honda CBR500R2AC (18) MOTORCYCLE, THA, VIN# MLHPC441-J5500001 FRONT FORK Diagram
