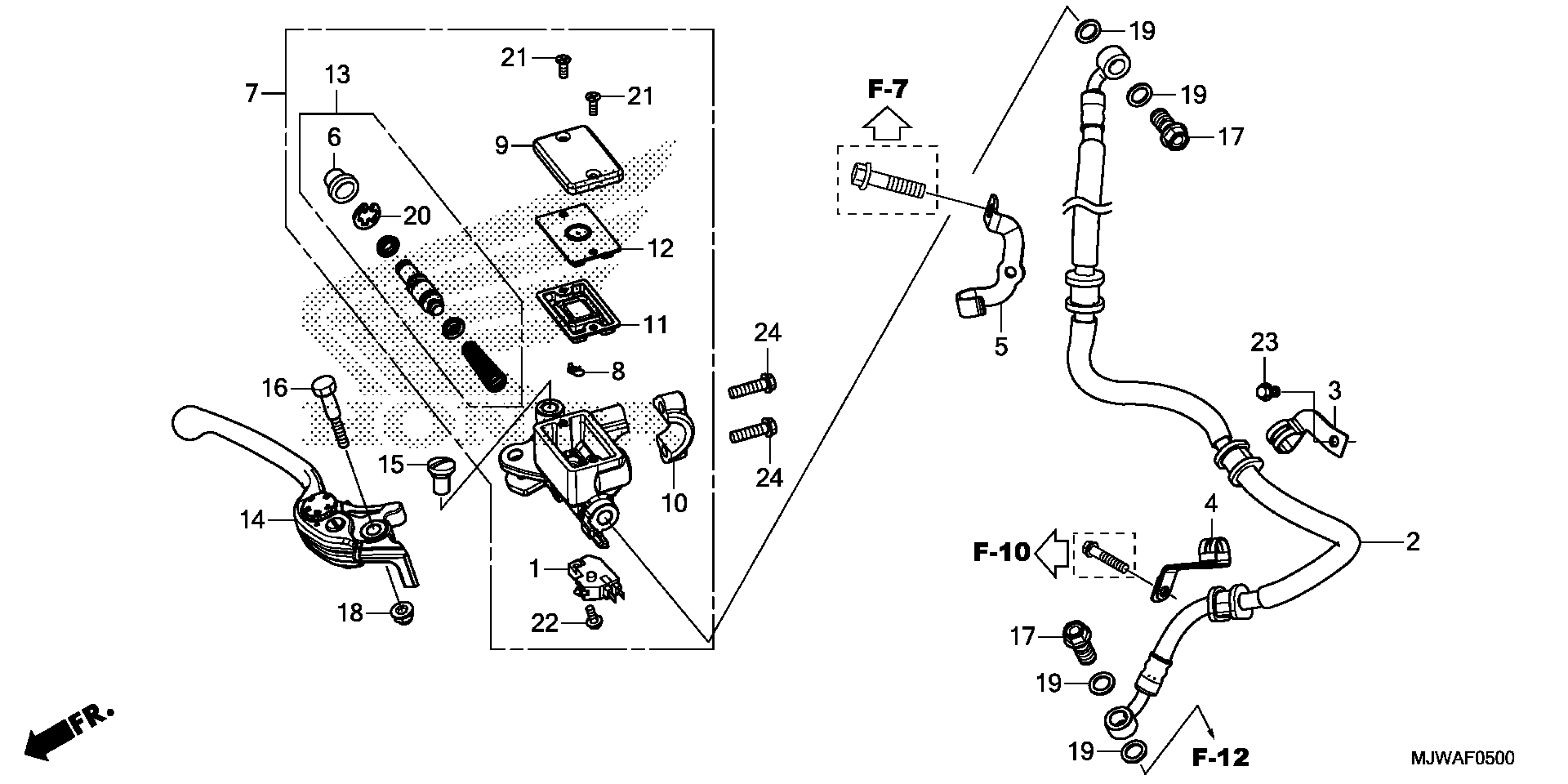

Honda CBR500R2AC (18) MOTORCYCLE, THA, VIN# MLHPC441-J5500001 FRONT BRAKE MASTER CYLINDER (1) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

HOSE, FR. BRAKE

45125-MJW-J01

$22.46

CLAMP A, FR. BRAKE HOSE

45155-MGZ-J00

$2.34

CLAMP B, FR. BRAKE HOSE

45156-MGZ-J00

$3.00

CLAMP C, FR. BRAKE HOSE

45157-MGZ-J00

$2.97

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-MGZ-315

$125.70

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

DIAPHRAGM

45520-GE2-006

$9.58

PLATE, DIAPHRAGM

45521-K21-901

$2.34

MASTER CYLINDER SET

45530-471-831

$40.86

LEVER ASSY., R. HANDLE (COO)

53170-MJW-305

$94.39

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90202-KCW-870

$2.92

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
