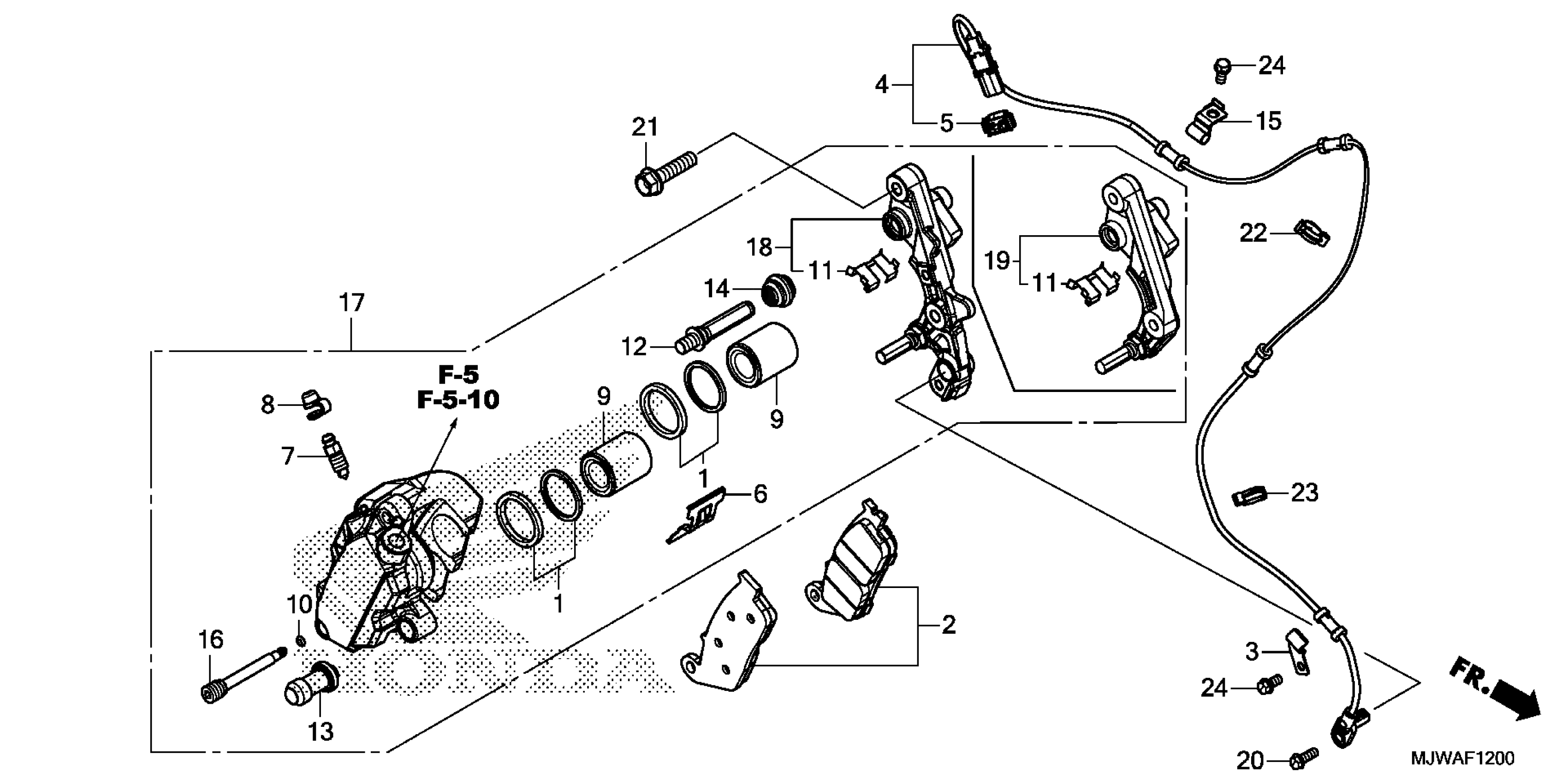

Honda CBR500R2AC (18) MOTORCYCLE, THA, VIN# MLHPC441-J5500001 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

2

PAD SET, FR.

06455-MGS-D32

$51.67

6

SPRING, PAD

43108-MCT-006

$4.92

7

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

8

CAP, BLEEDER

43353-461-771

$5.05

9

PISTON (NISSIN)

45107-ML4-006

$37.87

10

RING, STOPPER

45111-MAJ-G41

$3.80

11

RETAINER

45112-MS9-611

$5.46

12

BOLT A, PIN (NISSIN)

45131-ML7-921

$15.44

13

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

14

BOOT B

45133-MA3-006

$5.46

16

PIN, HANGER

45215-MAJ-G41

$6.45

17

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MKA-J31

$315.20

19

BRACKET SUB-ASSY., R. FR. (NISSIN)

45290-MKA-J31

$89.13

21

BOLT, FLANGE (8X32)

90131-KZZ-900

$1.49
