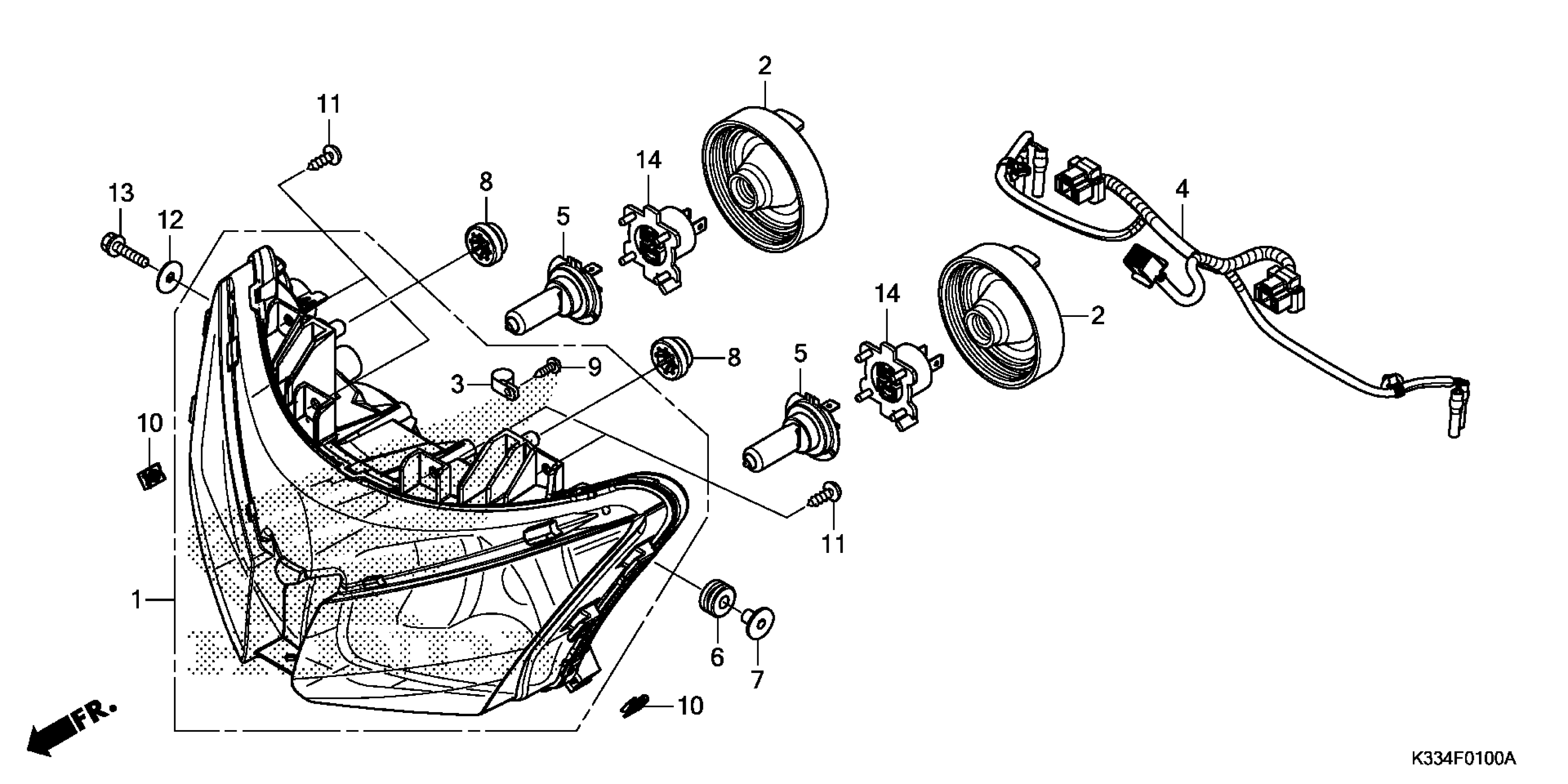

Honda CBR300RAC (15) MOTORCYCLE, THA, VIN# MLHNC511-F5100001 TO MLHNC511-F5199999 HEADLIGHT Diagram

HEADLIGHT UNIT (COO)

33110-K33-305

$209.45

COVER, RUBBER

33112-KWR-003

$8.84

CLAMP

33115-K33-D01

$1.86

SOCKET

33120-K33-A01

$41.58

BULB, HEADLIGHT (12V 55W) (H7) (KOITO)

34901-MGZ-J01

$18.99

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

Unavailable

COLLAR

61104-KZZ-900

$1.68

RUBBER, HEADLIGHT CASE MOUNTING

61304-KRY-900

$1.16

SCREW, TAPPING (4X12)

90111-K33-D01

$1.70

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

SCREW, TAPPING (4X12)

93903-24380

Unavailable

WASHER, PLAIN (6MM)

94103-06800

$0.71

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

ADAPTER

33111-K33-D01

$6.65
