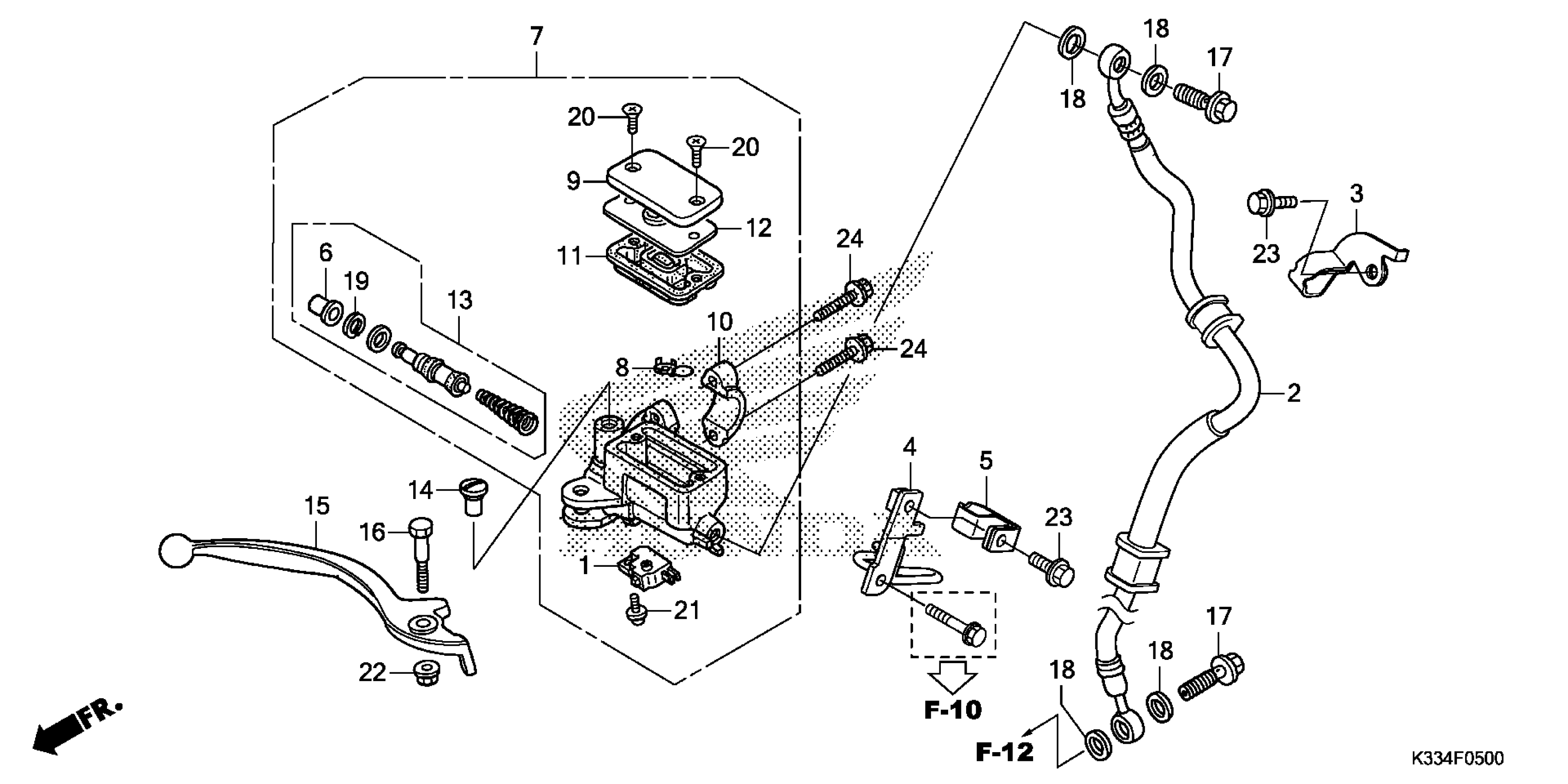

Honda CBR300RAC (15) MOTORCYCLE, THA, VIN# MLHNC511-F5100001 TO MLHNC511-F5199999 FRONT BRAKE MASTER CYLINDER (STANDARD) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.62

HOSE, FR. BRAKE

45125-KYJ-D21

$22.17

CLAMP, FR. BRAKE HOSE

45155-KYJ-900

$1.68

STAY, BRAKE HOSE CLAMP

45156-KYJ-900

$14.17

CLAMP B, FR. BRAKE HOSE

45157-KYJ-900

$1.68

BOOT

45504-410-003

$10.93

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-K33-305

$115.49

PROTECTOR

45512-MA6-006

$3.99

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

DIAPHRAGM

45520-GE2-006

$8.35

PLATE, DIAPHRAGM

45521-K21-901

$2.07

MASTER CYLINDER SET

45530-KVY-911

$23.49

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.26

LEVER, R. HANDLEBAR (COO)

53175-K26-305

Unavailable

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.04

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, FLANGE (6MM)

94050-06000

$0.59

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
