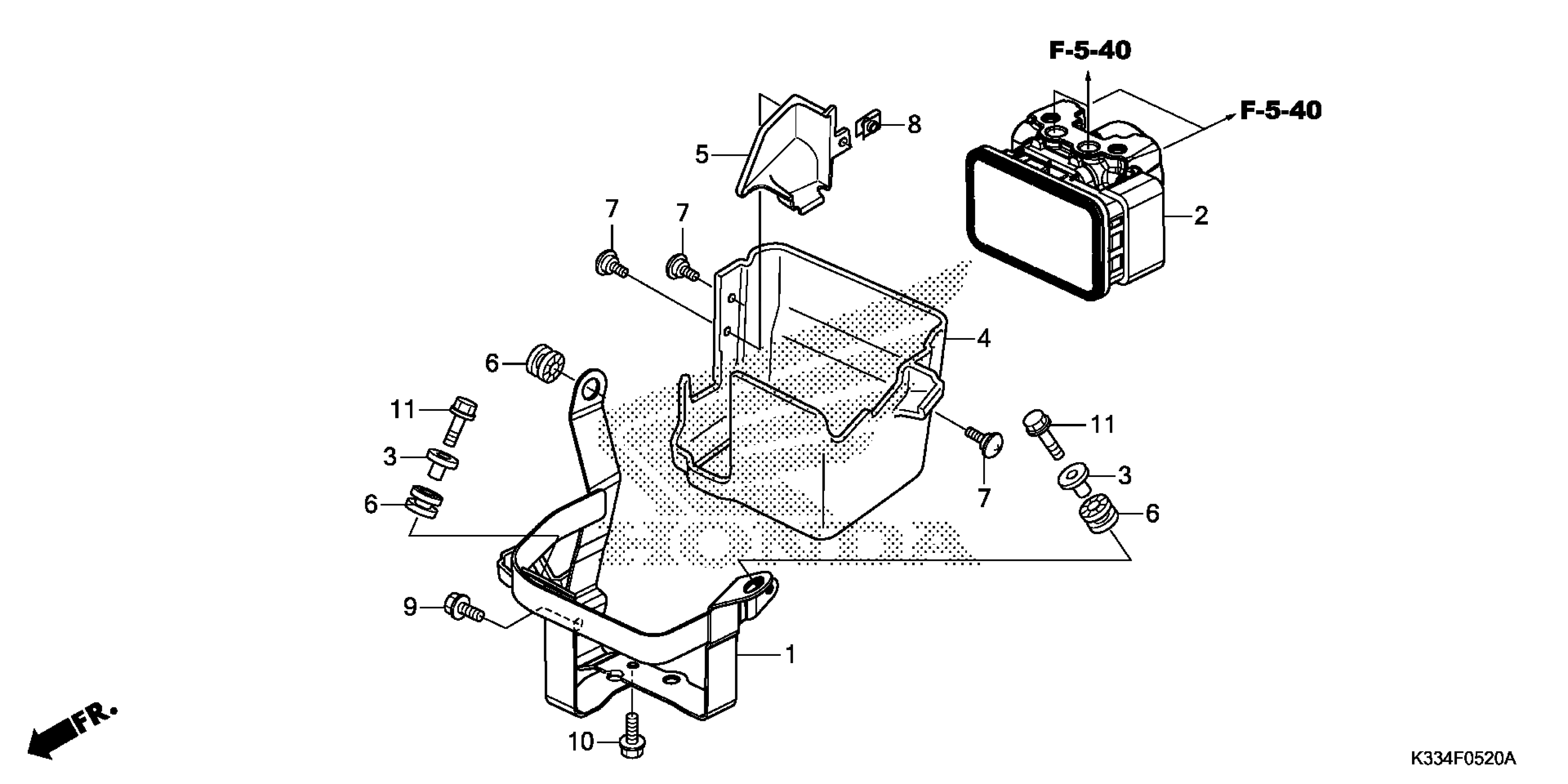

Honda CBR300RA8A (15) MOTORCYCLE, THA, VIN# MLHNC514-F5100001 TO MLHNC514-F5199999 ABS MODULATOR Diagram

#

Description
Price

1

STAY, ABS MODULATOR

50245-K33-D50

$37.80

2

MODULATOR ASSY., ABS (MSDS)

57110-K33-D52

$1,142.23

3

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.73

4

COVER A, ABS MODULATOR

61410-KYJ-910

$28.48

5

COVER B, ABS MODULATOR

61411-KYJ-910

$14.48

6

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.05

7

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$1.99

8

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

9

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.14

10

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

11

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
