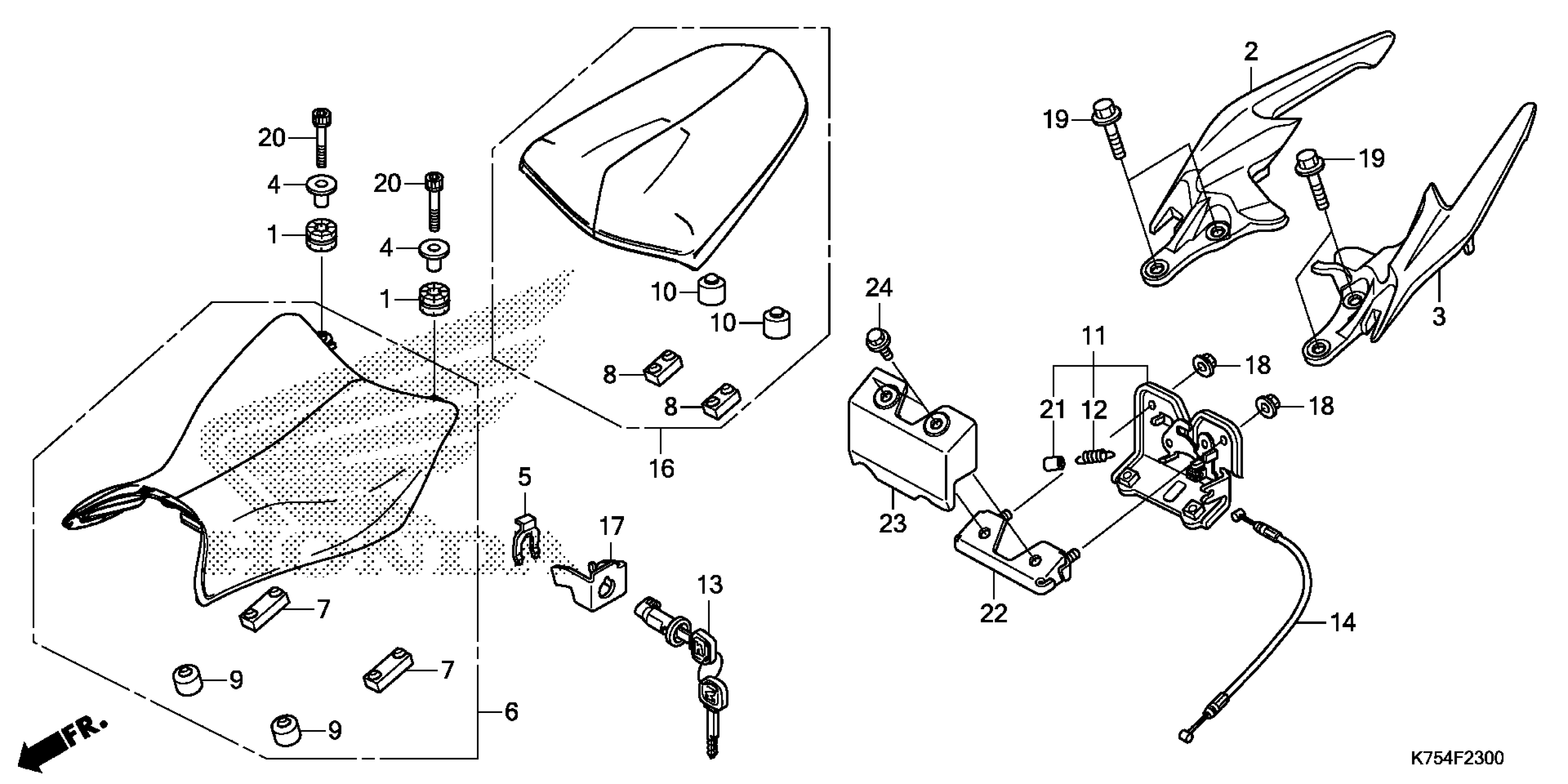

Honda CBR300RA5AC (22) MOTORCYCLE, THA, VIN# MLHNC515-N5800001 SEAT Diagram

RUBBER A, TAILLIGHT MOUNTING

33705-KW7-900

$2.49

GRIP, R. RR. *NH303M* (MAT AXIS GRAY METALLIC)

50315-K33-D00ZA

$38.49

GRIP, L. RR. *NH303M* (MAT AXIS GRAY METALLIC)

50325-K33-D00ZA

$38.79

COLLAR, FR. FENDER (BLACK) (FOR RR.)

61104-428-730

$4.21

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.78

SEAT, SINGLE (TYPE1)

77100-K33-D00ZA

$83.64

RUBBER B, SEAT SETTING

77205-286-000

$5.28

RUBBER, SEAT SETTING

77205-KPP-T00

$2.13

RUBBER, SEAT CUSHION

77206-KPP-T00

$3.44

RUBBER, SEAT CUSHION

77207-KYJ-900

$4.48

LOCK, SEAT

77220-K33-D00

$19.49

SPRING, SEAT LOCK

77234-GN2-000

$3.92

KEY, SEAT LOCK

77239-KVB-900

$49.15

CABLE, SEAT LOCK

77240-KYJ-900

$3.51

SEAT, PILLION

77300-K33-D00

$85.00

STAY, SEAT LOCK CABLE

77582-KPP-T00

$3.05

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

BOLT, SOCKET (6X25)

96600-06025-08

$1.49

TUBE, VINYL (8X9X20) (95003-21001-10M)

95003-21002-10

$1.49

COVER, SEAT LOCK

77250-K33-D01

$19.54

GUARD, SEAT LOCK

77260-K33-D00

$7.46

PIVOT, SHIFT DRUM STOPPER ARM

90023-MGZ-J00

$1.49
