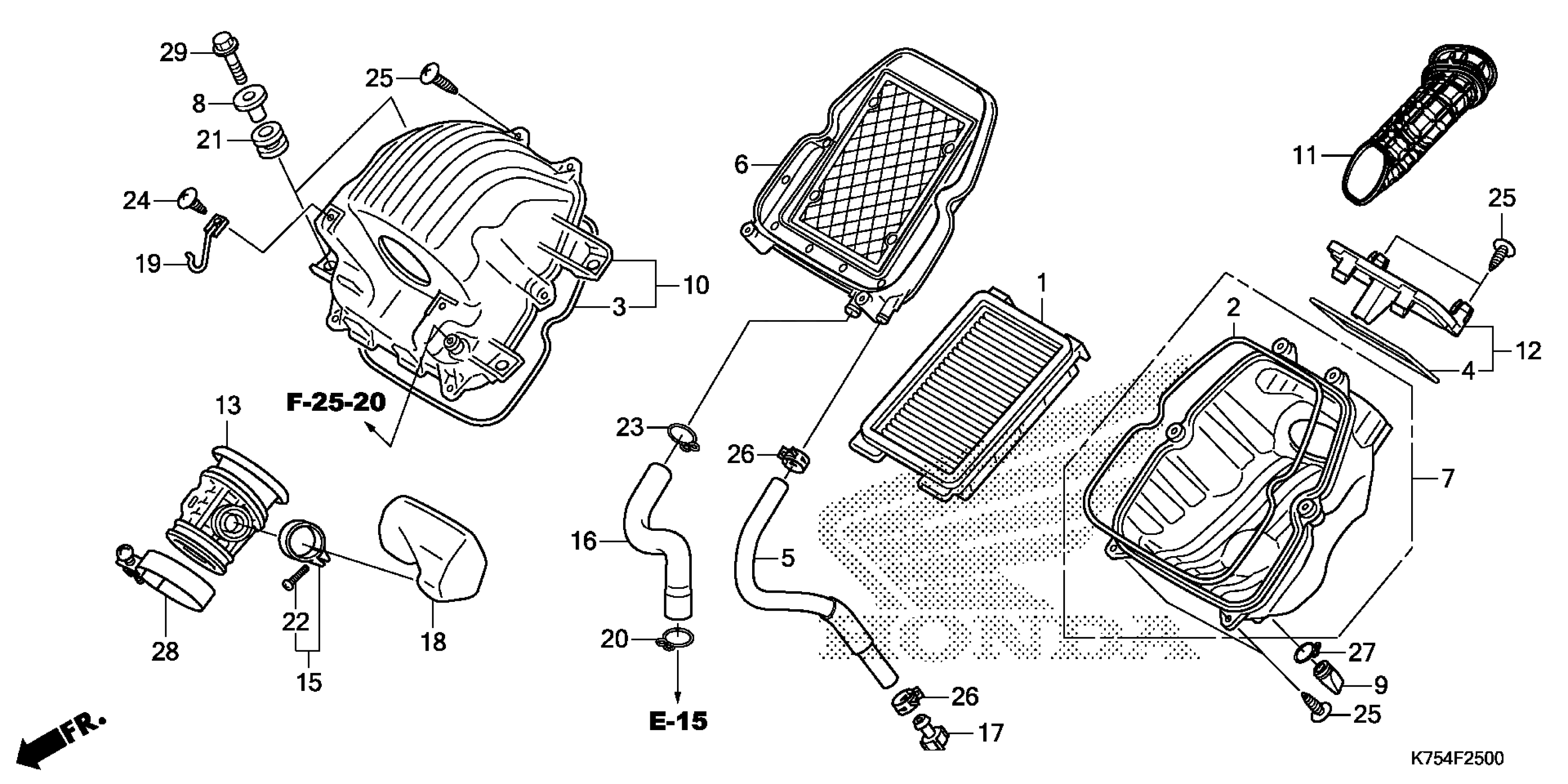

Honda CBR300RA5AC (22) MOTORCYCLE, THA, VIN# MLHNC515-N5800001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-KYJ-900

$11.84

2

SEAL, AIR CLEANER

17213-KYJ-900

$1.64

3

SEAL, AIR CLEANER

17213-KYJ-900

$1.64

4

SEAL, LID

17214-KYJ-900

$1.26

5

TUBE, AIR CLEANER DRAIN

17215-KYJ-901

$11.10

6

HOLDER, ELEMENT

17220-KYJ-900

$9.10

7

CASE SUB-ASSY., AIR CLEANER

17225-KYJ-900

$8.70

8

COLLAR, AIR CLEANER MOUNTING

17232-KYJ-900

$0.80

9

TUBE, AIR CLEANER DRAIN

17234-KCW-871

$2.35

10

COVER SUB-ASSY., AIR CLEANER

17235-KYJ-900

$14.62

11

DUCT, INLET

17240-K33-D00

$14.16

12

LID SUB-ASSY., AIR CLEANER

17245-KYJ-901

$3.55

13

TUBE, AIR CLEANER CONNECTING

17253-K33-D00

$25.16

15

BAND, RESONATOR (28)

17255-MCG-000

$8.41

16

TUBE, BREATHER

17265-KYJ-900

$4.84

17

PLUG, BREATHER TUBE

17370-419-700

$3.49

18

RESONATOR

17410-KYJ-900

$5.75

20

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

21

RUBBER, SIDE COVER

83545-KCJ-690

$1.28

22

SCREW, PAN (5X25)

93500-05025-0G

$0.68

23

CLIP, AIR HOSE (16MM)

90646-657-000

$6.82

25

SCREW, TAPPING (5X20)

93903-25480

$0.61

26

CLAMP, TUBE (D12) This part replaces 95002-41200-00.

95002-41200-04

$2.30

27

CLIP, TUBE (C12)

95002-80000

$0.42

28

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56250

$5.04

29

BOLT, FLANGE (6X20)

95701-06020-08

$0.35
