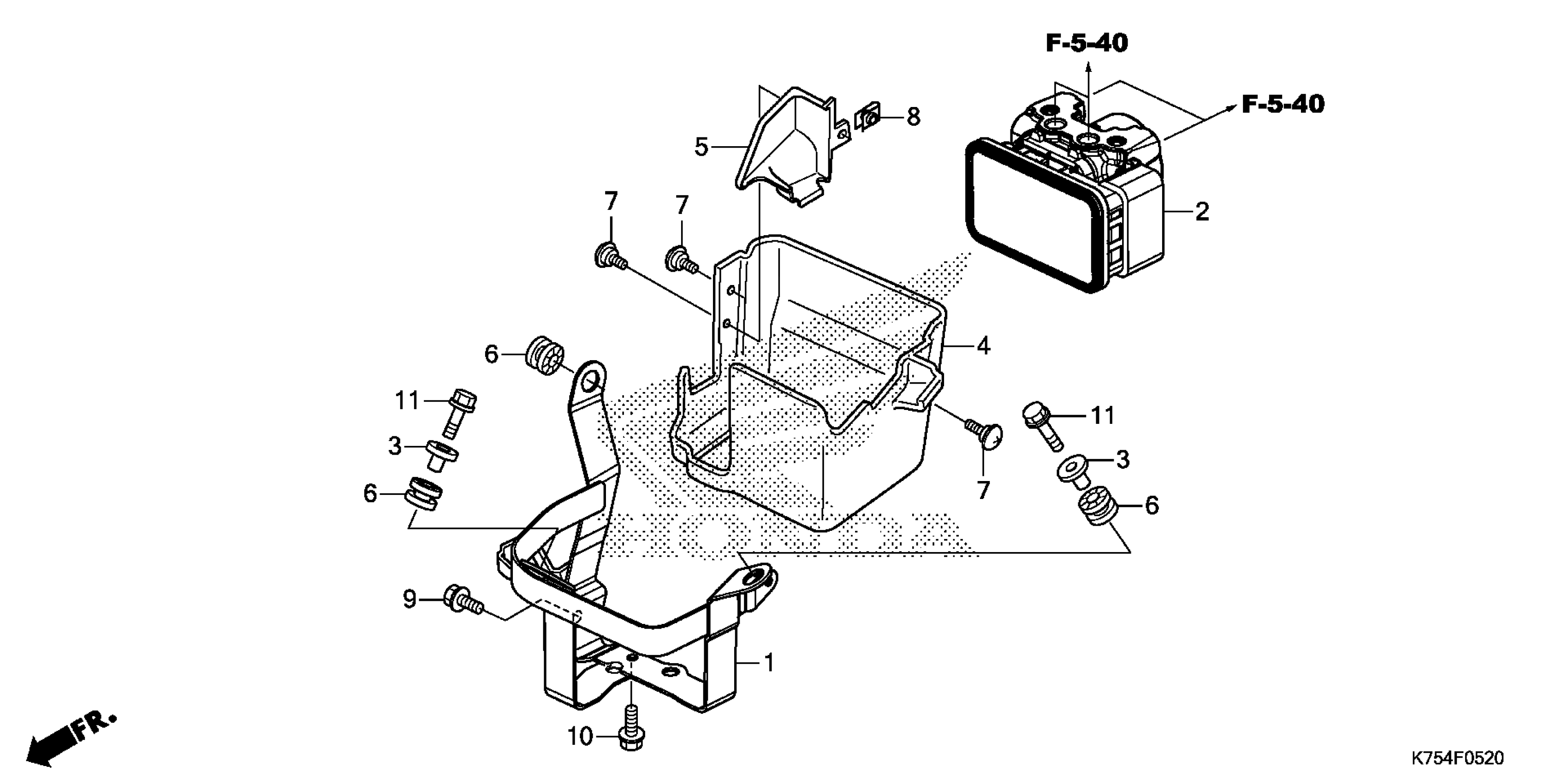

Honda CBR300RA5AC (22) MOTORCYCLE, THA, VIN# MLHNC515-N5800001 ABS MODULATOR Diagram

#

Description

Price

1

STAY, ABS MODULATOR

50245-K33-D50

$42.75

2

MODULATOR ASSY., ABS (MSDS)

57110-K33-D52

$1,292.03

3

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$4.13

4

COVER A, ABS MODULATOR

61410-KYJ-910

$32.21

5

COVER B, ABS MODULATOR

61411-KYJ-910

$16.38

6

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.37

7

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.18

8

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

9

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

10

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

11

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
