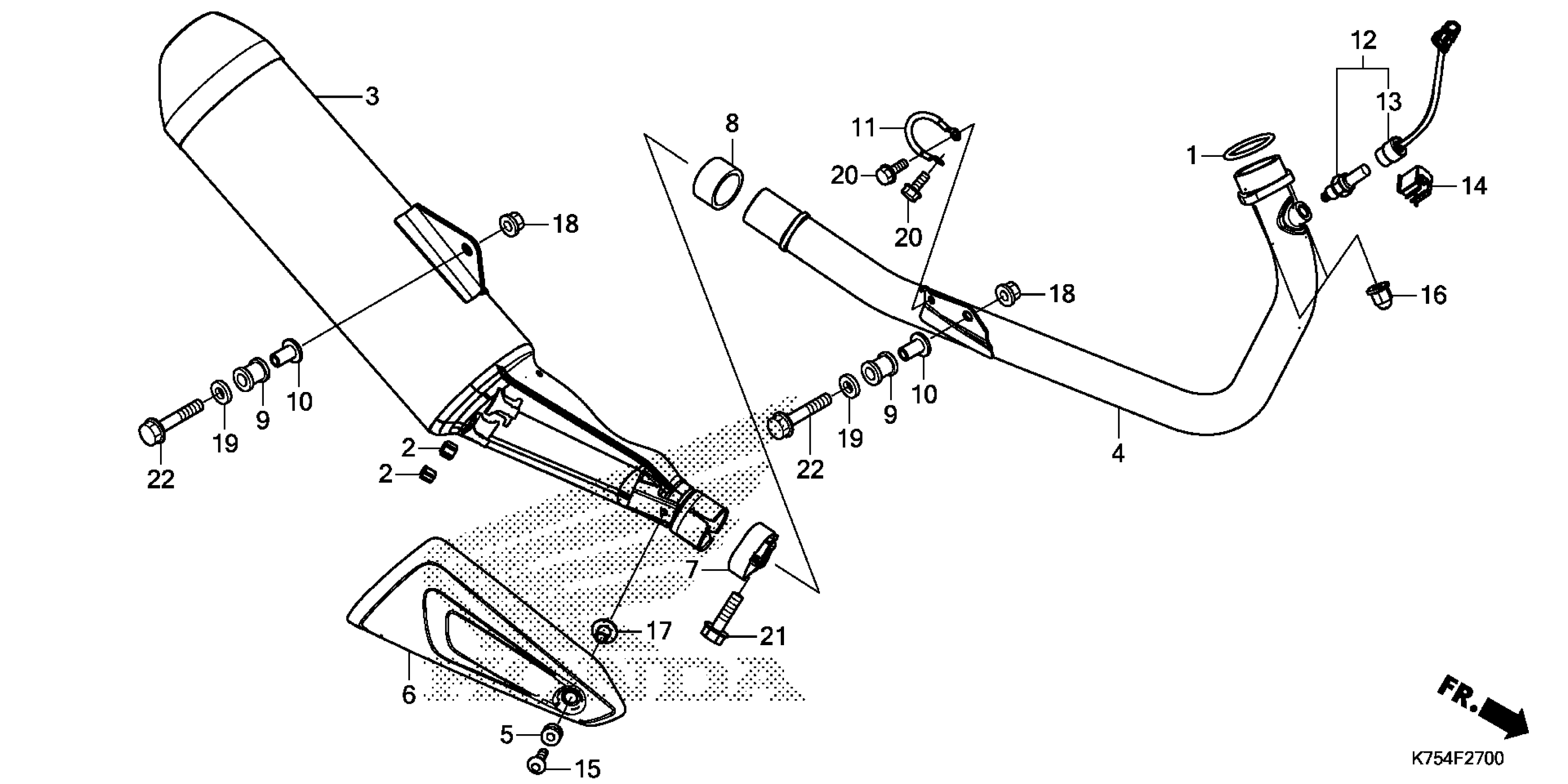

Honda CBR300RA5AC (20) MOTORCYCLE, THA, VIN# MLHNC515-L5600001 TO MLHNC515-L5699999 MUFFLER Diagram

GASKET, EX. PIPE

18291-MEB-670

$4.92

RUBBER, PROTECTOR

18293-MN0-000

$2.13

MUFFLER (COO) This part replaces 18310-K75-A50.

18310-K75-305

$836.51

MUFFLER (COO)

18310-K75-305

$836.51

PIPE, EX.

18320-K75-A50

$138.02

RUBBER A, PROTECTOR

18320-196-000

$2.67

COVER, MUFFLER

18355-K33-D00

$44.93

BAND, MUFFLER

18373-K33-D00

$19.75

GASKET, MUFFLER

18392-KYJ-901

$7.01

RUBBER, MUFFLER MOUNTING

18421-K75-A50

$6.30

COLLAR, MUFFLER MOUNTING This part replaces 18422-KAF-700.

18422-MAL-600

$5.92

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.92

SUB-HARNESS, OXYGEN SENSOR GROUND

32200-K33-D00

$2.61

SENSOR, OXYGEN

36532-K33-D01

$104.26

WIRE, OXYGEN SENSOR

36533-K33-D01

$52.39

COVER, SENSOR (O2)

36538-K33-D00

$13.05

SCREW, PAN (6X20)

90118-MGZ-J00

$1.49

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.75

COLLAR, HEAD SIDE COVER

90502-KGB-610

$2.11

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

WASHER, PLAIN (8MM)

94103-08000

$1.49

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

BOLT, FLANGE (8X38)

95701-08038-02

$4.37

BOLT, FLANGE (8X50)

95701-08050-00

$2.28
