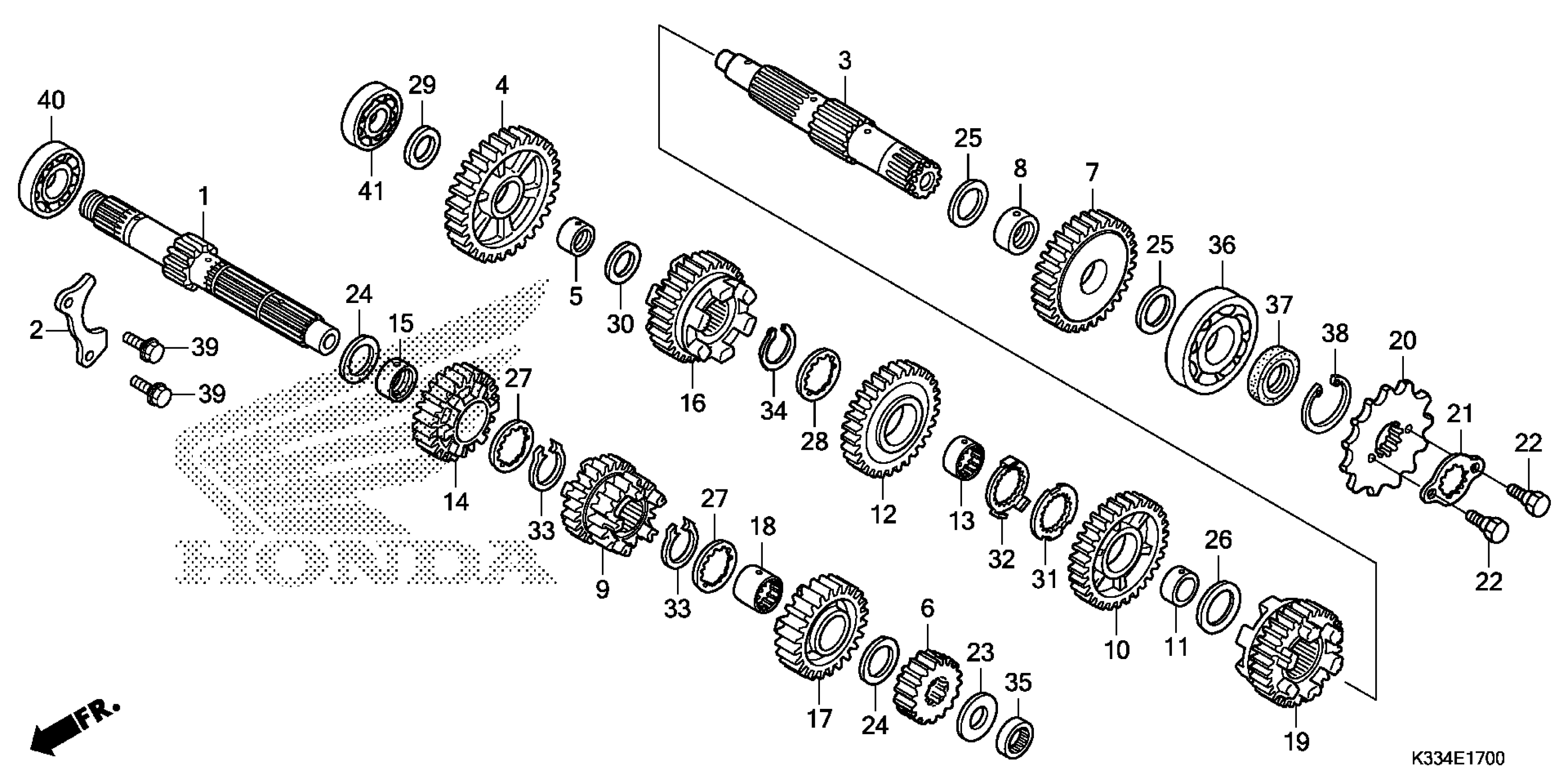

Honda CBR300RA5AC (18) MOTORCYCLE, THA, VIN# MLHNC515-J5400001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (12T) (A)(WHITE)

23211-K33-D00

$36.89

1

MAINSHAFT (12T) (B)(BLUE)

23212-K33-D00

$38.66

2

PLATE, BEARING SETTING

23212-KYJ-900

$2.41

3

COUNTERSHAFT

23221-KZZ-901

$40.05

4

GEAR, COUNTERSHAFT FIRST (41T)

23411-K33-D00

$29.00

5

COLLAR (20X23X10.5)

23412-KYJ-900

$13.56

6

GEAR, MAINSHAFT SECOND (16T)

23421-K33-D00

$12.59

7

GEAR, COUNTERSHAFT SECOND (36T)

23431-K33-D00

$21.39

8

COLLAR (22X25X11)

23432-KYJ-900

$10.25

9

GEAR, MAINSHAFT THIRD & FOURTH (20T/20T)

23441-K33-D00

$51.69

10

GEAR, COUNTERSHAFT THIRD (33T)

23451-K33-D00

$24.05

11

COLLAR (25X28X10)

23452-KYJ-900

$10.89

12

GEAR, COUNTERSHAFT FOURTH (27T)

23471-K33-D00

$27.93

13

COLLAR, SPLINE (25X10)

23472-KYJ-900

$16.10

14

GEAR, MAINSHAFT FIFTH (24T)

23481-K33-D00

$25.67

15

BUSH (20X23X17.4)

23482-KYJ-900

$31.15

16

GEAR, COUNTERSHAFT FIFTH (28T)

23491-K33-D00

$40.77

17

GEAR, MAINSHAFT SIXTH (26T)

23501-K33-D00

$27.43

18

COLLAR, SPLINE (23MM)

23502-KYJ-900

$21.59

19

GEAR, COUNTERSHAFT SIXTH (27T)

23511-K33-D00

$42.30

20

SPROCKET, DRIVE (14T)

23801-KYJ-901

$12.72

21

PLATE, FIXING

23802-KYJ-900

$2.64

22

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

23

WASHER (17X26X1.0)

90405-KYJ-900

$1.49

24

WASHER (20X27X1.0)

90406-KYJ-900

$1.49

25

WASHER (22X29X1.0)

90407-KYJ-900

$1.49

26

WASHER (25X32X1.0)

90408-KYJ-900

$1.49

27

WASHER, SPLINE (20X26X1.6)

90451-KYJ-900

$1.49

28

WASHER, SPLINE (25X31X1.0)

90452-KYJ-900

$1.49

29

WASHER (17X28X1.0)

90453-KYJ-900

$1.49

30

WASHER B, THRUST (20MM)

90454-KPS-900

$1.49

31

WASHER, SPLINE (25X42X1.6)

90454-KYJ-900

$1.52

32

WASHER, LOCK (25MM)

90455-KYJ-900

$32.30

33

CIRCLIP (OUTER) (20MM)

90601-KYJ-900

$8.43

34

CIRCLIP (OUTER) (25MM)

90602-KYJ-900

$7.08

35

BEARING, NEEDLE (17X27X13)

91003-KYJ-901

$21.45

36

BEARING, RADIAL BALL (63/22)

91005-KYJ-901

$21.72

37

OIL SEAL (22X36X5)

91207-KYJ-901

$2.92

38

CIRCLIP (INNER) (37MM)

94520-37000

$2.18

39

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

40

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

41

BEARING, RADIAL BALL (6203U)

96140-62030-00

$18.59
