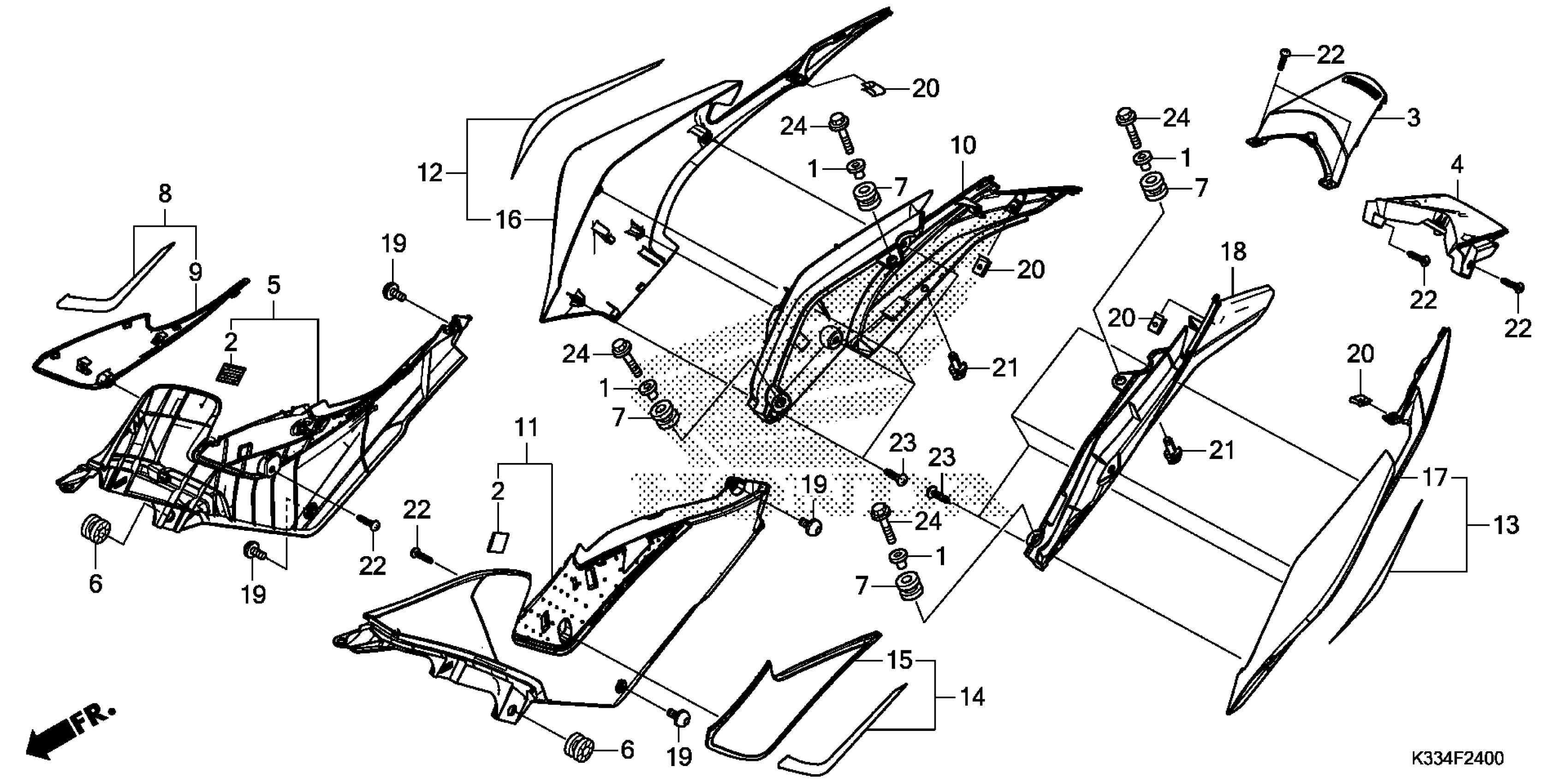

Honda CBR300RA5AC (18) MOTORCYCLE, THA, VIN# MLHNC515-J5400001 SIDE COVER@REAR COWL Diagram

#

Description
Price

1

COLLAR, AIR CLEANER MOUNTING

17232-KYJ-900

$1.49

2

FASTENER B, DUAL LOCK (20X30)

17581-MGZ-J00

$2.44

3

COWL SET, RR. CENTER (UPPER) (TYPE1) (WL)

83450-K75-TB0ZB

$32.18

3

COWL SET, RR. CENTER (UPPER) (TYPE3) (WL)

83450-K75-V10ZB

$34.10

4

COWL, RR. CENTER (LOWER)

83501-K33-D00

$8.34

5

COVER ASSY., R. SIDE

83505-K33-D00

$62.95

6

RUBBER, SIDE COVER

83545-K33-D00

$2.11

7

RUBBER, SIDE COVER

83545-KCJ-690

$1.49

9

PANEL, R. SIDE *NH436M* (MAT GUNPOWDER BLACK METALLIC)

83560-K33-D00ZC

$20.95

9

PANEL, R. SIDE *R380* (GRAND PRIX RED)

83560-K33-D00ZK

$18.05

10

COWL, R. RR.

83600-K33-D00

$21.13

11

COVER ASSY., L. SIDE

83605-K33-D00

$50.56

12

COVER SET, R. RR. (TYPE3) (WL)

83620-K75-TB0ZA

$34.34

12

COVER SET, R. RR. (TYPE1) (WL)

83620-K75-TB0ZC

$34.38

13

COVER SET, L. RR. (TYPE3) (WL)

83630-K75-TB0ZA

$30.66

13

COVER SET, L. RR. (TYPE1) (WL)

83630-K75-TB0ZC

$30.69

15

PANEL, L. SIDE *NH436M* (MAT GUNPOWDER BLACK METALLIC)

83660-K33-D00ZC

$19.62

15

PANEL, L. SIDE *R380* (GRAND PRIX RED)

83660-K33-D00ZJ

$17.11

18

COWL, L. RR.

83700-K33-D00

$21.13

19

SCREW, PAN (6X10)

90132-KPP-T00

$1.49

20

NUT, CLIP (4MM)

90344-KTE-910

$1.49

21

CLIP, TRIM (Honda Code 4529715)

90683-GAZ-003

$3.80

22

SCREW, TAPPING (4X12)

93903-24380

$1.49

23

SCREW, TAPPING (5X12)

93903-25280

$1.49

24

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
