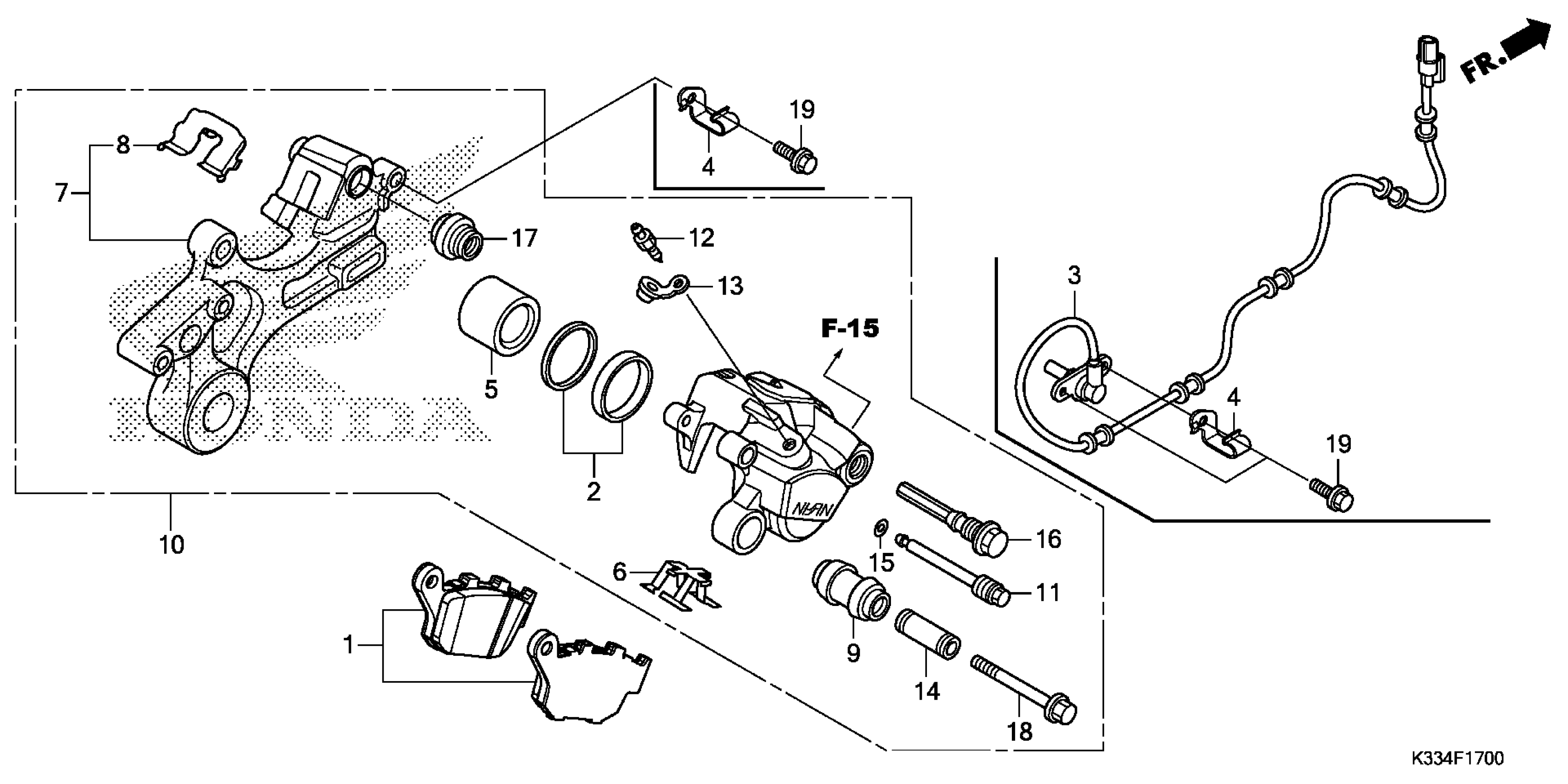

Honda CBR300RA5AC (18) MOTORCYCLE, THA, VIN# MLHNC515-J5400001 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR. This part replaces 06435-KYJ-901.

06435-KYJ-902

$37.49

PAD SET, RR.

06435-KYJ-902

$37.49

SEAL SET, PISTON

06451-443-405

$13.23

SENSOR, RR. WHEEL SPEED

38510-KYJ-911

$207.90

CLAMP, SPEED SENSOR WIRE

38517-KYJ-910

$3.85

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-MBB-006

$6.19

BRACKET, RR.

43110-KFK-631

$135.64

RETAINER

43112-KT7-761

$9.43

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR. (NISSIN) (MSDS)

43150-K33-D51

$180.28

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

RING, STOPPER

45111-MAJ-G41

$3.80

BOLT, PIN

45131-MN9-006

$15.97

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
