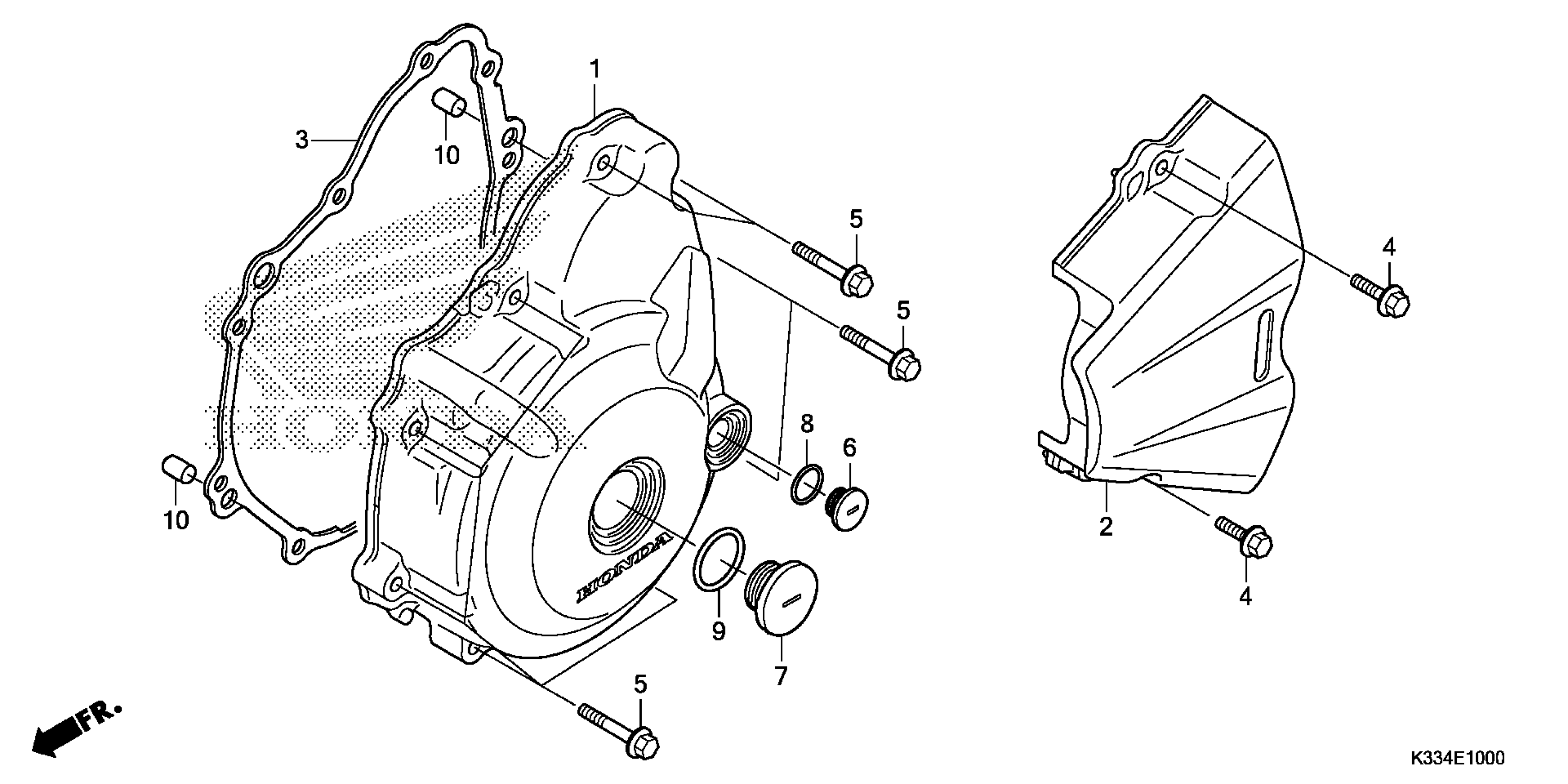

Honda CBR300RA5AC (18) MOTORCYCLE, THA, VIN# MLHNC515-J5400001 LEFT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, L. CRANKCASE

11341-K75-T50

$35.43

2

COVER, L. RR.

11360-KYJ-900

$11.69

3

GASKET, L. CRANKCASE COVER This part replaces 11395-KYJ-900.

11395-KYJ-901

$5.19

3

GASKET, L. CRANKCASE COVER

11395-KYJ-901

$5.19

4

BOLT, FLANGE (6X25) (NSHF)

90012-KYJ-900

$1.49

5

BOLT, FLANGE (6X30) (NSHF)

90013-KYJ-900

$1.49

6

CAP, ALTERNATOR

90084-KPP-860

$2.92

7

CAP (30MM)

90087-KPP-860

$6.36

8

O-RING (13.8X2.5)

91303-377-000

$3.42

9

O-RING (30MM)

91356-KWV-000

$1.49

10

PIN B, DOWEL (8X14)

94302-08140

$2.25
