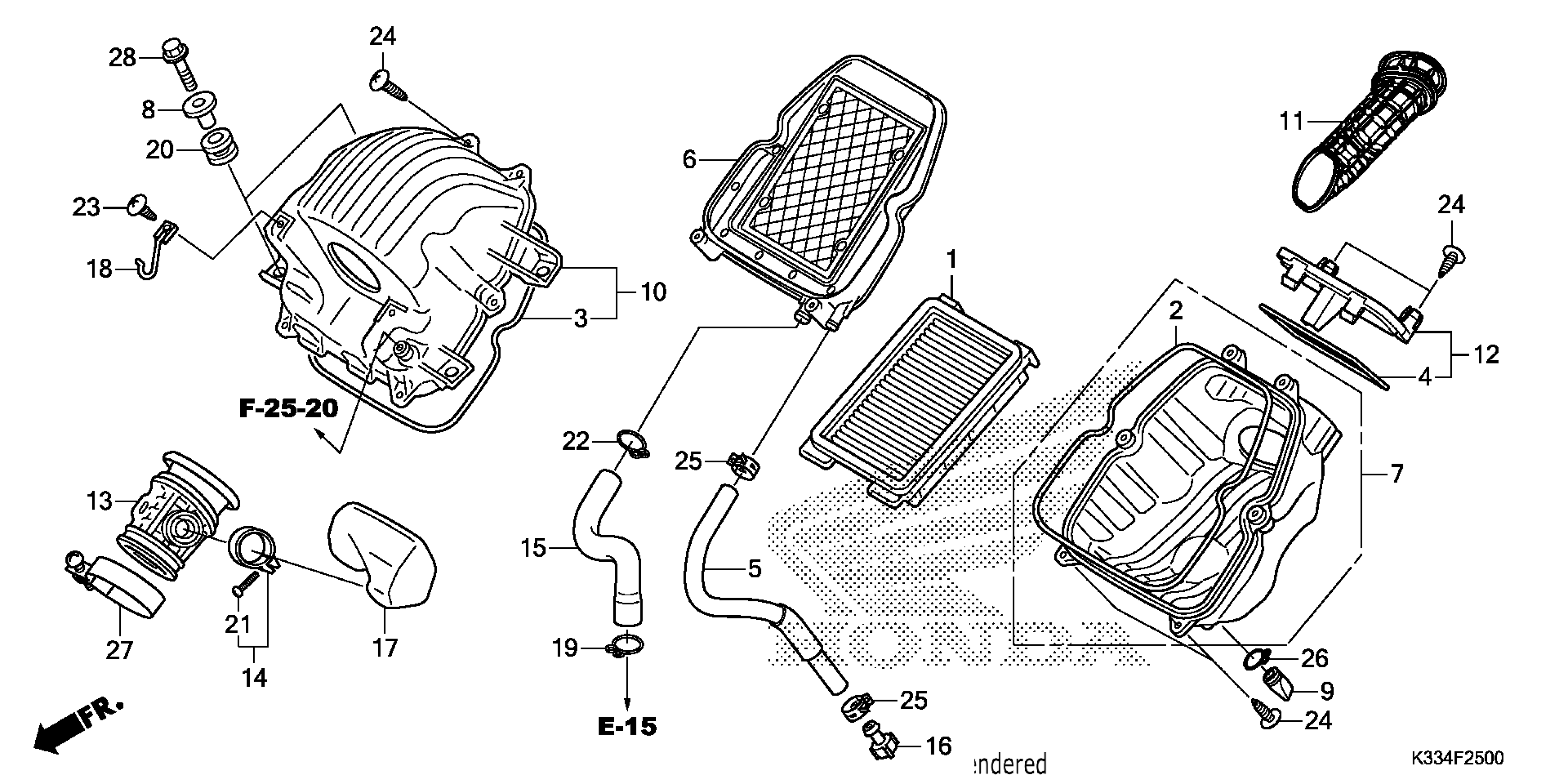

Honda CBR300RA5AC (18) MOTORCYCLE, THA, VIN# MLHNC515-J5400001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-KYJ-900

$13.57

2

SEAL, AIR CLEANER

17213-KYJ-900

$1.85

3

SEAL, AIR CLEANER

17213-KYJ-900

$1.85

4

SEAL, LID

17214-KYJ-900

$1.49

5

TUBE, AIR CLEANER DRAIN

17215-KYJ-901

$12.56

6

HOLDER, ELEMENT

17220-KYJ-900

$10.30

7

CASE SUB-ASSY., AIR CLEANER

17225-KYJ-900

$9.84

8

COLLAR, AIR CLEANER MOUNTING

17232-KYJ-900

$1.49

9

TUBE, AIR CLEANER DRAIN

17234-KCW-871

$2.57

10

COVER SUB-ASSY., AIR CLEANER

17235-KYJ-900

$16.54

11

DUCT, INLET

17240-K33-D00

$16.02

12

LID SUB-ASSY., AIR CLEANER

17245-KYJ-901

$4.02

13

TUBE, AIR CLEANER CONNECTING

17253-K33-D00

$26.83

14

BAND, RESONATOR (28)

17255-MCG-000

$9.51

15

TUBE, BREATHER

17265-KYJ-900

$5.48

16

PLUG, BREATHER TUBE

17370-419-700

$3.74

17

RESONATOR

17410-KYJ-900

$6.51

19

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

20

RUBBER, SIDE COVER

83545-KCJ-690

$1.49

21

SCREW, PAN (5X25)

93500-05025-0G

$1.49

22

CLIP, AIR HOSE (16MM)

90646-657-000

$7.32

24

SCREW, TAPPING (5X20)

93903-25480

$1.49

25

CLAMP, TUBE (D12) This part replaces 95002-41200-00.

95002-41200-04

$2.34

26

CLIP, TUBE (C12)

95002-80000

$1.49

27

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56250

$5.42

28

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
