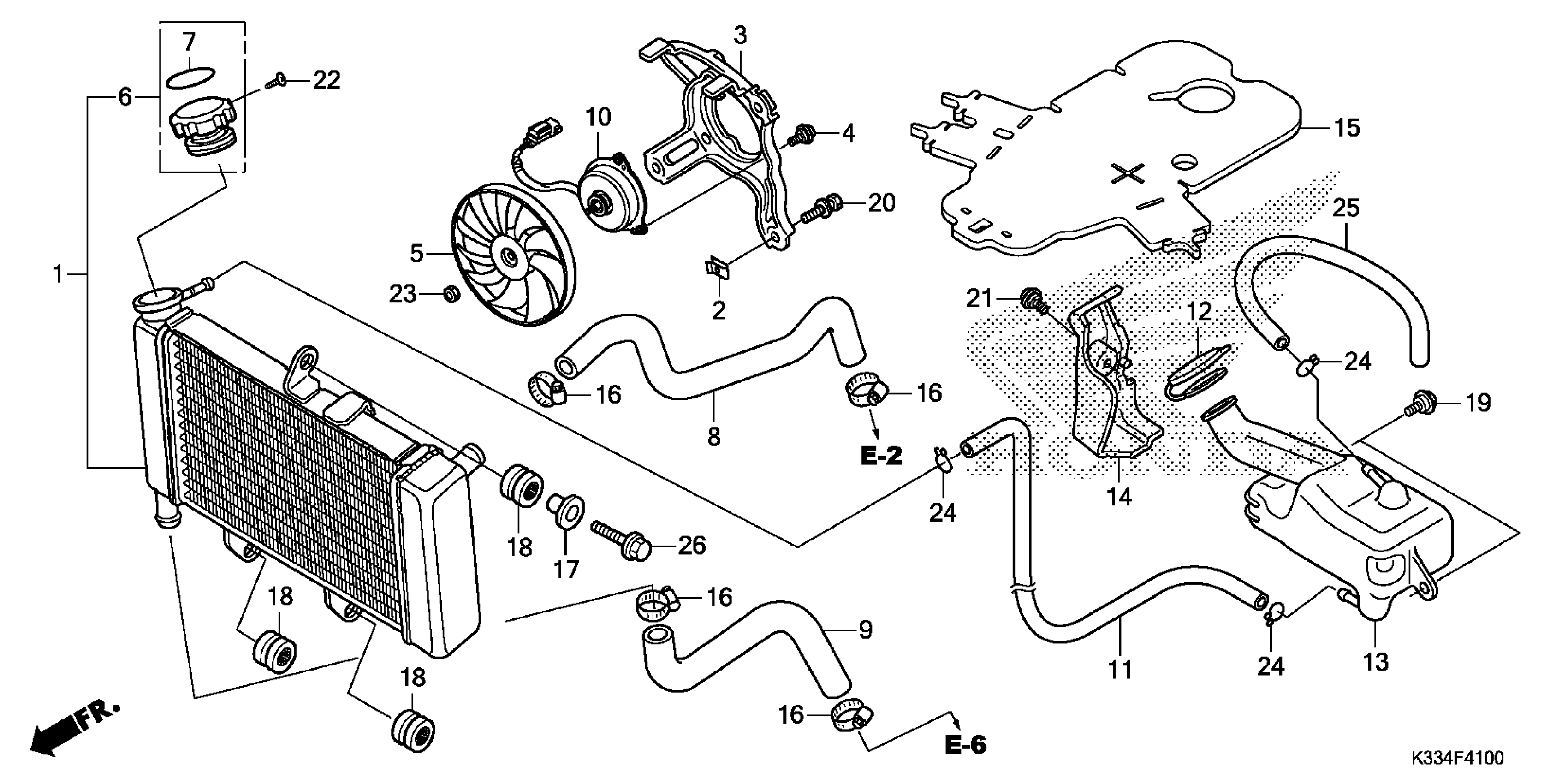

Description

Price

1

RADIATOR (COO)

19010-KYJ-305

$115.79

2

NUT, SETTING (6MM)

19014-KEA-003

$3.10

3

SHROUD (COO)

19015-KYJ-305

$19.33

4

SCREW, PAN (4X8.5)

19016-KEA-003

$1.62

5

FAN, COOLING

19020-KVZ-631

$29.32

6

CAP, RADIATOR (TOYO)

19045-KPC-D51

$38.90

7

SEAL, RADIATOR CAP

19055-KPC-D51

$29.82

8

HOSE, RADIATOR (UPPER)

19062-KYJ-900

$14.56

9

HOSE, RADIATOR (LOWER)

19067-KYJ-900

$14.15

10

MOTOR ASSY., FAN

19080-KYJ-901

$111.84

11

TUBE, RADIATOR BREATHER

19105-KYJ-900

$9.57

12

CAP, RESERVE TANK

19109-KPC-640

$4.80

13

TANK, RADIATOR RESERVE

19110-KYJ-900

$8.36

14

COVER, RADIATOR RESERVE TANK

19111-KYJ-900

$2.92

15

RUBBER, HEAT GUARD

19125-KYJ-900

$12.49

16

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

17

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$4.13

18

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

19

BOLT, FLANGE (6MM)

90111-162-000

$2.89

20

BOLT-WASHER (6X16)

90120-KCR-003

$4.39

21

SCREW, PAN (5X11.5)

91509-GE2-760

$2.38

22

SCREW, TAPPING (3X6)

93901-22020

$1.49

23

NUT, FLANGE (3MM)

90315-MFL-003

$2.33

24

CLIP, TUBE (B10)

95002-02100

$1.90

25

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

26

BOLT, FLANGE (6X22)

95701-06022-07
