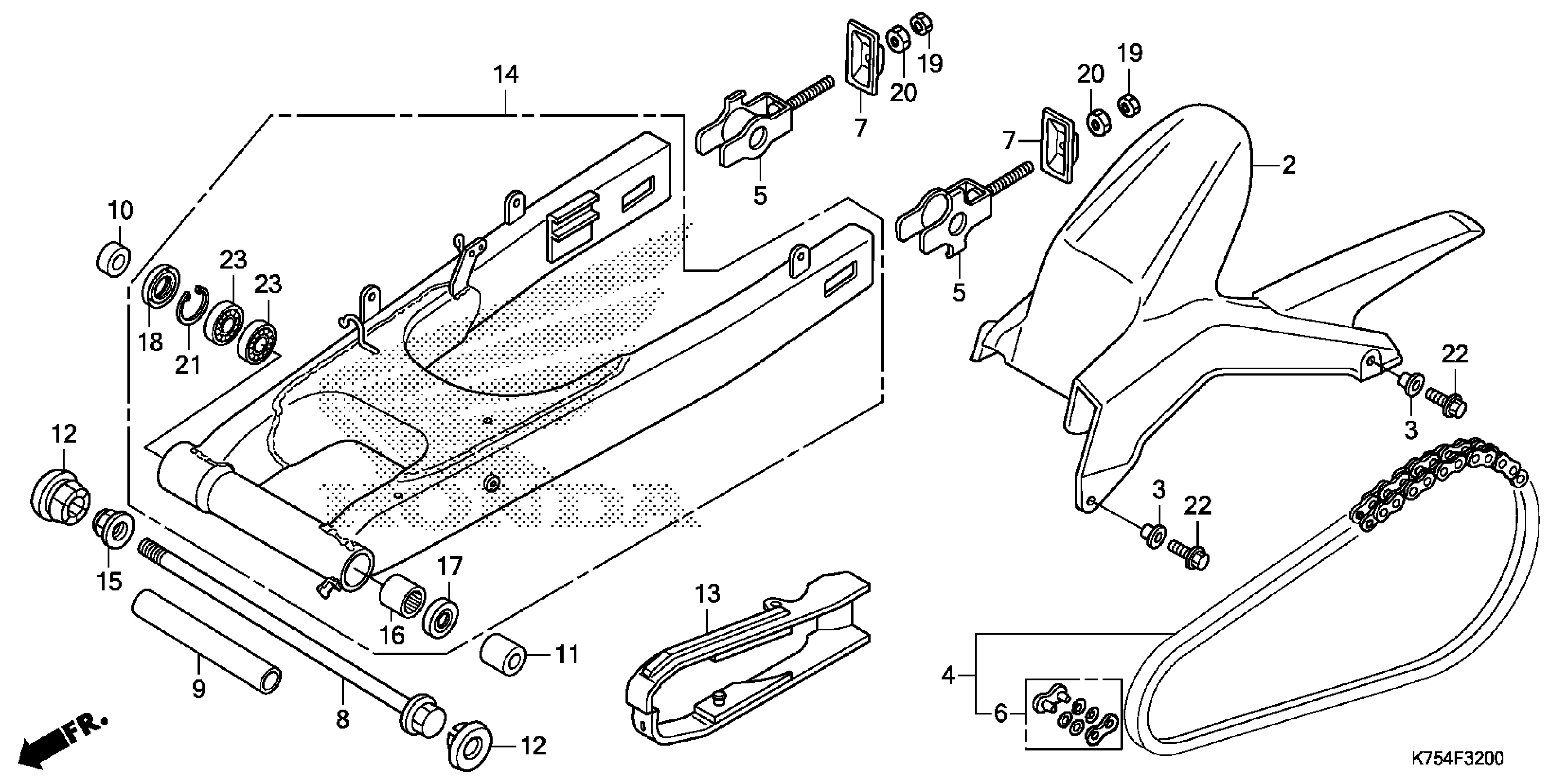

Honda CBR300R5AC (22) MOTORCYCLE, THA, VIN# MLHNC511-N5800001 SWINGARM Diagram

#

Description
Price

2

CASE, DRIVE CHAIN

40510-KYJ-900

$30.85

3

COLLAR

40511-KYJ-900

$1.49

4

CHAIN, DRIVE (DID520VF-120ZB) (DAIDO) (STANDARD LINK 108L) This part replaces 40540-KYJ-901.

40540-KYJ-902

$138.46

4

CHAIN, DRIVE (DID520VF-120ZB) (DAIDO) (STANDARD LINK 108L)

40540-KYJ-902

$138.46

5

ADJUSTER, CHAIN

40543-KYJ-900

$8.17

6

MASTER LINK (DAIDO) This part replaces 40545-KYJ-901.

40545-KYJ-902

$14.88

6

MASTER LINK (DAIDO)

40545-KYJ-902

$14.88

7

CAP, SWINGARM END

40546-KYJ-900

$3.24

8

BOLT, SWINGARM PIVOT

52101-KYJ-900

$15.00

9

COLLAR, PIVOT DISTANCE

52102-ML4-000

$27.95

10

COLLAR B, RR. SWINGARM PIVOT

52105-MJ0-000

$5.62

11

COLLAR, PIVOT

52106-KYJ-900

$12.97

12

CAP, SWINGARM PIVOT

52161-KYJ-900

$2.34

13

SLIDER, CHAIN

52170-KYJ-900

$6.83

14

SWINGARM SUB-ASSY., RR.

52200-KYJ-900

$252.85

15

NUT, U (14MM) (FUJI SEIMITSU)

90305-KCJ-951

$6.05

16

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

16

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$36.85

17

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

18

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

18

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.46

19

NUT, HEX. (8MM)

94002-08000-0S

$1.49

20

NUT, HEX. (8MM) NUT, FLANGE (10MM)

94031-08000

$1.49

21

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

22

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

23

BEARING, RADIAL BALL (6202)

96100-62020-10

$14.49
