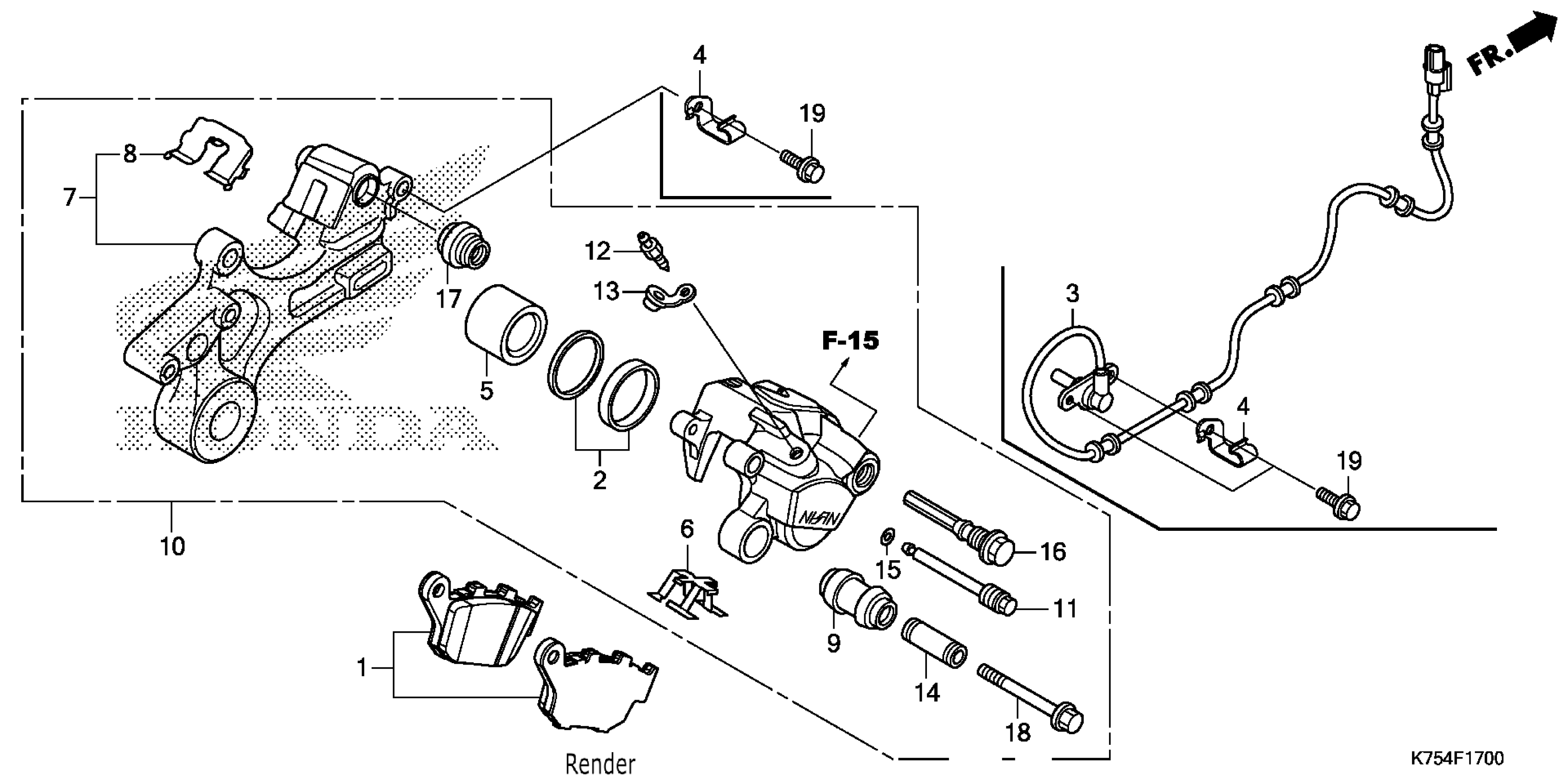

Honda CBR300R5AC (22) MOTORCYCLE, THA, VIN# MLHNC511-N5800001 REAR BRAKE CALIPER Diagram

#

Description
Price

2

SEAL SET, PISTON

06451-443-405

$13.23

5

PISTON

43107-KT7-761

$37.87

6

SPRING, PAD

43108-MBB-006

$6.19

7

BRACKET, RR.

43110-KYJ-901

$64.41

8

RETAINER

43112-KT7-761

$9.43

9

BOOT, SLEEVE

43132-KT7-761

$8.52

10

CALIPER SUB-ASSY., RR. (NISSIN)

43150-KYJ-901

$178.97

11

PIN, HANGER

43215-KZ4-J41

$5.25

12

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

13

CAP, BLEEDER

43353-461-771

$5.05

14

SLEEVE

45111-MA3-006

$13.38

15

RING, STOPPER

45111-MAJ-G41

$3.80

16

BOLT, PIN

45131-MN9-006

$15.97

17

BOOT B

45133-MA3-006

$5.46

18

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07
