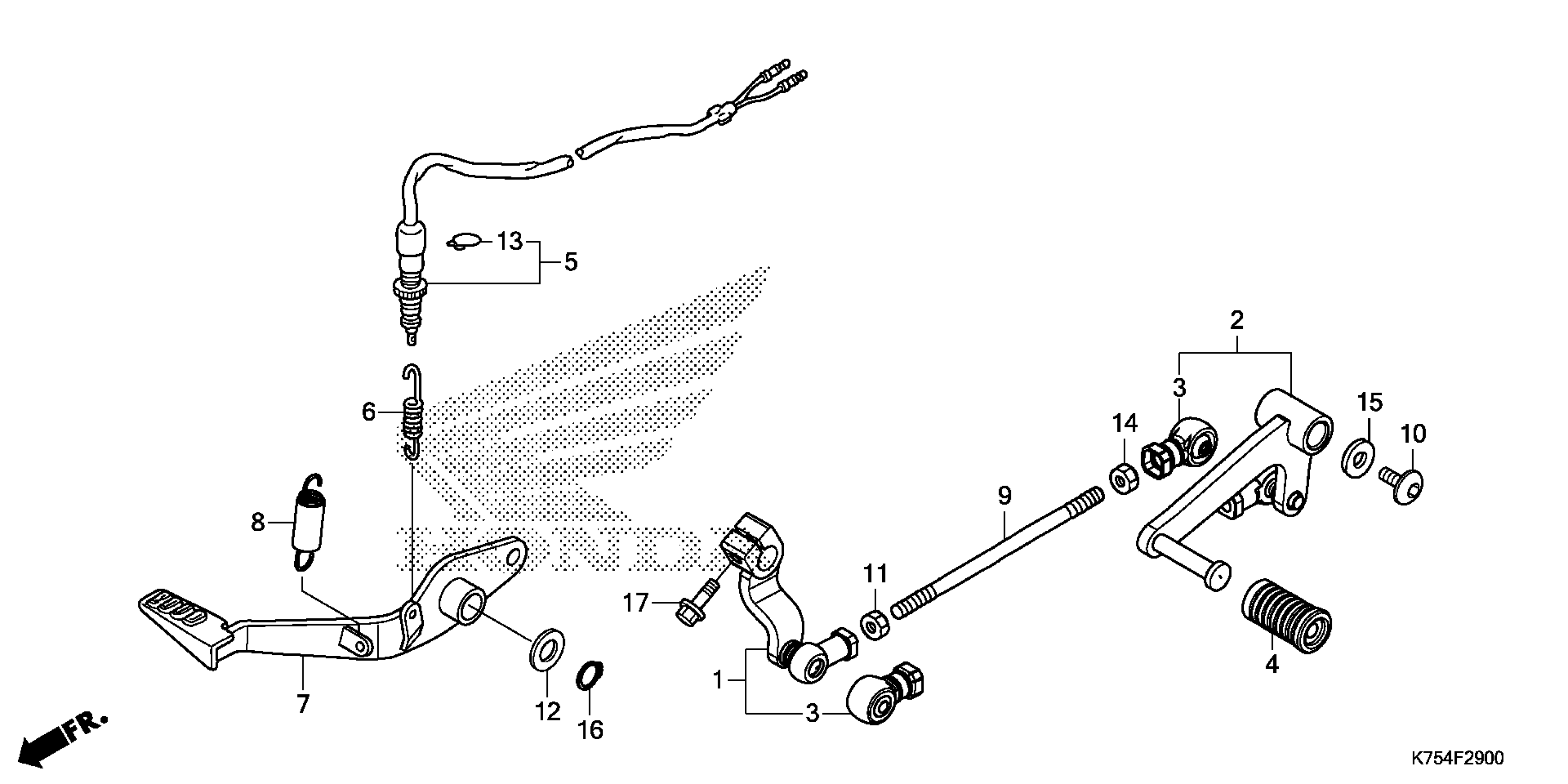

Honda CBR300R5AC (22) MOTORCYCLE, THA, VIN# MLHNC511-N5800001 PEDAL Diagram

#

Description
Price

1

ARM, GEARSHIFT (COO) This part replaces 24710-KYJ-000.

24710-KYJ-305

$25.16

1

ARM, GEARSHIFT (COO)

24710-KYJ-305

$25.16

2

PEDAL, GEARSHIFT (COO) This part replaces 24720-KYJ-000.

24720-KYJ-305

$21.91

2

PEDAL, GEARSHIFT (COO)

24720-KYJ-305

$21.91

3

COVER, DUST

24724-MBW-D21

$6.98

4

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

5

SWITCH ASSY., RR. STOP

35350-KYJ-902

$16.43

6

SPRING, STOP SWITCH

35357-HP0-A00

$2.56

7

PEDAL, RR. BRAKE (COO)

46500-KYJ-305

$19.59

7

PEDAL, RR. BRAKE (COO) This part replaces 46500-KYJ-900.

46500-KYJ-305

$19.59

8

SPRING ASSY., BRAKE PEDAL

46513-KYJ-900

$3.03

9

BOLT, TIE ROD

90105-KYJ-900

$2.28

10

SCREW, PAN (6X10)

90132-KPP-T00

$1.49

11

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

90301-KYJ-900

$2.34

12

WASHER (15.2X25)

90557-230-000

$2.39

13

CLIP, SWITCH COVER

90601-KAF-003

$2.67

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

WASHER, PLAIN (6MM)

94103-06700

$1.49

16

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

17

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
