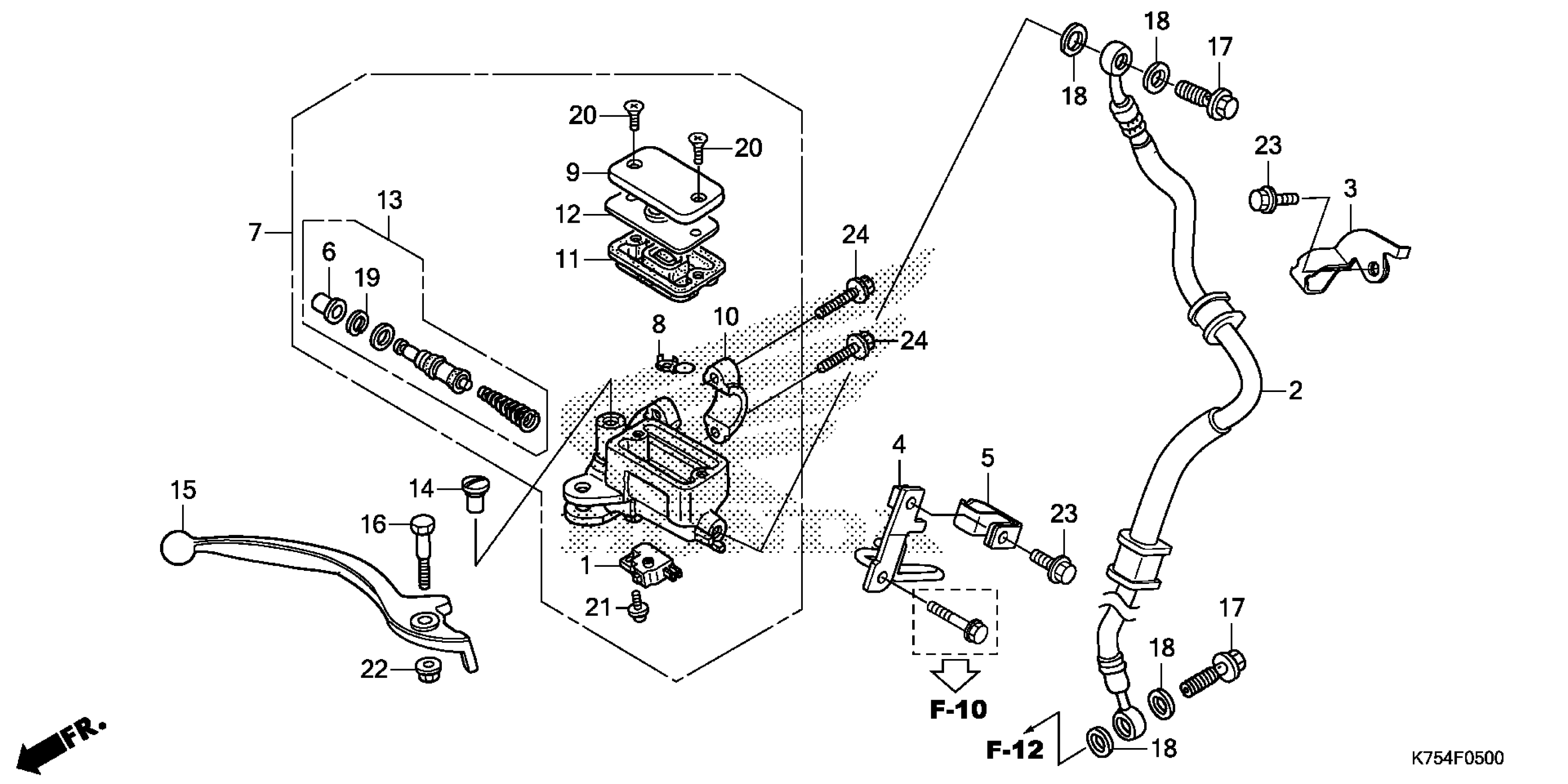

Honda CBR300R5AC (22) MOTORCYCLE, THA, VIN# MLHNC511-N5800001 FRONT BRAKE MASTER CYLINDER (1) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

HOSE, FR. BRAKE

45125-KYJ-D21

$25.08

CLAMP, FR. BRAKE HOSE

45155-KYJ-900

$1.90

STAY, BRAKE HOSE CLAMP

45156-KYJ-900

$16.03

CLAMP B, FR. BRAKE HOSE

45157-KYJ-900

$1.90

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) | Use up to Frame SN N5800152. This part replaces 45510-K33-D01.

45510-K33-305

$130.64

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) | Use up to Frame SN N5800152.

45510-K33-305

$130.64

M/C SUB ASSYFR BRK | Use from Frame SN N5800153.

45510-K33-D02

$77.05

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

DIAPHRAGM

45520-GE2-006

$9.58

PLATE, DIAPHRAGM

45521-K21-901

$2.34

MASTER CYLINDER SET | Use up to Frame SN N5800152.

45530-KVY-911

$26.57

MASTER CYLINDER SET (NISSIN) | Use from Frame SN N5800153.

45530-K03-M61

$38.48

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

LEVER, R. HANDLEBAR (COO)

53175-K26-305

$16.98

LEVER, R. HANDLEBAR (COO) This part replaces 53175-K26-901.

53175-K26-305

$16.98

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP | Use up to Frame SN N5800152.

90651-MA5-671

$2.66

CIRCLIP (INNER) (18.8) | Use from Frame SN N5800153.

90651-K03-M61

$1.49

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33
