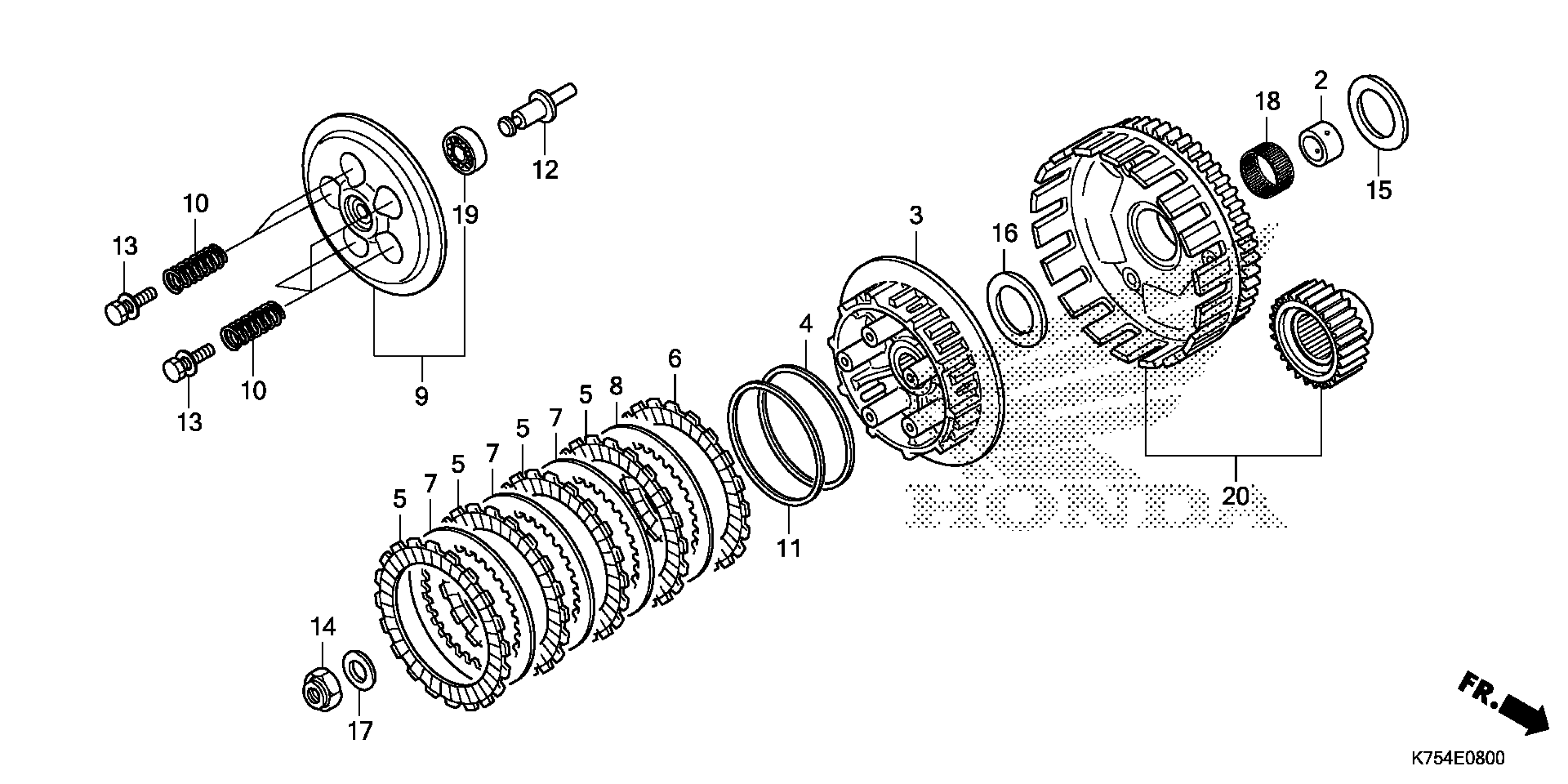

Honda CBR300R5AC (22) MOTORCYCLE, THA, VIN# MLHNC511-N5800001 CLUTCH Diagram

GUIDE A, CLUTCH (OUTER) (WHITE)

22116-K33-D00

$6.95

GUIDE B, CLUTCH (OUTER) (BLUE)

22117-K33-D00

$6.95

CENTER, CLUTCH

22121-KZZ-901

$46.71

SEAT, JUDDER SPRING

22125-KZZ-901

$17.21

DISK, CLUTCH FRICTION

22201-MGZ-J01

$17.53

DISK B, CLUTCH FRICTION

22202-KZZ-901

$19.41

PLATE, CLUTCH

22321-KYJ-902

$7.18

PLATE B, CLUTCH

22322-KZZ-901

$8.81

PLATE, CLUTCH PRESSURE

22350-KYJ-902

$40.88

SPRING, CLUTCH

22401-K33-D01

$6.76

SPRING, JUDDER

22402-KZZ-902

$19.15

PIN, CLUTCH LIFTER

22847-KZZ-900

$9.16

BOLT (6X1.0)

90050-KYJ-902

$1.49

NUT, SPECIAL (16MM)

90201-KYJ-900

$3.67

WASHER (20X40X2)

90404-KVK-900

$3.01

WASHER (20X40X2)

90404-KYJ-902

$2.89

WASHER (16MM)

90434-KPS-900

$2.05

BEARING, NEEDLE (28X33X16.8)

91012-KYJ-901

$6.13

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13

GEAR SET, PRIMARY DRIVEN

23121-K33-305

$269.08
