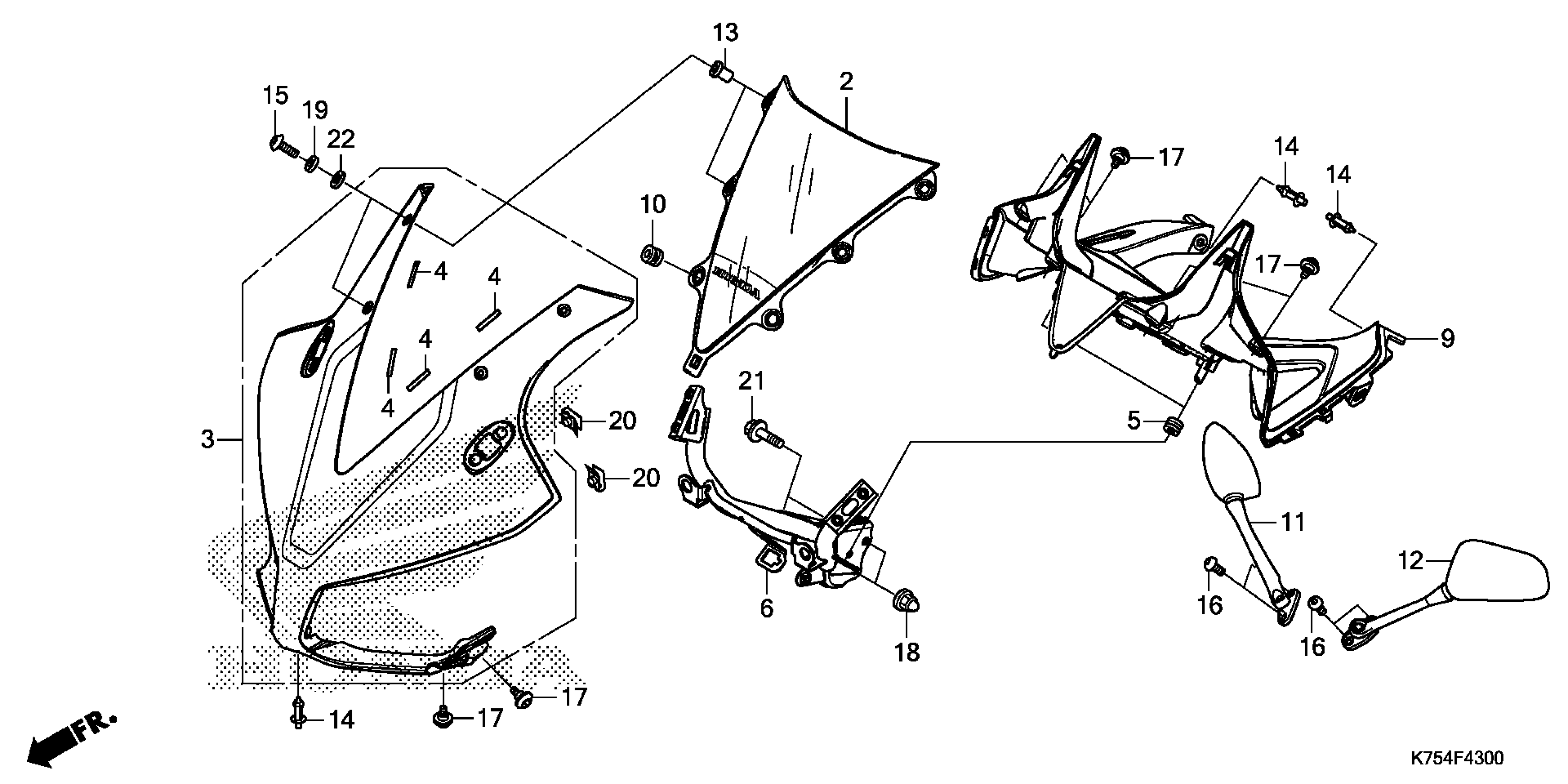

Honda CBR300R5A (21) MOTORCYCLE, THA, VIN# MLHNC510-M5700001 TO MLHNC510-M5799999 UPPER COWL Diagram

WINDSCREEN SET (TYPE1) (WL)

64100-K33-D00ZA

$58.75

COWL SET (UPPER) (TYPE2) (WL)

64200-K75-LJ0ZA

$65.56

COWL SET (UPPER) (TYPE1) (WL)

64200-K75-LJ0ZB

Unavailable

FILM, PROTECTOR

64215-MJC-A00

$3.31

RUBBER, SCREEN SETTING

64216-GJ2-730

$4.28

STAY, FR. COWL (UPPER)

64221-K33-D00

$54.53

COWL, FR. (INNER)

64260-K33-D00

$15.66

RUBBER, COWL (LOWER)

64535-MCJ-000

$2.41

MIRROR ASSY., R. BACK (COO) This part replaces 88110-K33-D01.

88110-K33-305

$65.02

MIRROR ASSY., R. BACK (COO)

88110-K33-305

$65.02

MIRROR ASSY., L. BACK (COO) This part replaces 88120-K33-D01.

88120-K33-305

$69.41

MIRROR ASSY., L. BACK (COO)

88120-K33-305

$69.41

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

RIVET, PUSH (7MM)

90116-KWT-900

$2.50

BOLT, SPECIAL (5X16)

90119-K33-D00

$0.65

BOLT, SOCKET (6X13)

90130-KPP-T00

$0.57

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

NUT, CAP (8MM)

90443-KTM-970

$0.71

WASHER, THRUST (5MM)

90504-964-000

$1.75

NUT, CLIP (5MM)

90677-KAN-T00

$0.59

BOLT, FLANGE (8X32)

95801-08032-00

$1.91

WASHER, SCREEN SETTING

64205-166-610

$2.04
