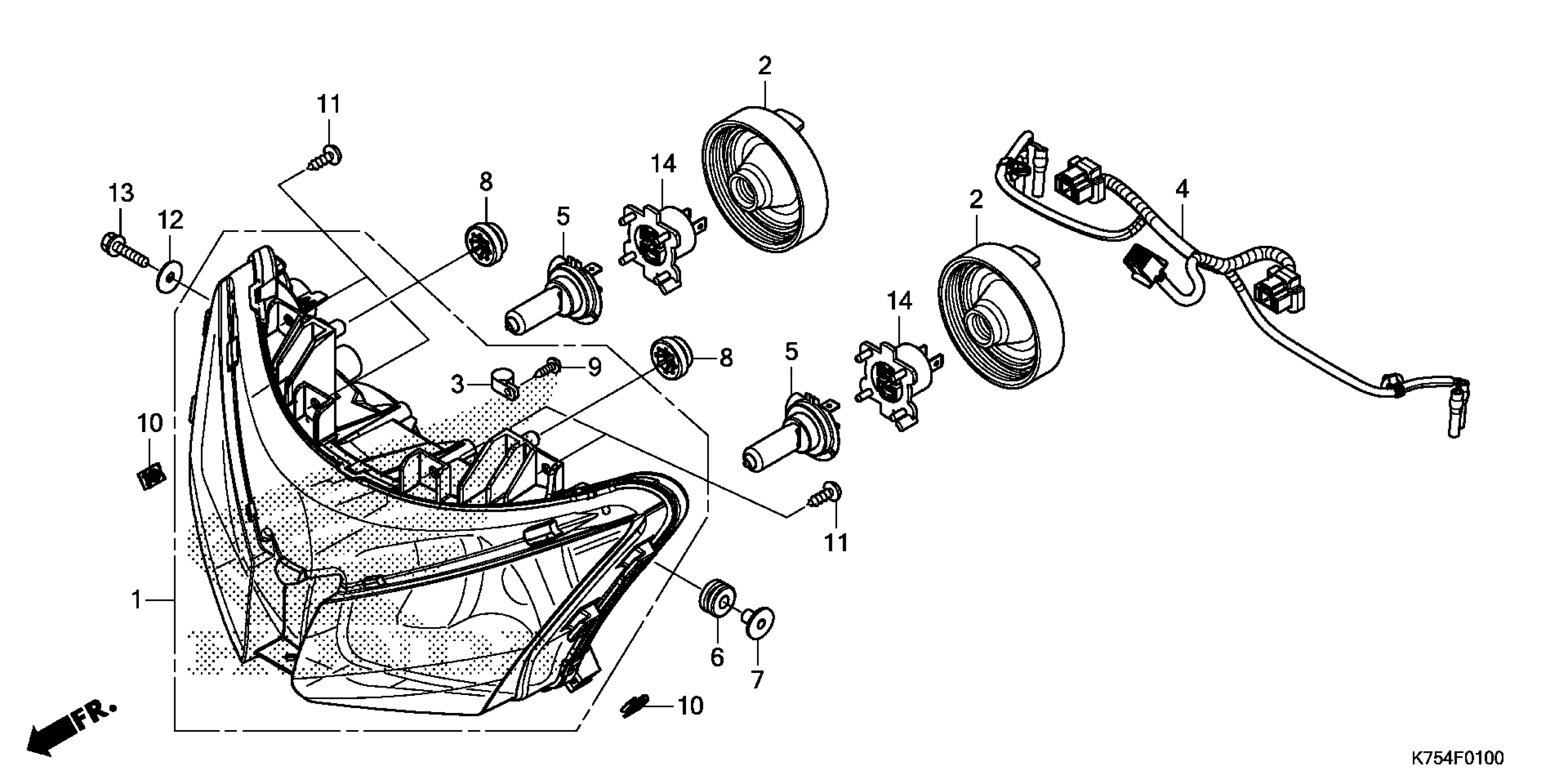

Honda CBR300R5A (21) MOTORCYCLE, THA, VIN# MLHNC510-M5700001 TO MLHNC510-M5799999 HEADLIGHT Diagram

#

Description

Price

1

HEADLIGHT UNIT (COO) This part replaces 33110-K33-A01.

33110-K33-305

$240.25

1

HEADLIGHT UNIT (COO)

33110-K33-305

$240.25

2

COVER, RUBBER

33112-KWR-003

$9.84

3

CLAMP

33115-K33-D01

$2.10

4

SOCKET

33120-K33-A01

$47.03

5

BULB, HEADLIGHT (12V 55W) (H7) (KOITO)

34901-MGZ-J01

$20.25

6

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

$3.37

7

COLLAR

61104-KZZ-900

$1.90

8

RUBBER, HEADLIGHT CASE MOUNTING

61304-KRY-900

$1.49

9

SCREW, TAPPING (4X12)

90111-K33-D01

$1.92

10

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

11

SCREW, TAPPING (4X12)

93903-24380

$1.49

12

WASHER, PLAIN (6MM)

94103-06800

$1.49

13

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

14

ADAPTER

33111-K33-D01

$7.36
