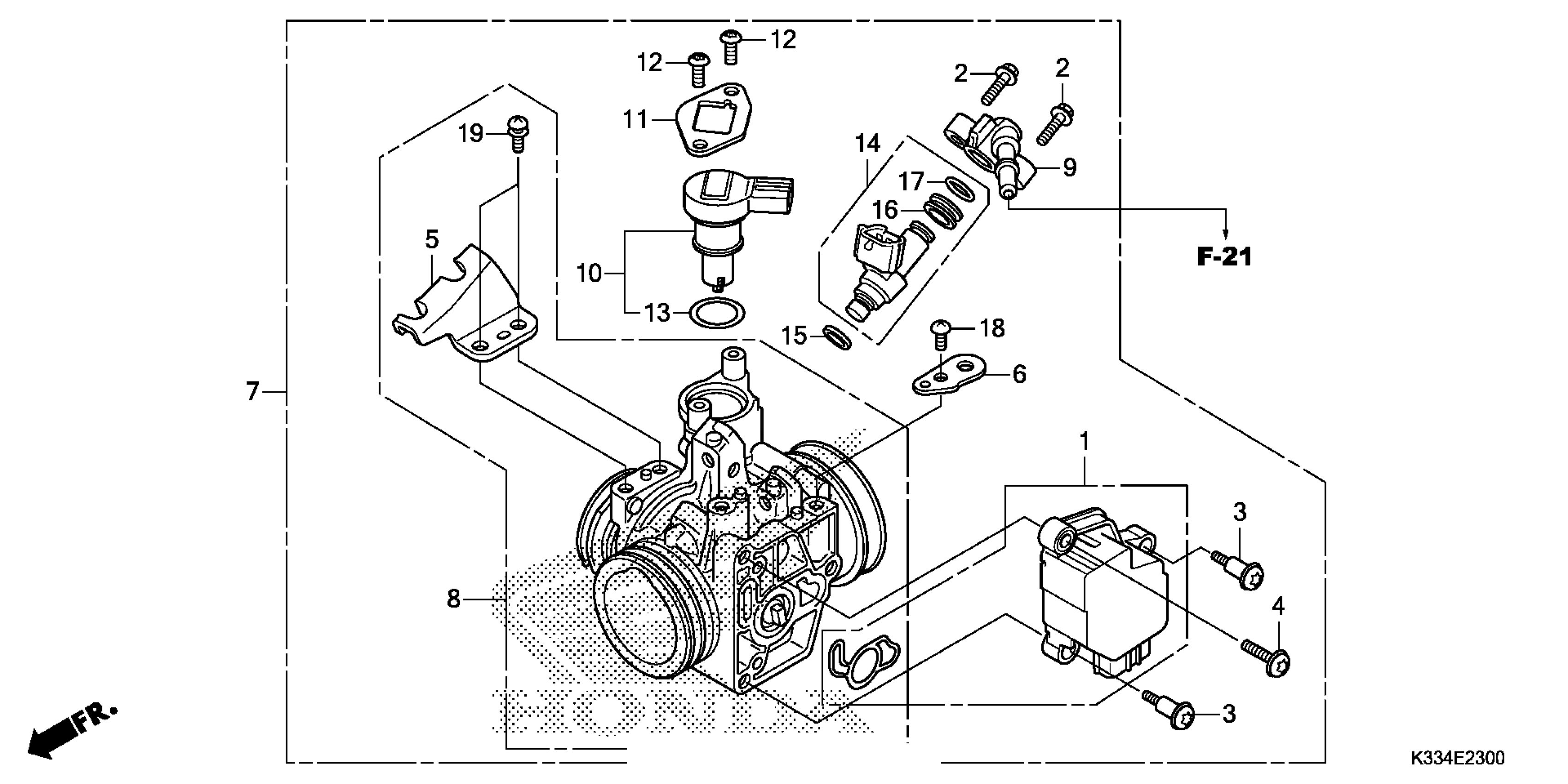

Honda CBR300R5A (18) MOTORCYCLE, THA, VIN# MLHNC510-J5400001 THROTTLE BODY Diagram

SENSOR SET

16060-KYJ-901

$71.38

BOLT, FLANGE (5X20)

16080-KPH-701

$4.63

SCREW, TORX (5X8.7)

16081-KYJ-901

$2.82

SCREW, TORX (5X17)

16082-KYJ-901

$2.23

STAY, WIRE

16169-MFR-671

$17.11

STAY, HARNESS CLAMP

16196-HP6-A01

$9.41

BODY ASSY., THROTTLE (GQ9JA B)

16400-KYJ-902

$280.77

BODY SET

16410-KYJ-902

$118.92

JOINT, INJECTOR

16422-HP5-602

$5.37

VALVE SET, IDLE AIR CONTROL

16430-KYJ-901

$160.76

PLATE, IDLE AIR CONTROL VALVE

16432-HP5-601

$3.62

SCREW, TORX

16433-HN8-A61

$1.49

O-RING (17.8X1.9)

16435-HN8-A61

$9.12

INJECTOR ASSY., FUEL

16450-MFE-641

$171.53

SEAL RING, INJECTOR

16472-MCW-000

$2.39

CUSHION RING, INJECTOR

16473-P7A-004

$6.90

O-RING (7.8X1.9)

91301-P7A-004

$3.35

SCREW, PAN (5X10)

93500-05010-0H

$1.49

SCREW, PAN (5X10) This part replaces 93500-05010-08.

93500-05010-0H

$1.49

SCREW, PAN (5X10) This part replaces 93500-05010-1H.

93500-05010-0H

$1.49

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49
