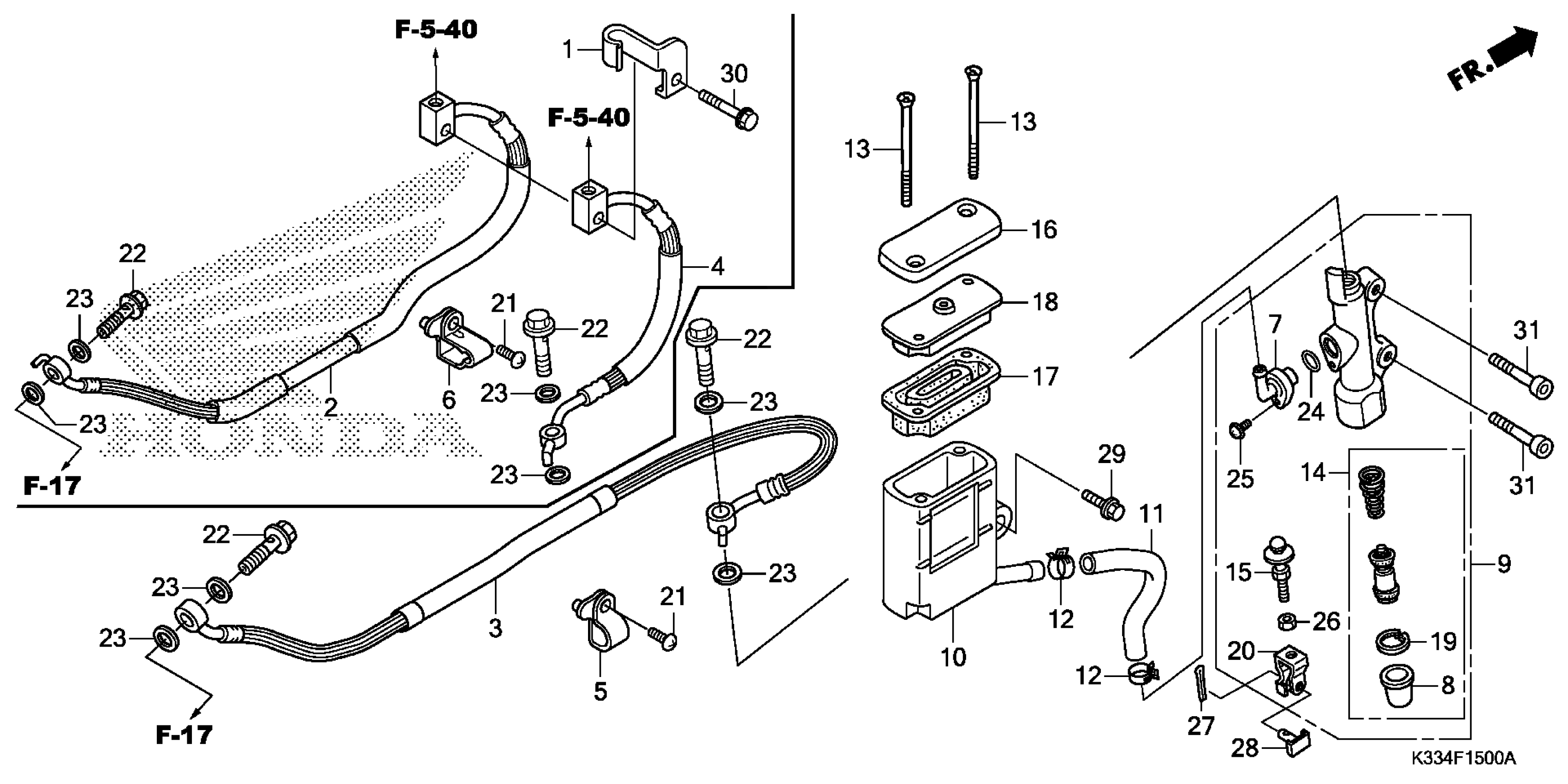

Honda CBR300R5A (18) MOTORCYCLE, THA, VIN# MLHNC510-J5400001 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE

43310-KYJ-D21

$26.34

GUIDE, BRAKE HOSE

43468-KFB-000

$4.94

CONNECTOR

43503-MR7-006

$14.04

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN)

43510-KYJ-305

$120.89

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN) This part replaces 43510-KYJ-901.

43510-KYJ-305

$120.89

CUP, MASTER CYLINDER OIL

43511-KYJ-901

$6.38

HOSE, RR. MASTER CYLINDER

43512-KYJ-901

$6.10

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

SCREW, FLAT (4X60)

43516-KYJ-901

$1.49

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$46.51

ROD, PUSH

43530-KV3-701

$19.84

CAP, MASTER CYLINDER

45513-K33-D01

$16.97

DIAPHRAGM

45520-GW0-911

$7.28

PLATE, DIAPHRAGM

45521-GW0-911

$5.72

CIRCLIP

46182-MEL-D21

$1.93

JOINT, BRAKE ROD

46504-MAL-601

$13.39

SCREW, PAN (5X12)

90104-KPP-900

$1.49

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

90508-K21-921

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

PIN D, JOINT

95015-54000

$4.24

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

BOLT, SOCKET (6X20)

96600-06020-00

$1.49
