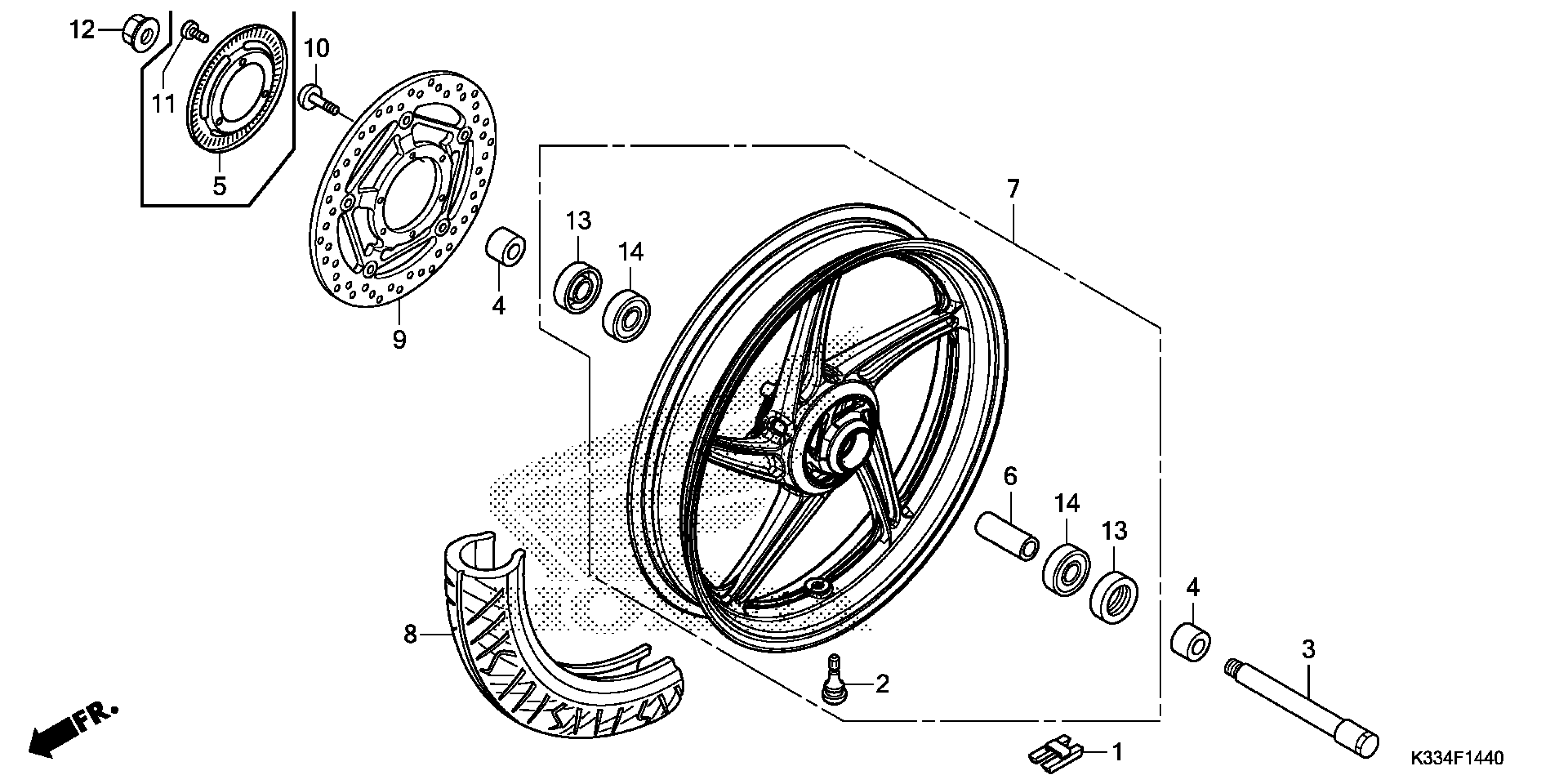

Honda CBR300R5A (18) MOTORCYCLE, THA, VIN# MLHNC510-J5400001 FRONT WHEEL Diagram

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

VALVE, RIM This part replaces 42753-KWF-901.

42753-K38-901

$1.49

VALVE, RIM

42753-K38-901

$1.49

AXLE, FR. WHEEL

44301-KYJ-900

$26.41

COLLAR, FR. WHEEL

44311-KYJ-900

$9.23

COLLAR, FR. AXLE DISTANCE

44620-KYJ-900

$6.64

WHEEL SUB-ASSY., FR. *NH303M* (MAT AXIS GRAY METALLIC)

44650-KYJ-901ZC

$259.95

TIRE, FR. This part replaces 44711-KYJ-903.

44711-KYJ-905

$64.19

TIRE, FR. This part replaces 44711-KYJ-904.

44711-KYJ-905

$64.19

DISK, FR. BRAKE

45120-KYJ-901

$150.75

BOLT, BRAKE DISK (6X17)

90106-KGH-600

$2.98

NUT, U (12MM)

90306-KWN-701

$4.17

DUST SEAL (22X42X7) (ARAI)

91252-MC7-003

$7.46

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
