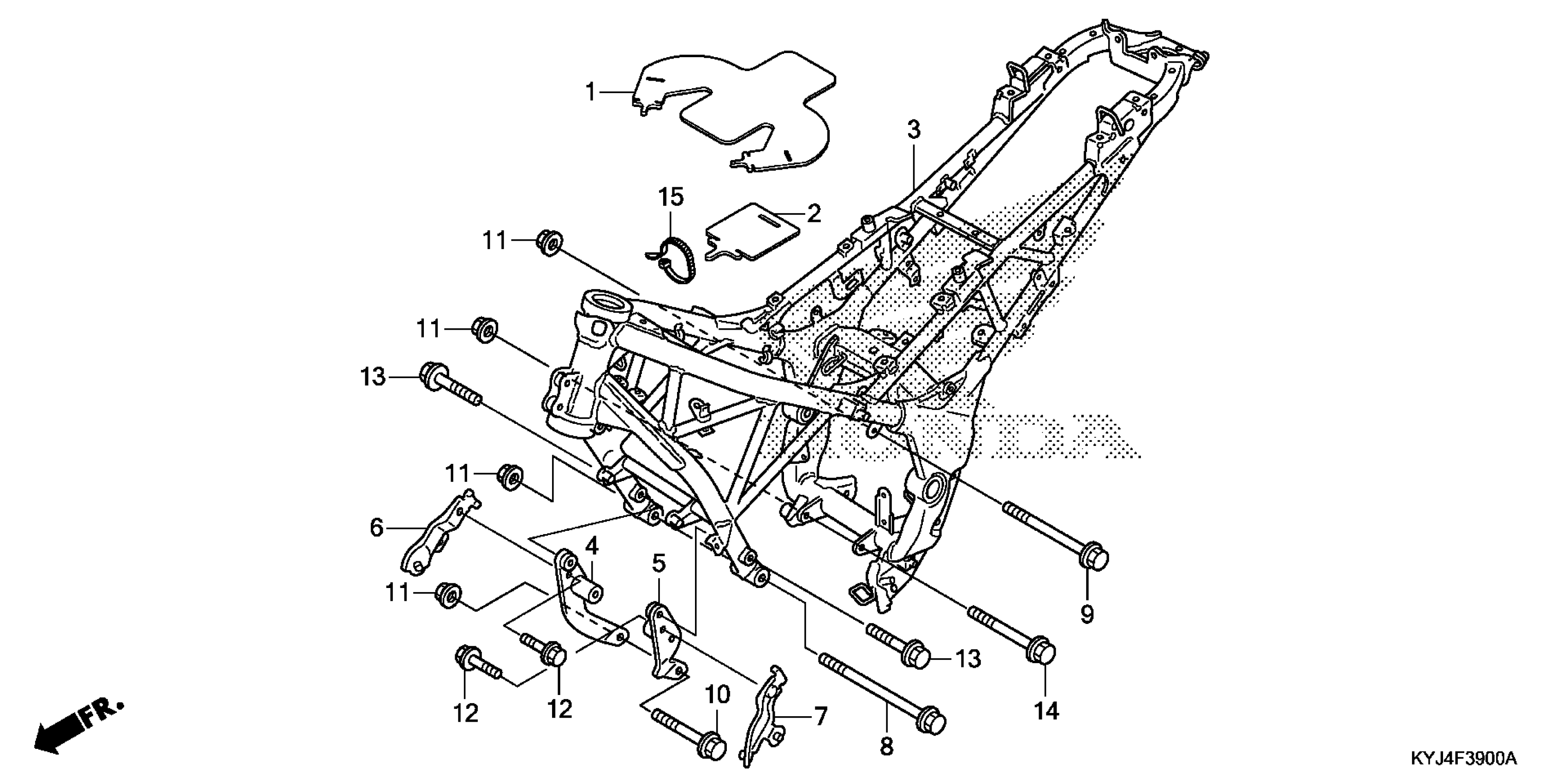

Honda CBR250RAAC (13) CBR250RA, THA, VIN# MLHMC411-D5300001 FRAME Diagram

#

Description

Price

1

RUBBER, GUARD

17543-KYJ-900

$12.21

2

RUBBER SHEET, HARNESS GUARD

32800-KYJ-900

$3.41

3

FRAME

50100-KYJ-910

$482.11

4

PLATE, R. FR. ENGINE HANGER

50351-KYJ-900

$19.64

5

PLATE, L. FR. ENGINE HANGER

50361-KYJ-900

$19.64

6

STAY, R. COWL (LOWER)

64315-KYJ-900

Unavailable

7

STAY, L. COWL (LOWER)

64325-KYJ-900

$4.34

8

BOLT, FLANGE (10X273)

90111-KYJ-900

$5.34

9

BOLT, FLANGE (10X145)

90113-KYJ-900

$3.18

10

BOLT, FLANGE (10X103)

90114-KYJ-900

$2.26

11

NUT, FLANGE (10MM)

94050-10000

$1.59

12

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

13

BOLT, FLANGE (10X70)

95801-10070-00

$1.80

14

BOLT, FLANGE (10X130)

95801-10130-00

$4.49

15

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92
