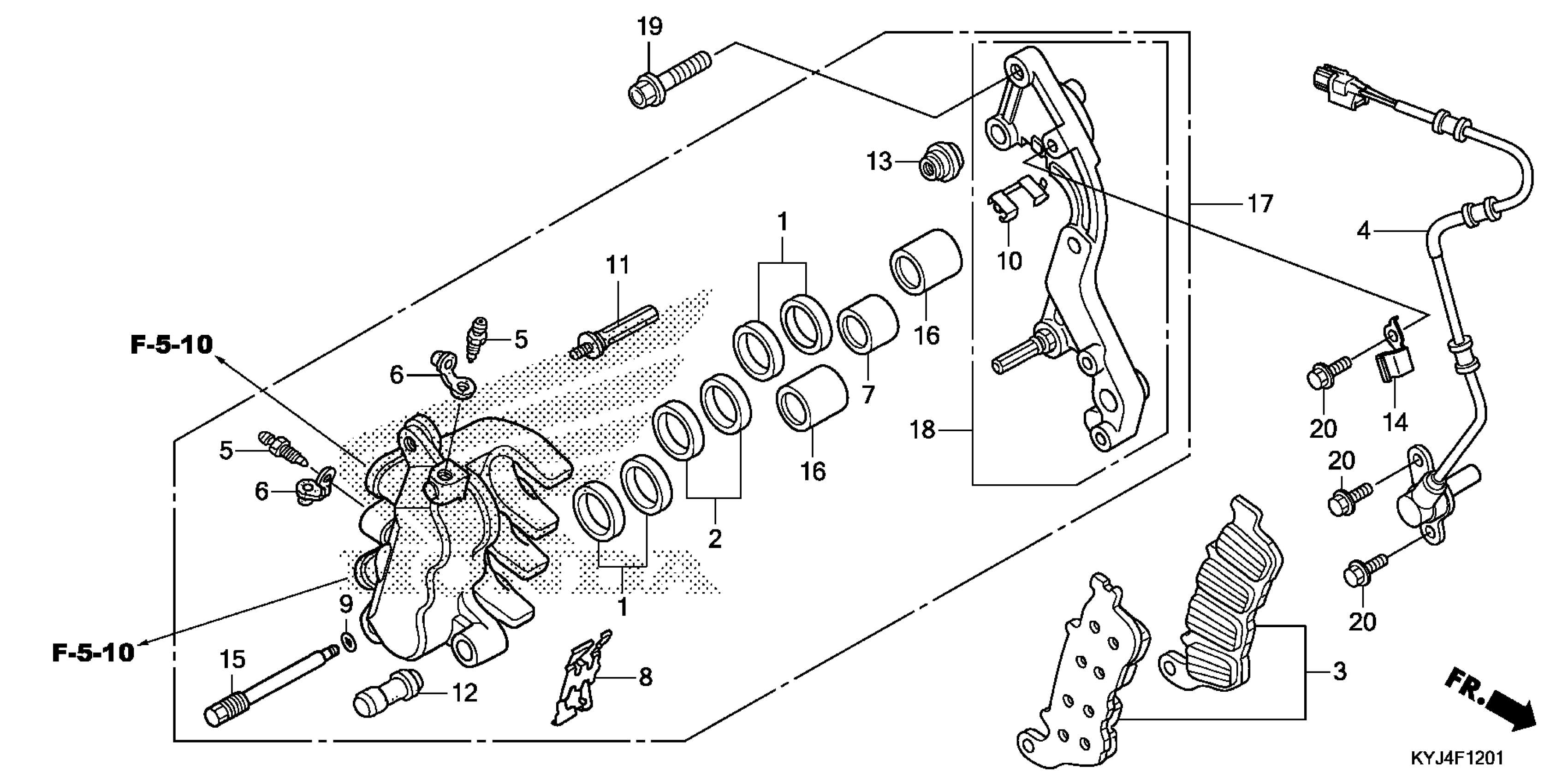

Honda CBR250RAAC (11) CBR250RA, THA, VIN# MLHMC411-B5000001 TO MLHMC411-B5099999 FRONT BRAKE CALIPER (CBR250RA) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$12.55

PAD SET, FR. This part replaces 06455-KYJ-911.

06455-KYJ-912

$52.72

SENSOR, FR. WHEEL SPEED

38520-KYJ-911

$100.87

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON A (22X27)

45107-MAJ-G41

$39.18

SPRING, PAD

45108-KYJ-911

$30.38

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER, BRACKET

45112-MZ2-006

$8.85

BOLT A, PIN (NISSIN)

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CLAMP, SPEED SENSOR CORD

45161-MCW-D10

$4.84

PIN, HANGER

45215-MBT-D51

$6.90

PISTON B (27X35)

45218-MAJ-G41

$39.18

CALIPER SUB-ASSY., R. FR.

45250-KYJ-911

$242.23

BRACKET SUB-ASSY., R. FR.

45290-MER-R81

$119.43

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.75

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
