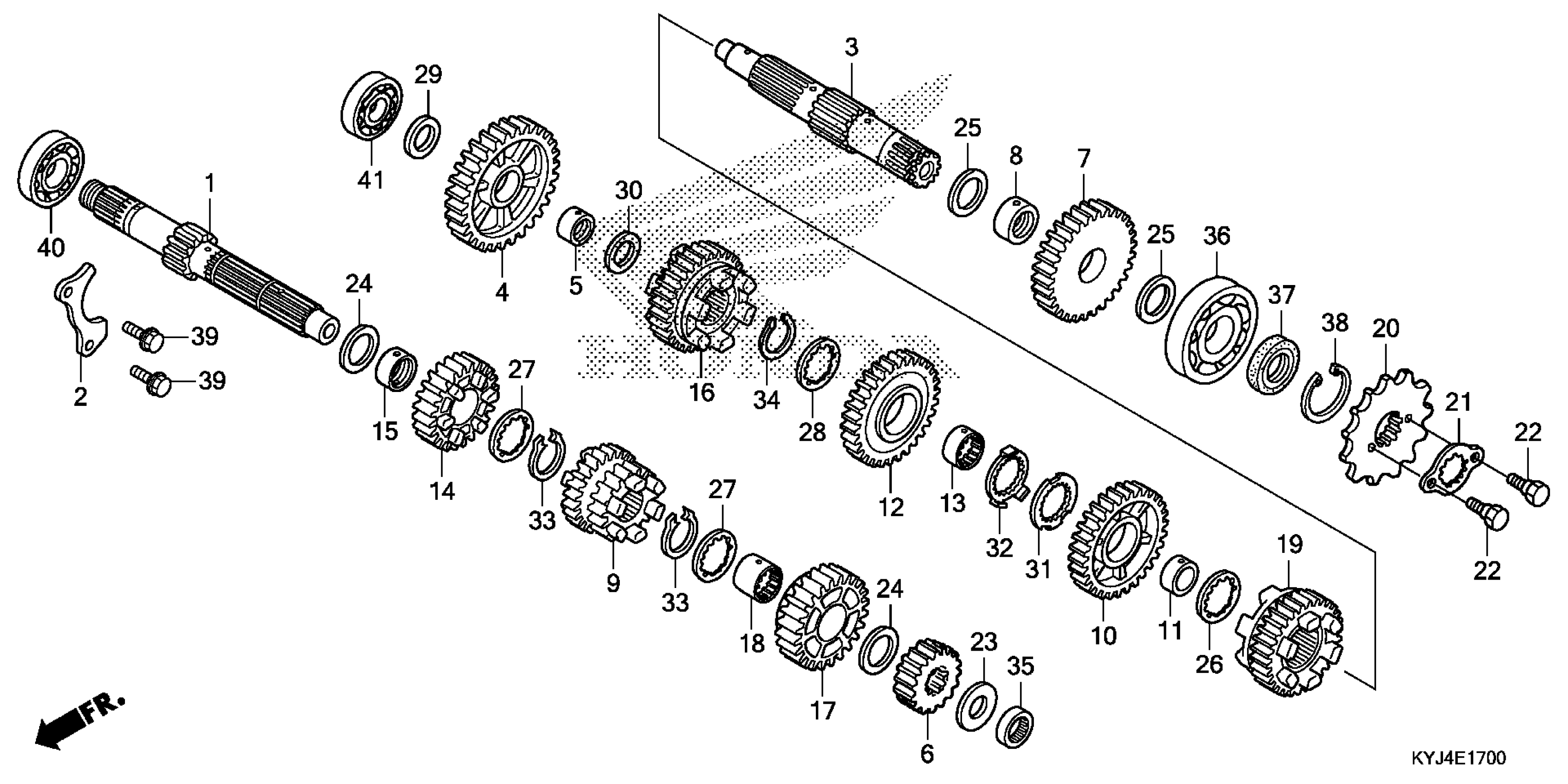

Honda CBR250R/R4AC (13) REPSOL EDITION, THA, VIN# MLHMC410-D5300001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (12T)

23211-KYJ-900

$67.43

2

PLATE, BEARING SETTING

23212-KYJ-900

$2.41

3

COUNTERSHAFT

23221-KYJ-900

$59.00

4

GEAR, COUNTERSHAFT FIRST (40T)

23411-KYJ-900

$71.43

5

COLLAR (20X23X10.5)

23412-KYJ-900

$13.56

6

GEAR, MAINSHAFT SECOND (17T)

23421-KYJ-900

$26.95

7

GEAR, COUNTERSHAFT SECOND (36T)

23431-KYJ-900

$65.18

8

COLLAR (22X25X11)

23432-KYJ-900

$10.25

9

GEAR, MAINSHAFT THIRD & FOURTH (21T/23T)

23441-KYJ-900

$75.18

10

GEAR, COUNTERSHAFT THIRD (33T)

23451-KYJ-900

$72.05

11

COLLAR (25X28X10)

23452-KYJ-900

$10.89

12

GEAR, COUNTERSHAFT FOURTH (30T)

23471-KYJ-900

$74.23

13

COLLAR, SPLINE (25X10)

23472-KYJ-900

$16.10

14

GEAR, MAINSHAFT FIFTH (26T)

23481-KYJ-900

$42.84

15

BUSH (20X23X17.4)

23482-KYJ-900

$31.15

16

GEAR, COUNTERSHAFT FIFTH (29T)

23491-KYJ-900

$63.70

17

GEAR, MAINSHAFT SIXTH (27T)

23501-KYJ-901

Unavailable

18

COLLAR, SPLINE (23MM)

23502-KYJ-900

$21.59

19

GEAR, COUNTERSHAFT SIXTH (26T)

23511-KYJ-901

$73.16

20

SPROCKET, DRIVE (14T) This part replaces 23801-KYJ-900.

23801-KYJ-901

$12.72

20

SPROCKET, DRIVE (14T)

23801-KYJ-901

$12.72

21

PLATE, FIXING

23802-KYJ-900

$2.64

22

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

23

WASHER (17X26X1.0)

90405-KYJ-900

$1.49

24

WASHER (20X27X1.0)

90406-KYJ-900

$1.49

25

WASHER (22X29X1.0)

90407-KYJ-900

$1.49

26

WASHER (25X32X1.0)

90408-KYJ-900

$1.49

27

WASHER, SPLINE (20X26X1.6)

90451-KYJ-900

$1.49

28

WASHER, SPLINE (25X31X1.0)

90452-KYJ-900

$1.49

29

WASHER (17X28X1.0)

90453-KYJ-900

$1.49

30

WASHER B, THRUST (20MM)

90454-KPS-900

$1.49

31

WASHER, SPLINE (25X42X1.6)

90454-KYJ-900

$1.52

32

WASHER, LOCK (25MM)

90455-KYJ-900

$32.30

33

CIRCLIP (OUTER) (20MM)

90601-KYJ-900

$8.43

34

CIRCLIP (OUTER) (25MM)

90602-KYJ-900

$7.08

35

BEARING, NEEDLE (17X27X13)

91003-KYJ-901

$21.45

36

BEARING, RADIAL BALL (63/22)

91005-KYJ-901

$21.72

37

OIL SEAL (22X36X5)

91207-KYJ-901

$2.92

38

CIRCLIP (INNER) (37MM)

94520-37000

$2.18

39

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

40

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

41

BEARING, RADIAL BALL (6203U)

96140-62030-00

$18.59
