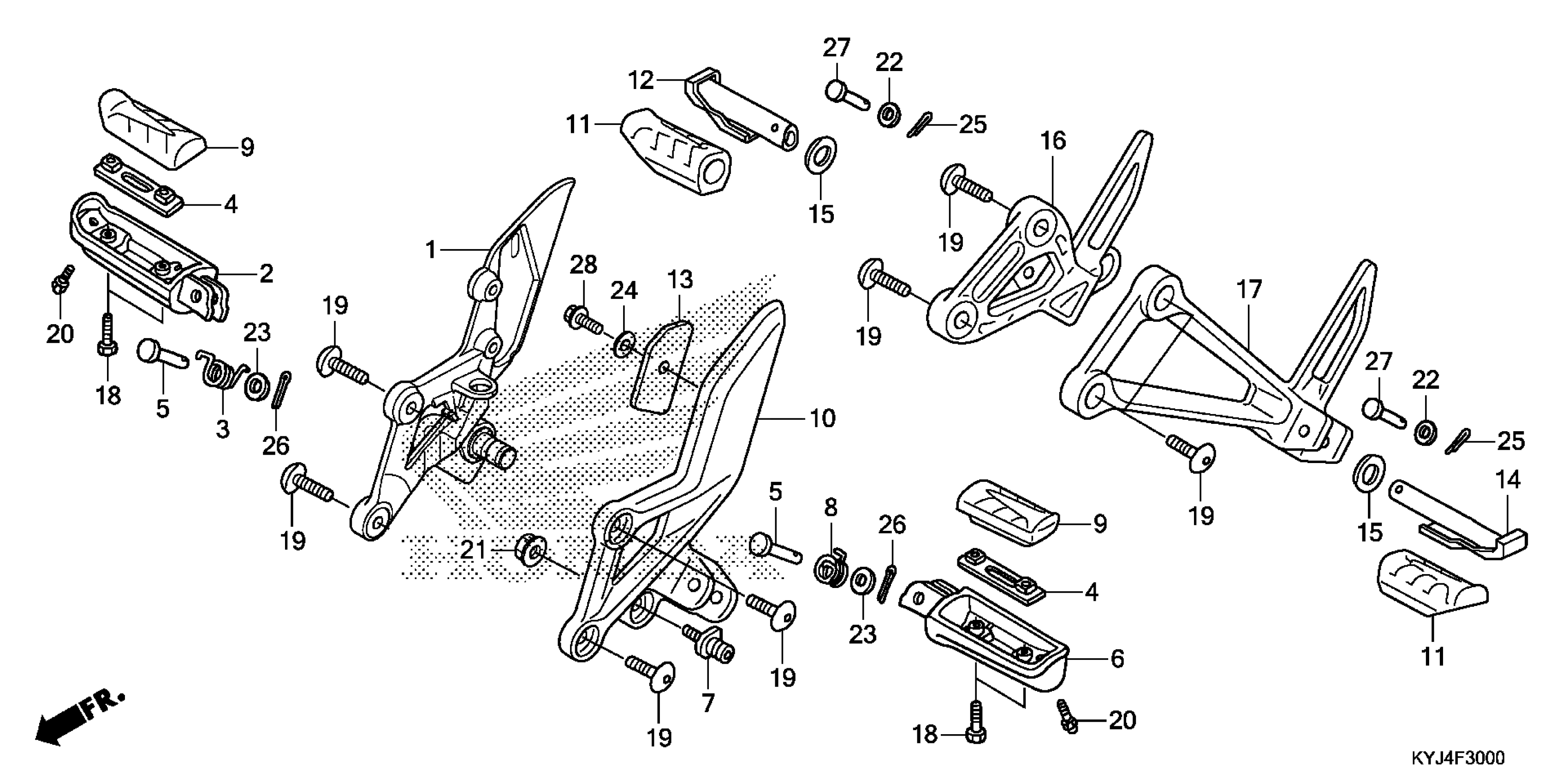

Honda CBR250R/R4AC (13) REPSOL EDITION, THA, VIN# MLHMC410-D5300001 STEP Diagram

#

Description
Price

1

HOLDER, R. STEP

50600-KYJ-900

$55.64

2

ARM, R. STEP (COO)

50612-KYJ-305

$23.78

3

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.20

4

PLATE, STEP SETTING

50619-MM5-000

$7.56

5

PIN, STEP BAR

50639-ML0-010

Unavailable

6

ARM, L. STEP (COO)

50642-KYJ-305

$23.78

7

PIVOT, CHANGE PEDAL

50643-KYJ-900

$10.56

8

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.20

9

RUBBER, MAIN STEP (COO)

50661-KYJ-305

$12.67

10

HOLDER, L. STEP

50700-KYJ-900

$56.75

11

RUBBER, PILLION STEP (COO)

50710-KYJ-305

$10.93

12

BAR, R. PILLION STEP (COO)

50711-KYJ-305

$14.68

13

WEIGHT, STEP HOLDER

50711-KYJ-900

$3.10

14

BAR, L. PILLION STEP (COO)

50712-KYJ-305

$13.50

15

PLATE, PILLION STEP SIDE

50714-KBA-930

$1.37

16

HOLDER, R. PILLION STEP

50715-KYJ-900

$41.28

17

HOLDER, L. PILLION STEP

50725-KYJ-900

$41.28

18

BOLT, MAIN STEP RUBBER SETTING

90115-MV9-000

$3.52

19

BOLT, SOCKET (8X22)

90127-KYJ-900

$1.53

20

BOLT, CAP (8X8)

92501-08008-0A

$1.04

21

NUT, FLANGE (8MM)

94050-08080

$0.87

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

23

WASHER, PLAIN (8MM)

94102-08000

$0.87

24

WASHER, PLAIN (6MM)

94103-06700

$0.66

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.96

25

PIN, COTTER (1.6X25)

94201-16250

$0.96

26

PIN, COTTER (2.0X15)

94201-20150

$0.96

27

PIN B, PILLION FOOTPEG

95015-82000

$2.22

28

BOLT, FLANGE (6X10)

95701-06010-07

$1.50
