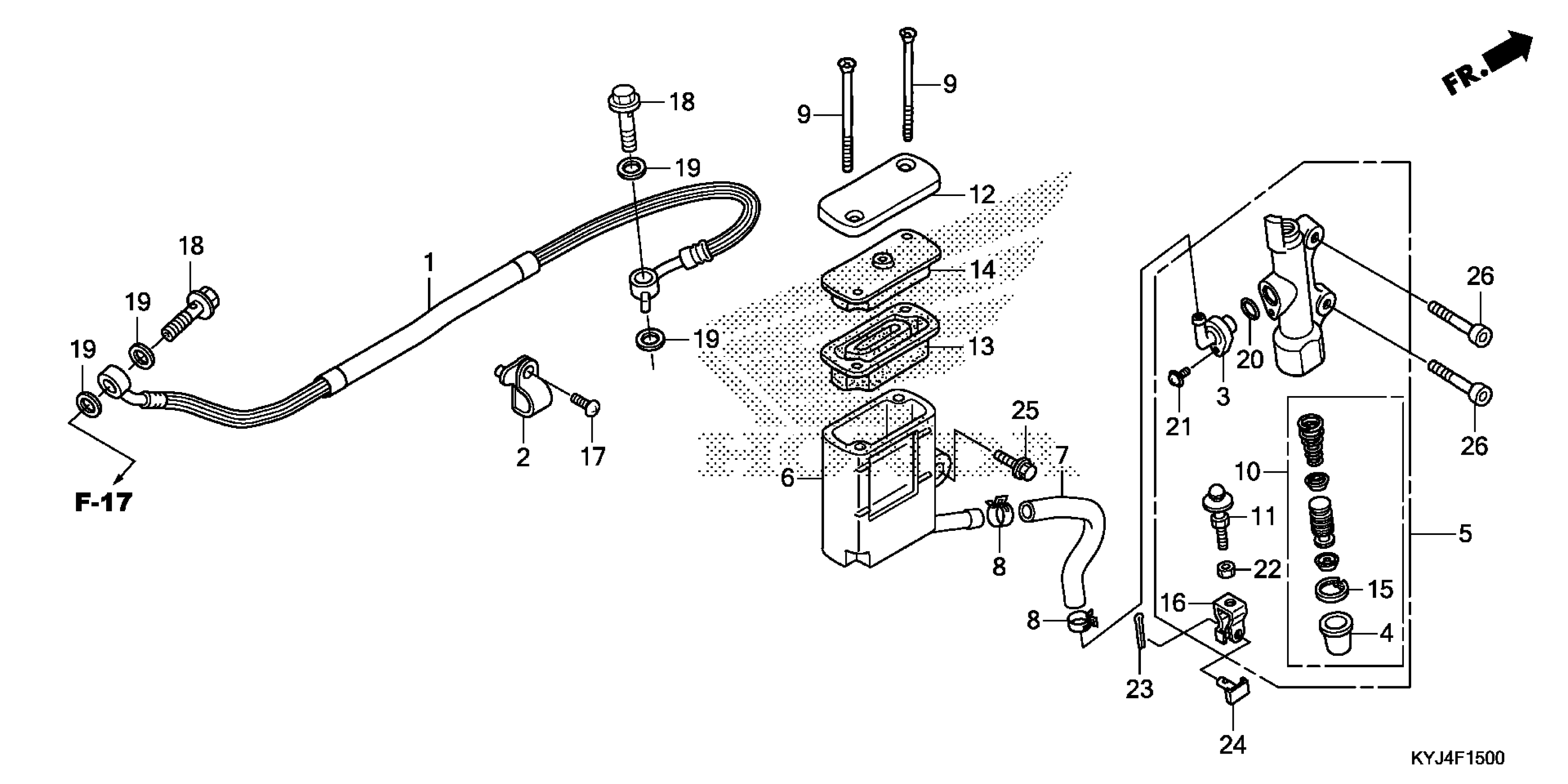

Honda CBR250R/R4AC (13) REPSOL EDITION, THA, VIN# MLHMC410-D5300001 REAR BRAKE MASTER CYLINDER (CBR250R) Diagram

HOSE, RR. BRAKE

43310-KYJ-D21

$23.29

GUIDE, BRAKE HOSE

43468-KFB-000

$4.61

CONNECTOR

43503-MR7-006

$12.51

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN)

43510-KYJ-305

$106.87

CUP, MASTER CYLINDER OIL

43511-KYJ-901

$5.64

HOSE, RR. MASTER CYLINDER

43512-KYJ-901

$5.39

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

SCREW, FLAT (4X60)

43516-KYJ-901

$0.83

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$41.76

ROD, PUSH

43530-KV3-701

$18.06

CAP, MASTER CYLINDER

45513-KWN-671

$17.83

DIAPHRAGM

45520-GW0-911

$6.78

PLATE, DIAPHRAGM

45521-GW0-911

$5.34

CIRCLIP

46182-MEL-D21

$1.77

JOINT, BRAKE ROD

46504-MAL-601

$12.20

SCREW, PAN (5X12)

90104-KPP-900

$0.75

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, COTTER (2.0X15)

94201-20150

$0.94

PIN D, JOINT

95015-54000

$3.95

BOLT, FLANGE (6X14)

96001-06014-07

$1.09

BOLT, SOCKET (6X20)

96600-06020-00

$1.17
