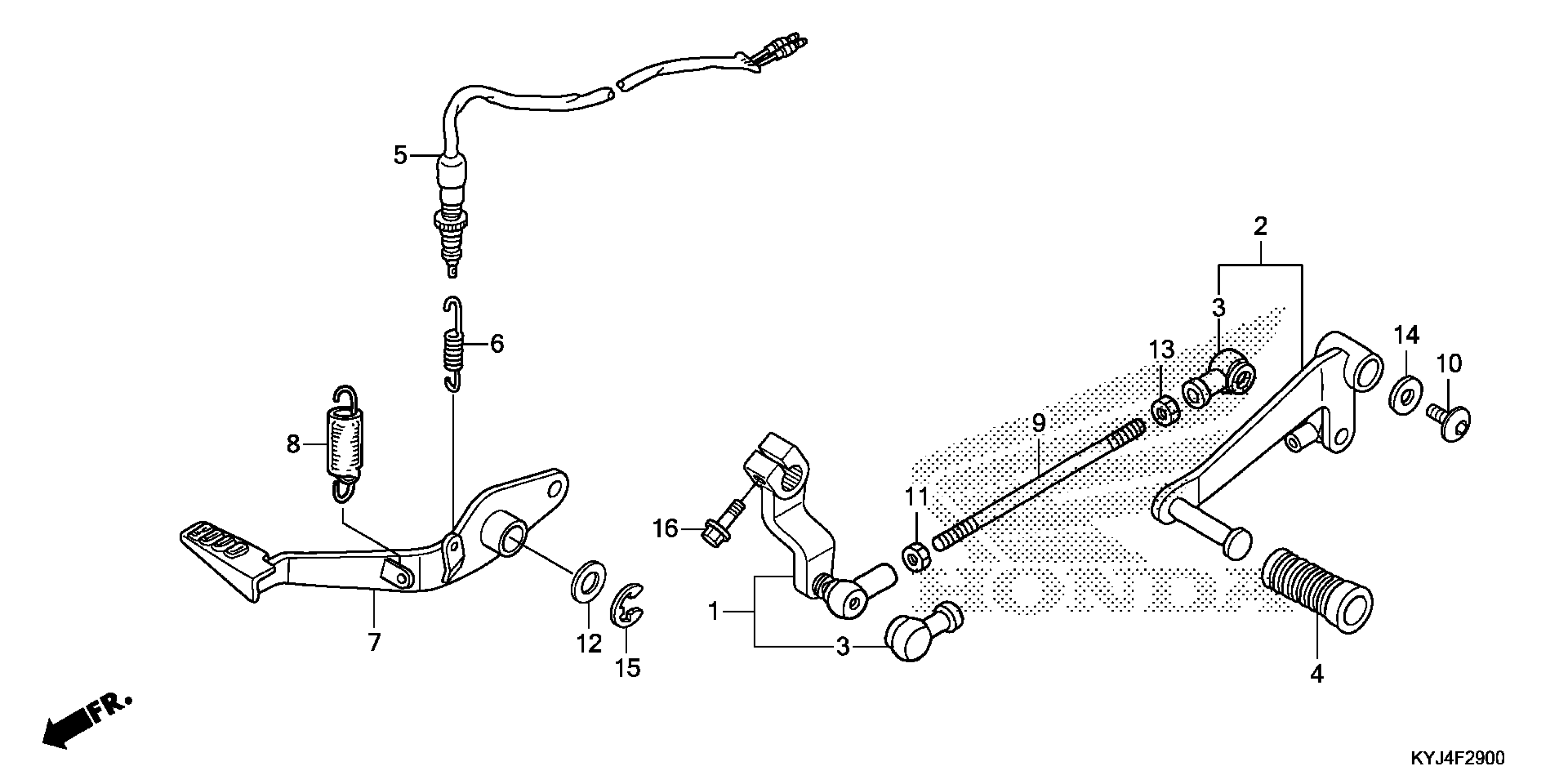

Honda CBR250R/R4AC (13) REPSOL EDITION, THA, VIN# MLHMC410-D5300001 PEDAL Diagram

ARM, GEARSHIFT (COO)

24710-KYJ-305

$21.94

PEDAL, GEARSHIFT (COO)

24720-KYJ-305

Unavailable

COVER, DUST

24724-MBW-D21

$6.49

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.15

SWITCH ASSY., RR. STOP This part replaces 35350-KYJ-901.

35350-KYJ-902

$14.52

SWITCH ASSY., RR. STOP

35350-KYJ-902

$14.52

SPRING, STOP SWITCH

35357-HP0-A00

$2.33

PEDAL, RR. BRAKE (COO)

46500-KYJ-305

$17.08

SPRING ASSY., BRAKE PEDAL

46513-KYJ-900

$2.80

BOLT, TIE ROD

90105-KYJ-900

$2.01

SCREW, PAN (6X10)

90132-KPP-T00

$0.78

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

90301-KYJ-900

$2.07

WASHER (15.2X25)

90557-230-000

$2.17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

NUT, HEX. (6MM)

94001-06200-0S

$1.19

WASHER, PLAIN (6MM)

94103-06700

$0.65

CIRCLIP (OUTER) (15MM)

94511-15000

$0.62

BOLT, FLANGE (6X20)

95701-06020-07

$1.48
