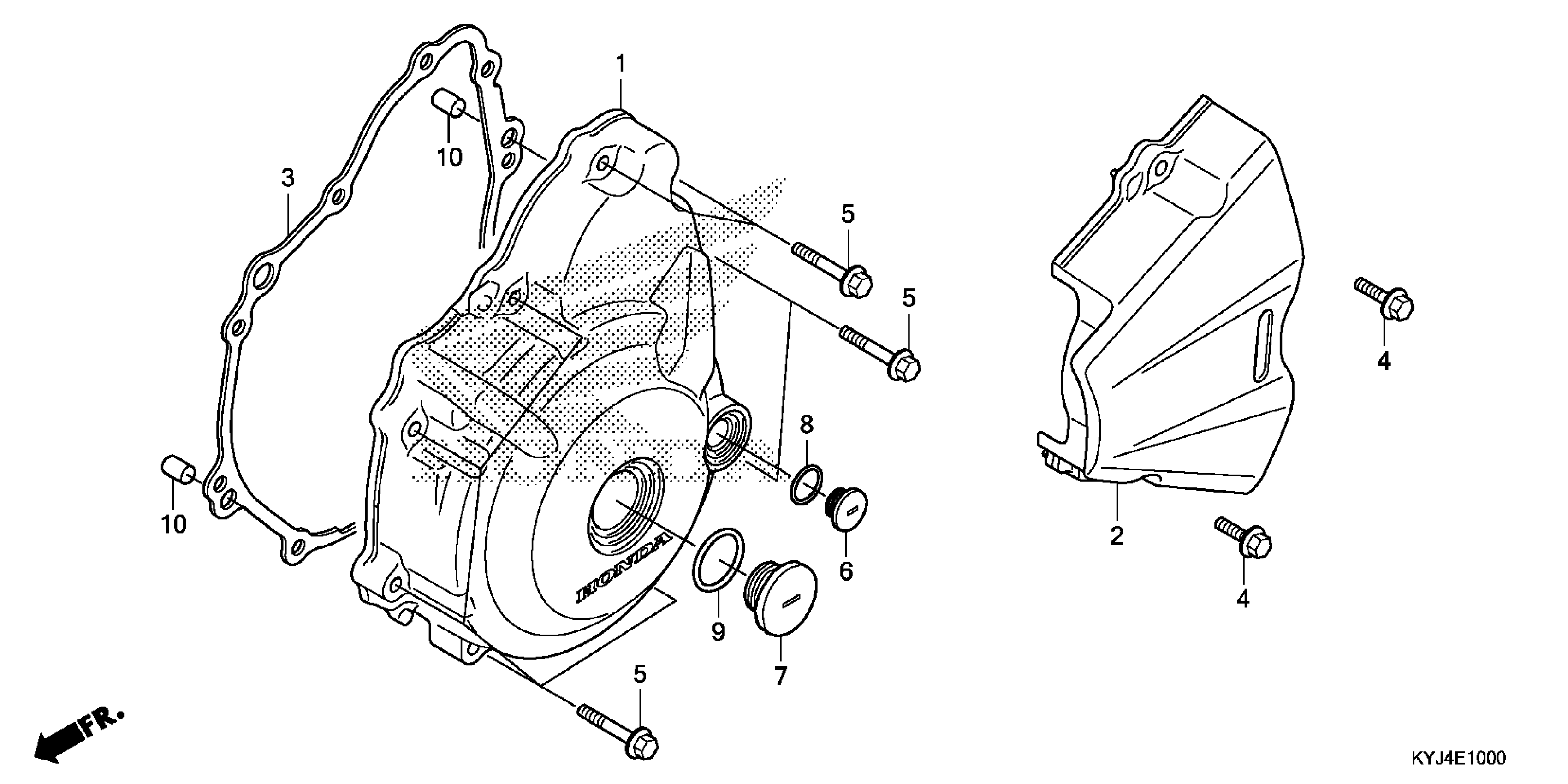

Honda CBR250R/R4AC (13) REPSOL EDITION, THA, VIN# MLHMC410-D5300001 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11341-KYJ-900

$35.81

COVER, L. RR.

11360-KYJ-900

$10.41

GASKET, L. CRANKCASE COVER This part replaces 11395-KYJ-900.

11395-KYJ-901

$4.81

BOLT, FLANGE (6X25) (NSHF)

90012-KYJ-900

Unavailable

BOLT, FLANGE (6X30) (NSHF)

90013-KYJ-900

$0.50

CAP, ALTERNATOR

90084-KPP-860

$2.71

CAP (30MM)

90087-KPP-860

$5.90

O-RING (13.8X2.5)

91303-377-000

$3.26

O-RING (30MM)

91356-KGH-901

$0.78

PIN B, DOWEL (8X14)

94302-08140

$2.62
