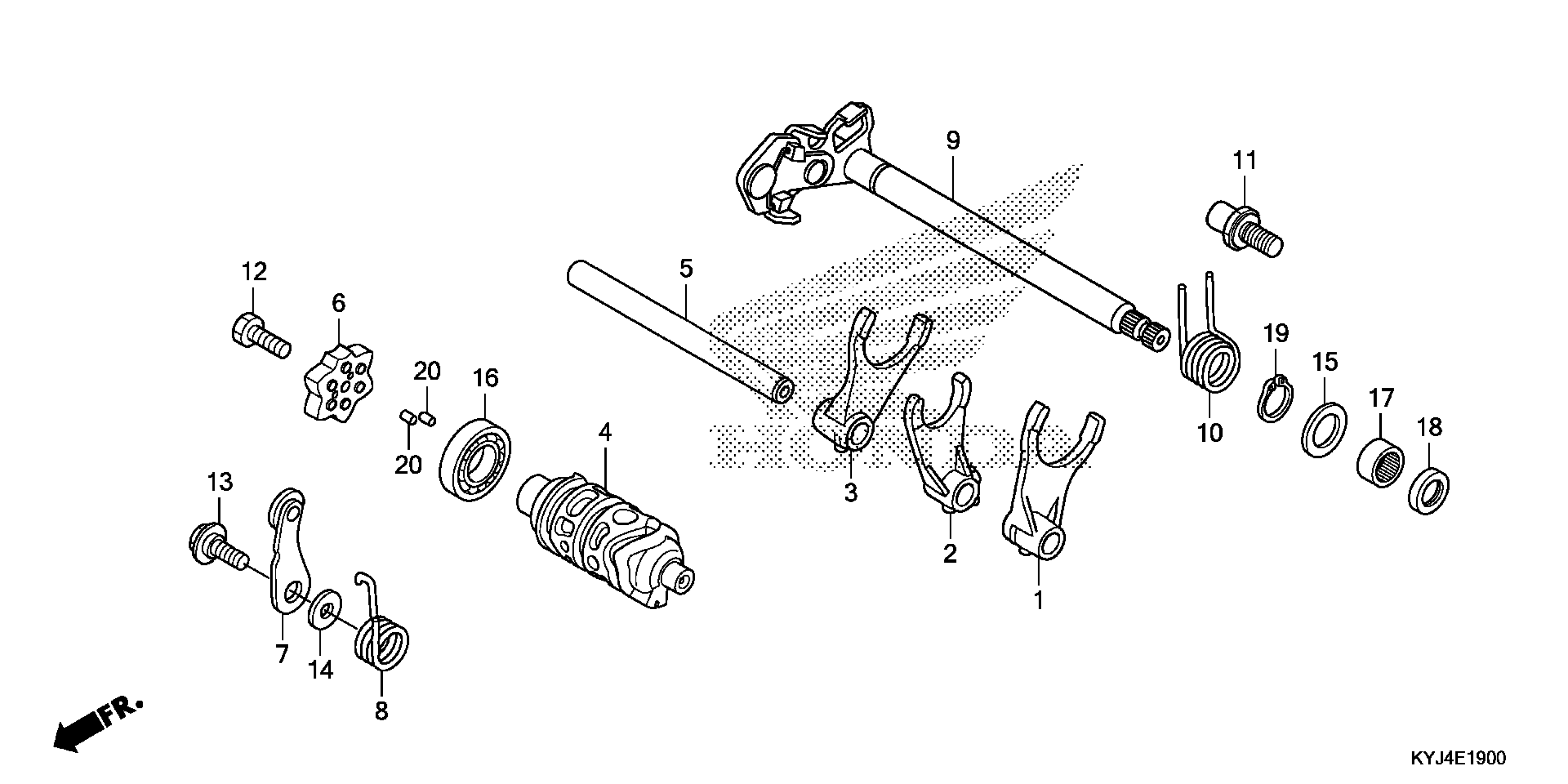

Honda CBR250R/R4AC (13) REPSOL EDITION, THA, VIN# MLHMC410-D5300001 GEARSHIFT DRUM Diagram

FORK, L. GEARSHIFT

24211-KYJ-900

$31.22

FORK, CENTER GEARSHIFT

24212-KYJ-900

$31.22

FORK, R. GEARSHIFT

24213-KYJ-900

$31.22

DRUM, GEARSHIFT

24301-KYJ-900

$26.22

SHAFT, GEARSHIFT FORK

24321-KYJ-900

$9.72

PLATE, GEARSHIFT DRUM STOPPER

24410-KYJ-900

$64.49

STOPPER, GEARSHIFT DRUM

24430-KGH-901

$10.37

SPRING, DRUM STOPPER

24435-KYJ-900

$0.62

SPINDLE, GEARSHIFT

24610-KYJ-900

$39.64

SPRING, GEARSHIFT RETURN

24651-KRM-840

$2.32

PIN, SHIFT RETURN SPRING This part replaces 24652-KSP-910.

24652-KRM-840

$6.02

BOLT, HEX. (6X20)

90003-KVS-900

$1.88

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.29

WASHER (6.1MM)

90435-HB3-000

$2.80

WASHER (14MM)

90457-KRM-840

$0.68

BEARING, RADIAL BALL (6905)

91015-MCA-003

$9.57

BEARING, NEEDLE (14MM) (TOYO)

91101-121-691

$24.95

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.90

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

ROLLER (3X8.5)

96220-30085

$0.49
