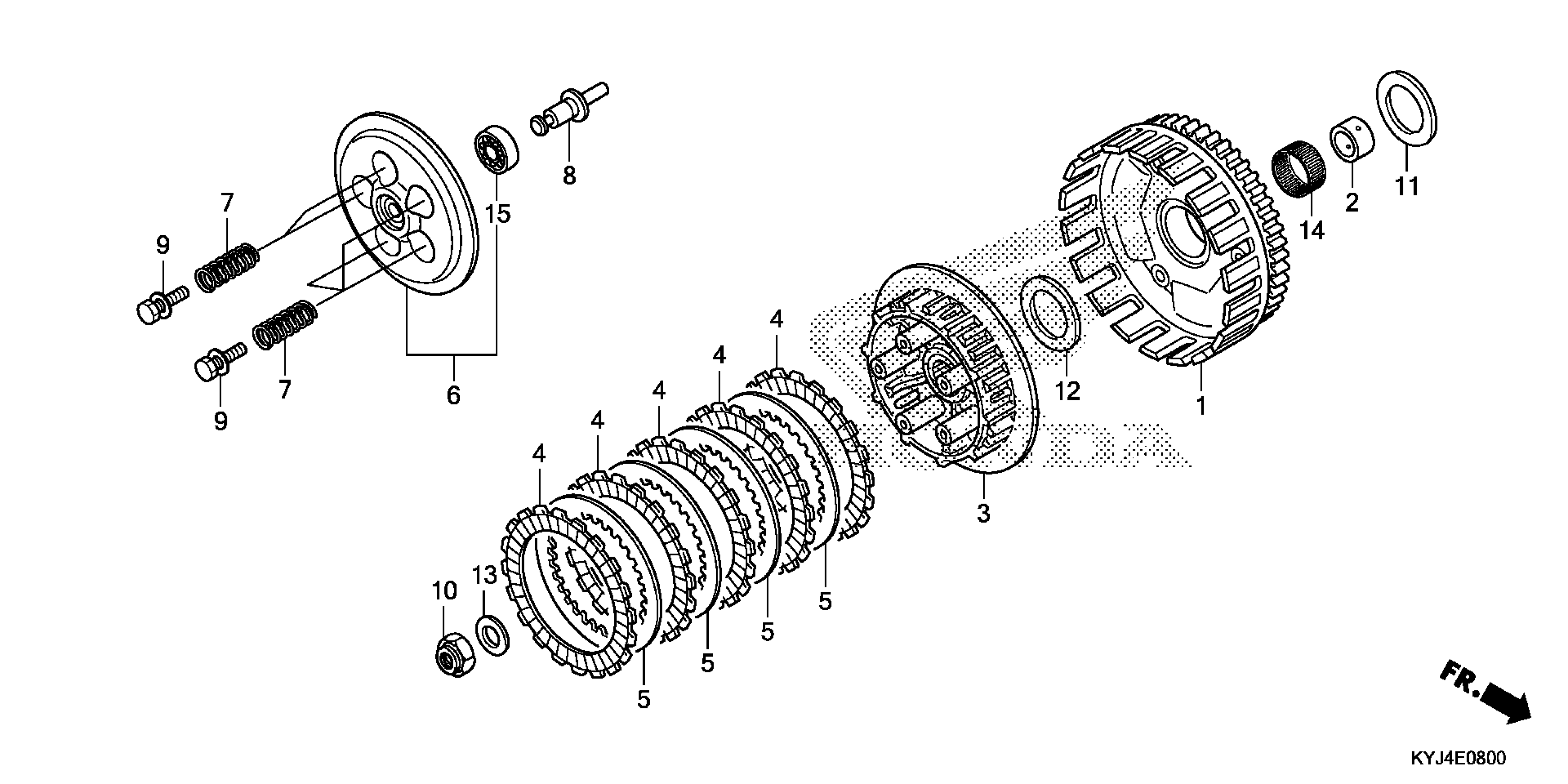

Honda CBR250R/R4AC (13) REPSOL EDITION, THA, VIN# MLHMC410-D5300001 CLUTCH Diagram

CLUTCH OUTER

22100-KYJ-903

$230.15

GUIDE, CLUTCH (OUTER)

22116-KYJ-900

$3.26

CENTER, CLUTCH

22121-KYJ-902

$49.75

DISK, CLUTCH FRICTION

22201-KYJ-902

$16.45

PLATE, CLUTCH

22321-KYJ-902

$7.18

PLATE, CLUTCH PRESSURE

22350-KYJ-902

$40.88

SPRING, CLUTCH

22401-KYJ-902

$2.87

PIN, CLUTCH LIFTER This part replaces 22847-KYJ-900.

22847-KZZ-900

$9.16

BOLT (6X1.0)

90050-KYJ-902

$1.49

NUT, SPECIAL (16MM)

90201-KYJ-900

$3.67

WASHER (20X40X2)

90404-KVK-900

$3.01

WASHER (20X40X2)

90404-KYJ-902

$2.89

WASHER (16MM)

90434-KPS-900

$2.05

BEARING, NEEDLE (28X33X16.8)

91012-KYJ-901

$6.13

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
