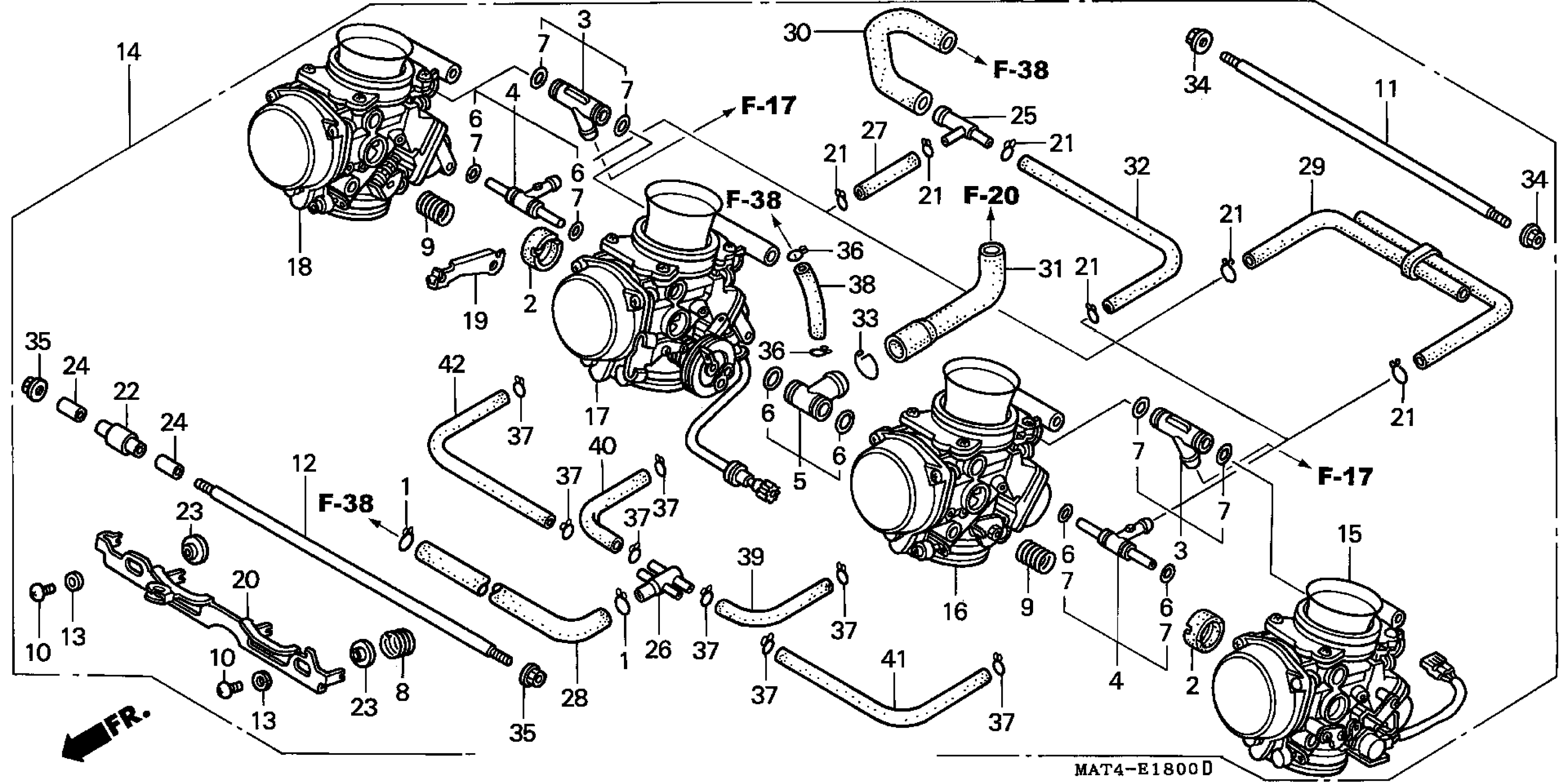

Honda CBR1100XXAC (98) MOTORCYCLE, JPN, VIN# JH2SC351-WM100001 TO JH2SC351-WM100160 CARBURETOR ASSY. Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

JOINT

16024-KAZ-000

$29.30

3

JOINT SET, FUEL

16024-MY9-750

$49.26

4

JOINT SET

16026-MZ2-E00

$38.48

5

JOINT SET (NOT AVAILABLE)

16038-MAT-600

Unavailable

6

GASKET SET B This part replaces 16039-MZ1-790.

16040-MZ1-790

$12.84

6

GASKET SET B

16040-MZ1-790

$12.84

7

GASKET SET B

16040-MZ1-790

$12.84

8

SPRING, TORSION COIL

16051-MZ5-670

Unavailable

9

SPRING, COMPRESSION COIL

16053-MA6-003

$9.07

10

SCREW, TRUSS (4X8)

16081-KAZ-000

$3.10

11

BOLT

16083-MAT-000

Unavailable

12

BOLT (NOT AVAILABLE)

16084-MAT-000

Unavailable

13

WASHER, PLAIN

16085-MV4-000

$2.92

14

CARBURETOR ASSY. (VPS1A A) (NOT AVAILABLE)

16100-MAT-750

Unavailable

15

CARBURETOR ASSY. 1 (NOT AVAILABLE)

16101-MAT-750

Unavailable

16

CARBURETOR ASSY. 2 (NOT AVAILABLE)

16102-MAT-750

Unavailable

17

CARBURETOR ASSY. 3 (NOT AVAILABLE)

16103-MAT-750

Unavailable

18

CARBURETOR ASSY. 4 (NOT AVAILABLE)

16104-MAT-750

Unavailable

19

PLATE, STAY (NOT AVAILABLE)

16119-MAT-000

Unavailable

20

LEVER, STARTER

16120-MAT-000

Unavailable

21

CLIP, TUBE

16163-GHB-610

$1.73

22

COLLAR

16172-MBZ-610

Unavailable

22

COLLAR This part replaces 16172-MV9-670.

16172-MBZ-610

Unavailable

23

COLLAR

16175-MZ1-000

$13.66

24

PIN, DOWEL (7.9X20)

16178-MAS-600

$8.39

25

T-JOINT (NOT AVAILABLE)

16180-MAL-600

Unavailable

26

JOINT (NOT AVAILABLE)

16180-MW0-750

Unavailable

27

TUBE, AIR VENT (NOT AVAILABLE)

16195-MAT-750

Unavailable

28

TUBE, PURGE (NOT AVAILABLE)

16196-MAT-750

Unavailable

30

TUBE, AIR VENT CONTROL VALVE (NOT AVAILABLE)

16197-MAT-750

Unavailable

31

TUBE (NOT AVAILABLE)

16198-MAT-000

Unavailable

32

TUBE, AIR VENT

16199-MAT-750

Unavailable

33

CLIP B, TUBE

17366-MJ0-000

$2.25

34

NUT, FLANGE (5MM)

94050-05000

$1.49

35

NUT, FLANGE (6MM)

94050-06000

$1.49

36

CLIP, TUBE (B7)

95002-02079

$1.49

37

CLIP, TUBE (B8)

95002-02089

$1.49

38

BULK HOSE, VACUUM (3.5X8000) (3.5X200)

95005-35008-10M

$105.82

39

BULK HOSE, VACUUM (4.5X1000) (4.5X125)

95005-45001-20M

$34.14

40

BULK HOSE, VACUUM (4.5X1000) (4.5X165)

95005-45001-20M

$34.14

41

BULK HOSE, VACUUM (4.5X1000) (4.5X190)

95005-45001-20M

$34.14

42

BULK HOSE, VACUUM (4.5X1000) (4.5X215)

95005-45001-20M

$34.14
