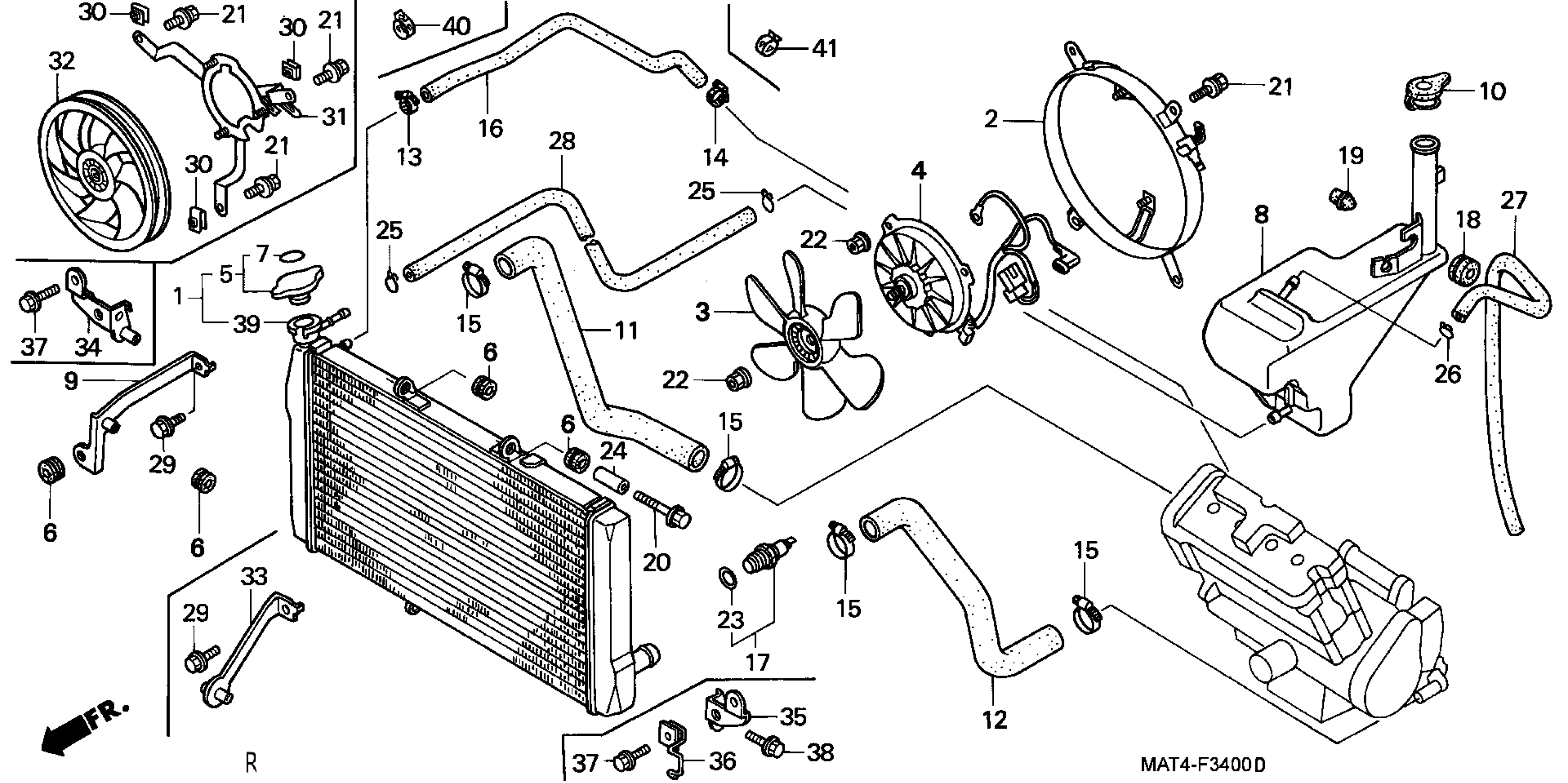

Honda CBR1100XXAC (03) MOTORCYCLE, JPN, VIN# JH2SC351-3M600001 RADIATOR Diagram

#

Description
Price

4

MOTOR ASSY., FAN

19030-MAT-D51

Unavailable

5

CAP, RADIATOR

19045-MY3-621

$37.14

6

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

7

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$8.49

8

TANK, RADIATOR RESERVE

19101-MAT-000

Unavailable

10

CAP, RESERVE TANK

19109-KPC-640

$4.59

11

HOSE, RADIATOR (UPPER)

19501-MAT-E00

Unavailable

12

HOSE, RADIATOR (LOWER)

19502-MAT-E00

Unavailable

15

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.46

16

TUBE, WATER

19511-MAT-770

Unavailable

18

RUBBER, SEAT MOUNTING

77206-464-000

$5.68

19

CAP, RR. BUMPER

84103-443-611

$3.91

21

BOLT-WASHER (6X16)

90120-KCR-003

$4.19

22

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

25

CLIP, TUBE (B10)

95002-02100

$1.75

26

CLIP, TUBE (C9)

95002-50000

$1.16

27

BULK HOSE, VACUUM (5X3000) (5X400)

95005-50003-30M

Unavailable

28

BULK HOSE, VACUUM (5.5X3000) (5.3X660)

95005-55003-20M

Unavailable

29

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

30

NUT, SETTING (6MM)

19014-KEA-003

$2.95

31

SHROUD

19015-MAT-E01

Unavailable

32

FAN, COOLING

19020-MAT-E01

Unavailable

33

STAY, RADIATOR

19102-MAT-E00

Unavailable

34

STAY, R. RADIATOR

19515-MAT-E00

$10.32

35

STAY, L. RADIATOR

19516-MAT-E00

$10.32

36

GUIDE, HARNESS

32105-MAT-E00

Unavailable

37

BOLT, FLANGE (6X16)

96001-06016-07

$0.97

38

BOLT, FLANGE (6X22)

96001-06022-07

$1.71

39

RADIATOR

19010-MAT-E21

$722.79

40

CLAMP, FUEL HOSE (D10.5)

91406-SL4-931

$4.66

41

CLAMP, TUBE (D12)

91405-PD1-004

$8.27
