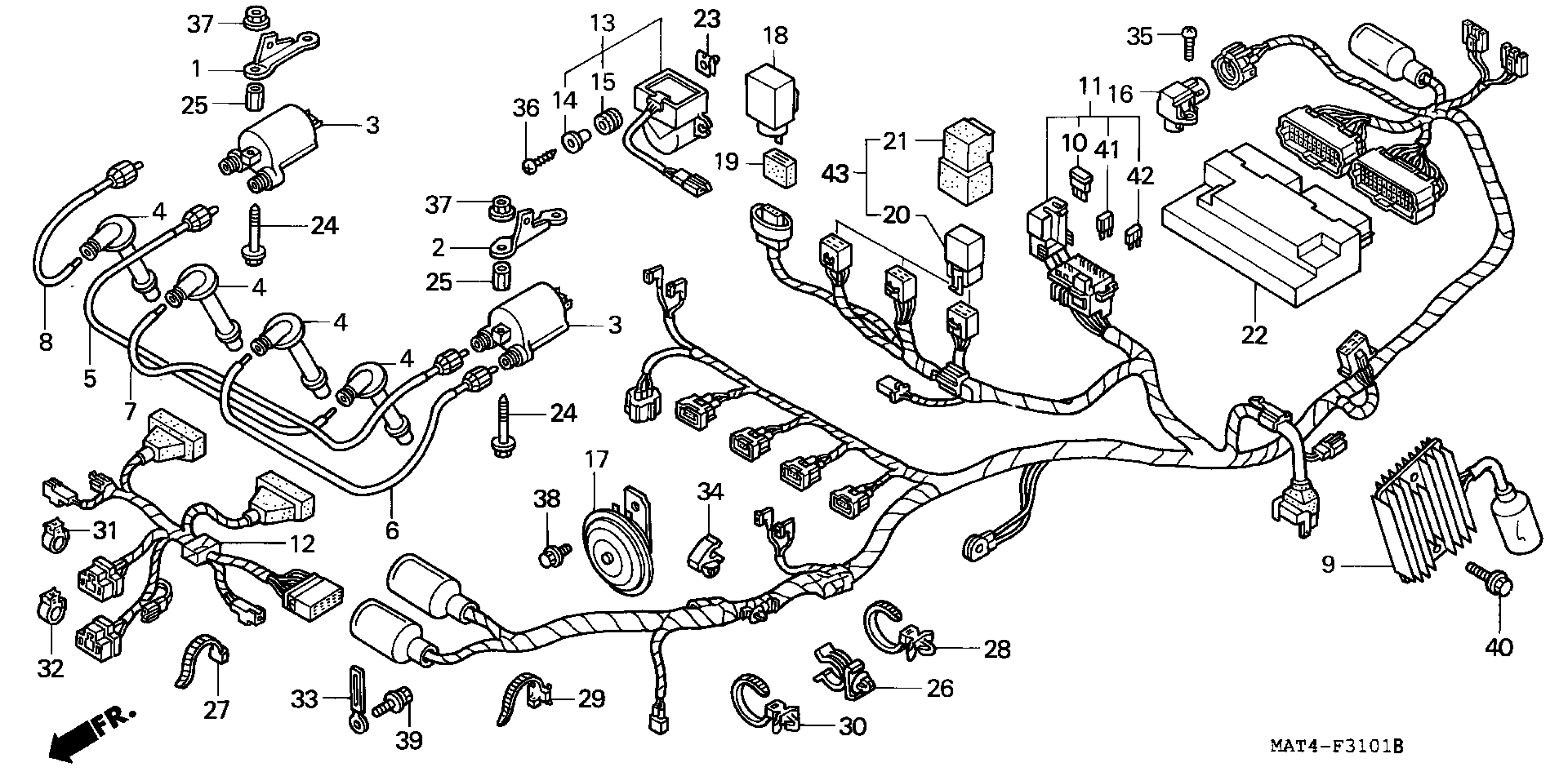

Honda CBR1100XXA (99) MOTORCYCLE, JPN, VIN# JH2SC350-XM200001 TO JH2SC350-XM201515 WIRE HARNESS 99-00 Diagram

#

Description
Price

1

STAY, R. IGNITION COIL

17226-MAT-E00

$7.79

2

STAY, L. IGNITION COIL

17236-MAT-E00

$7.79

3

COIL, IGNITION (TEC)

30510-MM8-003

$112.08

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-MBG-000.

30700-MBG-003

$31.11

5

WIRE, IGNITION (1)

30731-MAT-000

$26.89

6

WIRE, IGNITION (2)

30732-MAT-000

$23.03

7

WIRE, IGNITION (3)

30733-MAT-000

$25.90

8

WIRE, IGNITION (4)

30734-MAT-000

$23.03

9

RECTIFIER ASSY., REGULATOR

31600-MAT-E01

Unavailable

10

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

11

WIRE HARNESS This part replaces 32100-MAT-A00.

32100-MAT-A01

Unavailable

11

WIRE HARNESS

32100-MAT-A01

Unavailable

12

SUB-HARNESS, FR. (SOURCE: VINTAGE PARTS INC.)

32102-MAT-A00

Unavailable

13

SENSOR ASSY., STOP This part replaces 35160-MBG-003.

35160-MBG-023

$136.00

13

SENSOR ASSY., STOP This part replaces 35160-MBG-013.

35160-MBG-023

$136.00

14

COLLAR

35162-MN5-003

$7.25

15

GROMMET

35163-MN5-003

$3.15

16

SENSOR ASSY., MAP

37830-MAT-E01

Unavailable

17

HORN (HIGH)

38110-KY4-008

Unavailable

18

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

19

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

20

RELAY, STARTER (MITSUBA)

38501-GN2-014

$49.65

21

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.49

22

PGM-FI UNIT (NOT AVAILABLE)

38770-MAT-A02

Unavailable

23

NUT, COWL (UPPER)

66871-KY2-700

$2.30

24

BOLT, POWER STEERING PUMP ADJUSTING

90091-P0A-000

$8.56

25

NUT (6X19)

90282-MAT-000

$3.70

26

CLAMP, CLUTCH HOSE

90650-MAT-000

$3.33

27

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

28

STRAP, CABLE (118MM) (BLACK)

90672-SA0-003

$6.24

29

CLIP, HARNESS BAND (15)

90690-GHB-601

$2.26

30

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.18

30

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

31

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

32

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.18

33

CLIP, CABLE

91404-MAT-E00

$5.54

34

CLAMP, FUEL VENT PIPE

91594-SV4-003

$2.02

35

SCREW, TAPPING (4X12)

93903-24380

$1.49

36

SCREW, TAPPING (4X25)

93903-24680

Unavailable

37

NUT, FLANGE (6MM)

94050-06080

$1.49

38

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

39

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

40

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

41

FUSE, MINI (10A)

98200-41000

$1.49

42

FUSE, MINI (20A)

98200-42000

$1.49

43

RELAY ASSY., STARTER

38500-GC7-612

$50.16
