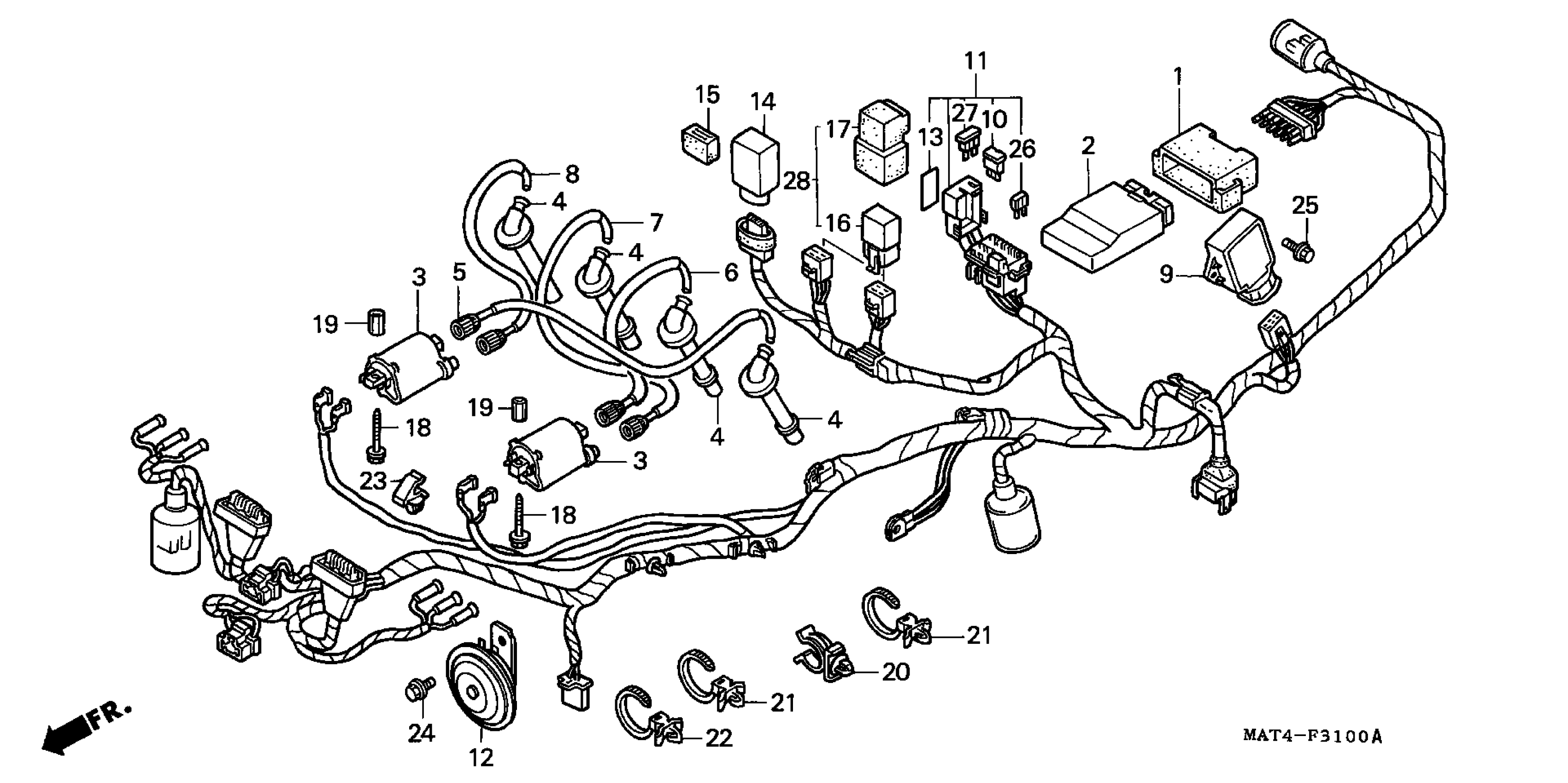

Honda CBR1100XXA (98) MOTORCYCLE, JPN, VIN# JH2SC350-WM100001 TO JH2SC350-WM101089 WIRE HARNESS 97-98 Diagram

CUSHION, SPARK UNIT

30405-MT6-000

Unavailable

MODULE, IGNITION CONTROL (CDI)

30410-MAT-671

Unavailable

COIL, IGNITION (TEC)

30510-MM8-003

$112.08

CAP ASSY., NOISE SUPPRESSOR

30700-MW4-000

Unavailable

WIRE, IGNITION (1)

30731-MAT-000

$26.89

WIRE, IGNITION (2)

30732-MAT-000

$23.03

WIRE, IGNITION (3)

30733-MAT-000

$25.90

WIRE, IGNITION (4)

30734-MAT-000

$23.03

RECTIFIER ASSY., REGULATE

31600-MY7-305

Unavailable

RECTIFIER ASSY., REGULATOR This part replaces 31600-MY7-600.

31600-MY7-305

Unavailable

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS (NOT AVAILABLE)

32100-MAT-670

Unavailable

HORN (HIGH) (NOT AVAILABLE)

38110-KW3-008

Unavailable

LABEL, FUSE (NOT AVAILABLE)

38215-MAT-610

Unavailable

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

RELAY, STARTER (MITSUBA)

38501-GN2-014

$49.65

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.49

BOLT, POWER STEERING PUMP ADJUSTING

90091-P0A-000

$8.56

NUT (6X19)

90282-MAT-000

$3.70

CLAMP, CLUTCH HOSE

90650-MAT-000

$3.33

STRAP, CABLE (118MM) (BLACK)

90672-SA0-003

$6.24

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.18

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

CLAMP, FUEL VENT PIPE

91594-SV4-003

$2.02

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

RELAY ASSY., STARTER

38500-GC7-612

$50.16
