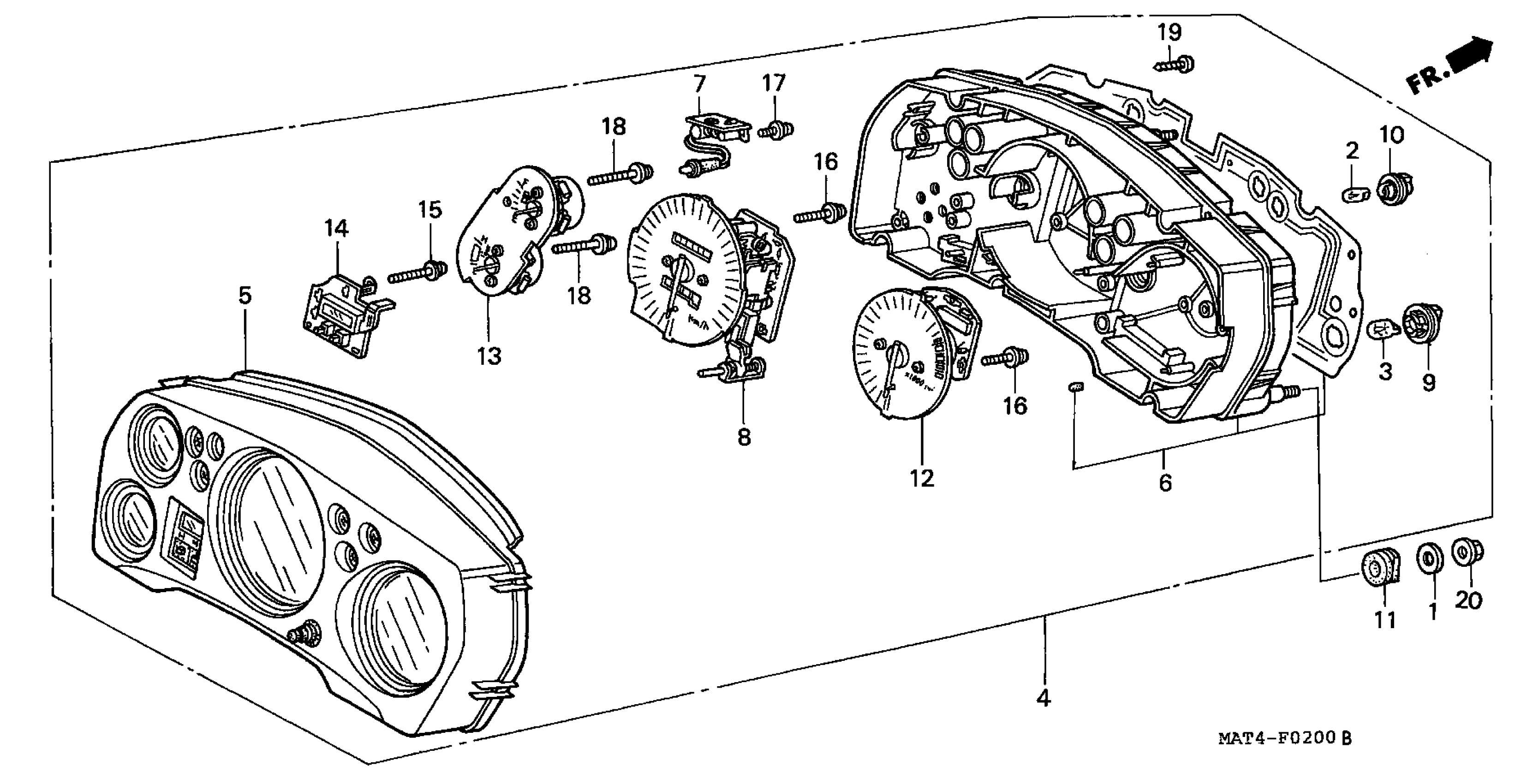

Honda CBR1100XXA (98) MOTORCYCLE, JPN, VIN# JH2SC350-WM100001 TO JH2SC350-WM101089 SPEEDOMETER 97-00 Diagram

WASHER, PIVOT

17936-921-000

$1.49

BULB, WEDGE BASE (T6.5) (12V 3W)

34908-KM1-671

$7.08

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

METER ASSY., COMBINATION

37100-MAT-671

Unavailable

CASE ASSY. (UPPER) (NOT AVAILABLE)

37102-MAT-671

Unavailable

CASE ASSY. (LOWER) (NOT AVAILABLE)

37103-MAT-611

Unavailable

INDICATOR, LED (NOT AVAILABLE)

37104-MAT-611

Unavailable

SPEEDOMETER ASSY. (MPH/KPH) (NOT AVAILABLE)

37200-MAT-671

Unavailable

SOCKET ASSY. (NOT AVAILABLE)

37205-MZ7-008

Unavailable

SOCKET ASSY. (NOT AVAILABLE)

37206-MAT-003

$7.85

RUBBER, METER CUSHION

37215-MA6-008

$2.97

TACHOMETER ASSY. (RPM) (NOT AVAILABLE)

37250-MAT-671

Unavailable

METER ASSY., FUEL & TEMPERATURE (NOT AVAILABLE)

37430-MAT-611

Unavailable

CLOCK ASSY. (NOT AVAILABLE)

37460-MAT-611

Unavailable

SCREW-WASHER, SPECIAL (3X22) (NOT AVAILABLE)

90132-MAT-003

Unavailable

SCREW-WASHER (3X18)

90133-SL9-003

$8.67

SCREW-WASHER (3X10) (NS)

90134-SH3-003

$3.57

SCREW-WASHER, SPECIAL (3X22) (NOT AVAILABLE)

90135-MAT-003

Unavailable

SCREW, TAPPING (4X16) (PO)

93913-24420

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49
