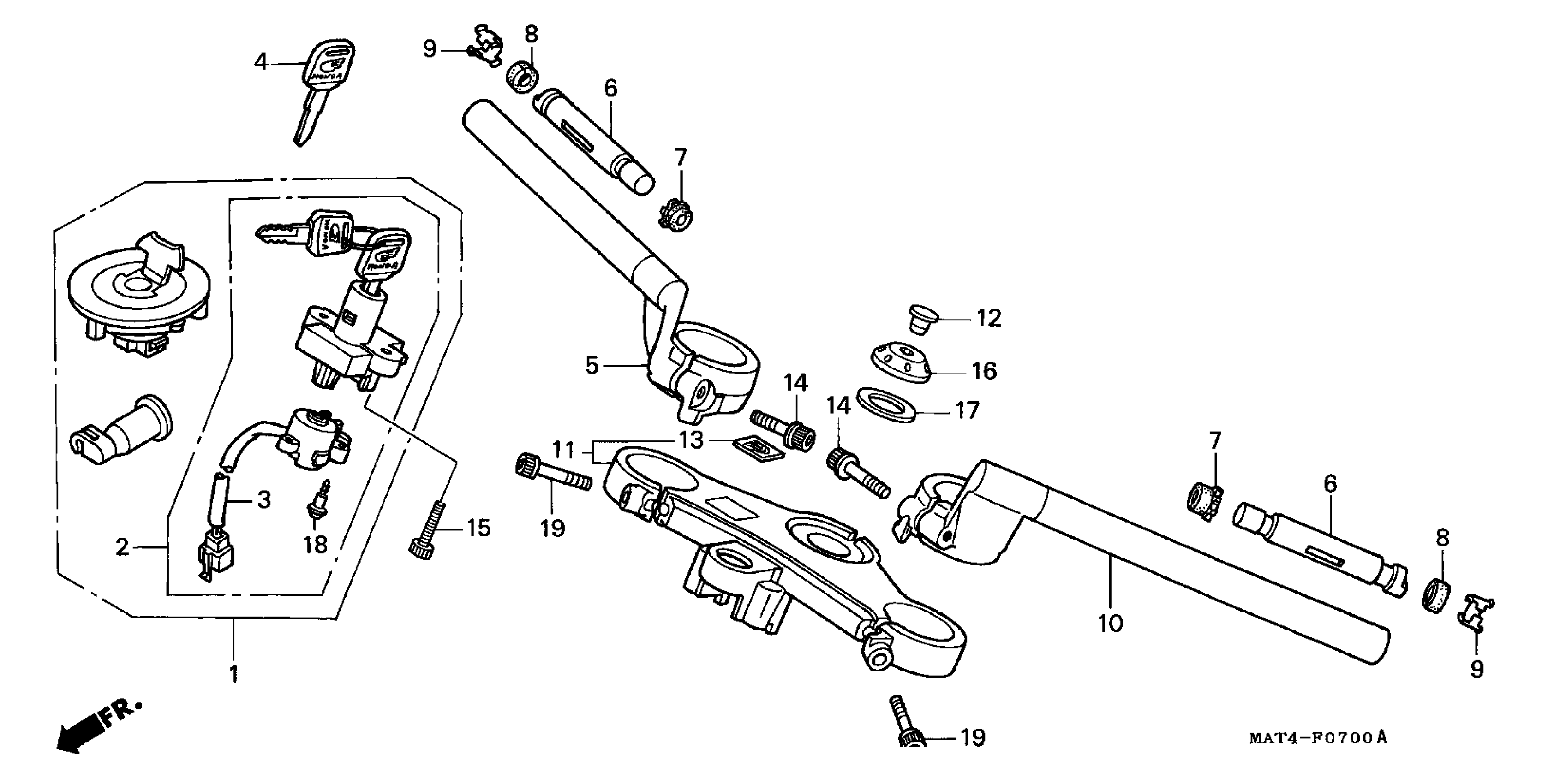

Honda CBR1100XXA (98) MOTORCYCLE, JPN, VIN# JH2SC350-WM100001 TO JH2SC350-WM101089 HANDLEBAR + TOP BRIDGE 97-98 Diagram

LOCK SET This part replaces 06350-MAT-505.

06350-MAT-515

Unavailable

LOCK SET

06350-MAT-515

Unavailable

LOCK SET This part replaces 35010-MAT-611.

06350-MAT-515

Unavailable

LOCK SET This part replaces 35010-MAT-670.

06350-MAT-515

Unavailable

LOCK SET This part replaces 35010-MAT-671.

06350-MAT-515

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35012-MAT-505

Unavailable

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MAT-611.

35012-MAT-505

Unavailable

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MAT-671.

35012-MAT-505

Unavailable

BASE, CONTACT

35101-MAT-610

Unavailable

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$9.08

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$9.08

HANDLEBAR, R.

53100-MAT-000

Unavailable

WEIGHT B, HANDLEBAR

53105-KV3-000

$15.52

RUBBER A, HANDLE WEIGHT

53106-KT7-000

$3.95

RUBBER B, HANDLE WEIGHT

53107-MB6-630

$3.66

RUBBER A, HANDLE WEIGHT

53106-KT7-000

$3.95

RUBBER B, HANDLE WEIGHT

53107-MB6-630

$3.66

RING, HANDLE WEIGHT SNAP

53108-MAT-000

$6.24

HANDLEBAR, L. (NOT AVAILABLE)

53150-MAT-000

Unavailable

BRIDGE, FORK TOP

53300-MAT-000

Unavailable

CAP, RR. CARRIER

81212-GF4-000

$4.14

EMBLEM, WING MARK

86150-MN8-300

Unavailable

BOLT, FLANGE SOCKET (8X35)

90063-MK4-000

$4.68

BOLT, SOCKET (8X25)

90100-KAE-000

$3.48

NUT, STEERING STEM

90304-MAT-003

Unavailable

WASHER, STEERING STEM

90503-283-000

$4.07

SCREW, TAPPING (3X16)

91059-KY2-711

$2.80

BOLT, SOCKET (8X40)

96600-08040-07

Unavailable
