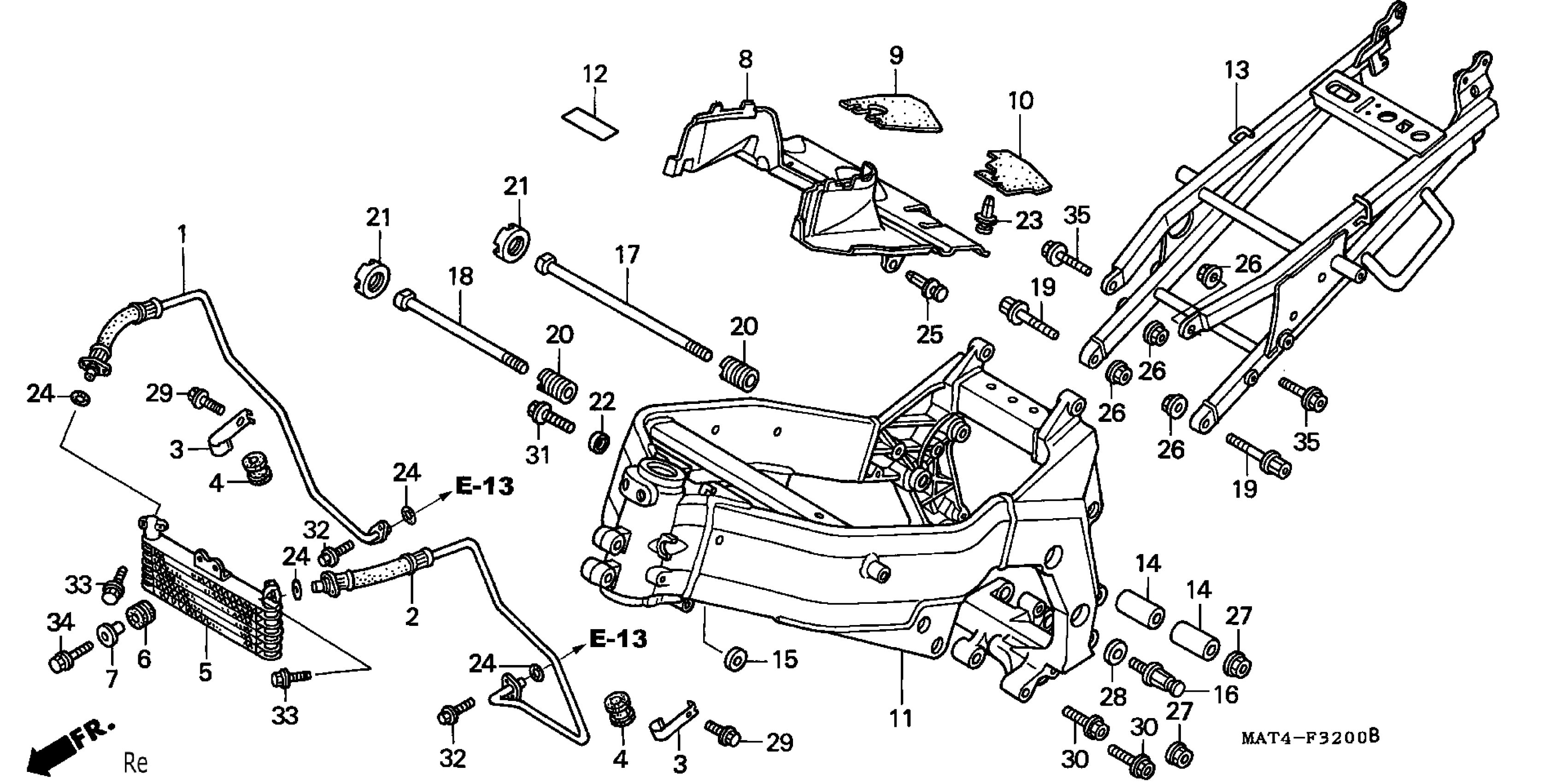

Honda CBR1100XXA (98) MOTORCYCLE, JPN, VIN# JH2SC350-WM100001 TO JH2SC350-WM101089 FRAME 97-98 Diagram

PIPE, R. OIL HOSE (NOT AVAILABLE)

15510-MAT-000

Unavailable

PIPE, L. OIL HOSE (NOT AVAILABLE)

15515-MAT-000

Unavailable

CLAMP, OIL PIPE

15520-MAT-000

$5.25

RUBBER, OIL PIPE CUSHION

15521-MA6-000

$3.70

COOLER, OIL (NOT AVAILABLE)

15600-MAT-003

Unavailable

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

GUARD, HEAT

19105-MAT-000

Unavailable

GUARD PLATE, A.

19106-MAT-000

Unavailable

GUARD PLATE, B.

19108-MAT-000

Unavailable

FRAME *NH377M* (CORE BLACK METALLIC)

50100-MAT-000ZB

Unavailable

FILM, FRAME PIPE (UPPER)

50159-KR3-300

$4.16

RAIL, SEAT

50240-MAT-000

Unavailable

COLLAR, RR. ENGINE HANGER (UPPER)

50357-MAT-000

$11.98

COLLAR, FR. ENGINE HANGER (UPPER)

50358-MW0-000

Unavailable

HOOK, MAIN STAND SPRING

50538-MAT-000

Unavailable

BOLT, SPECIAL (12X312)

90104-MAT-000

$36.34

BOLT, SPECIAL (12X254)

90105-MAT-000

$33.31

BOLT, SPECIAL (10X47)

90110-MAT-000

$9.80

BOLT B, RR. ENGINE HANGER (LOWER)

90119-MR8-000

$25.10

NUT, LOCK (22X2.0)

90310-MR7-000

$26.75

WASHER, PLAIN (10MM)

90502-MM8-610

$2.92

CLIP, BODY COVER

90683-GR1-003

$2.92

O-RING (10X2.6) (ARAI)

91314-ME5-003

$3.54

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

NUT, FLANGE (10MM)

90303-428-900

$3.35

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

NUT, FLANGE (12MM)

94050-12000

$1.49

WASHER, PLAIN (8MM)

94102-08700

$1.49

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (10X45)

95701-10045-07

Unavailable

BOLT, FLANGE (10X50)

95701-10050-07

$1.85

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

BOLT, FLANGE (10X32)

96400-10032-07

Unavailable
